51

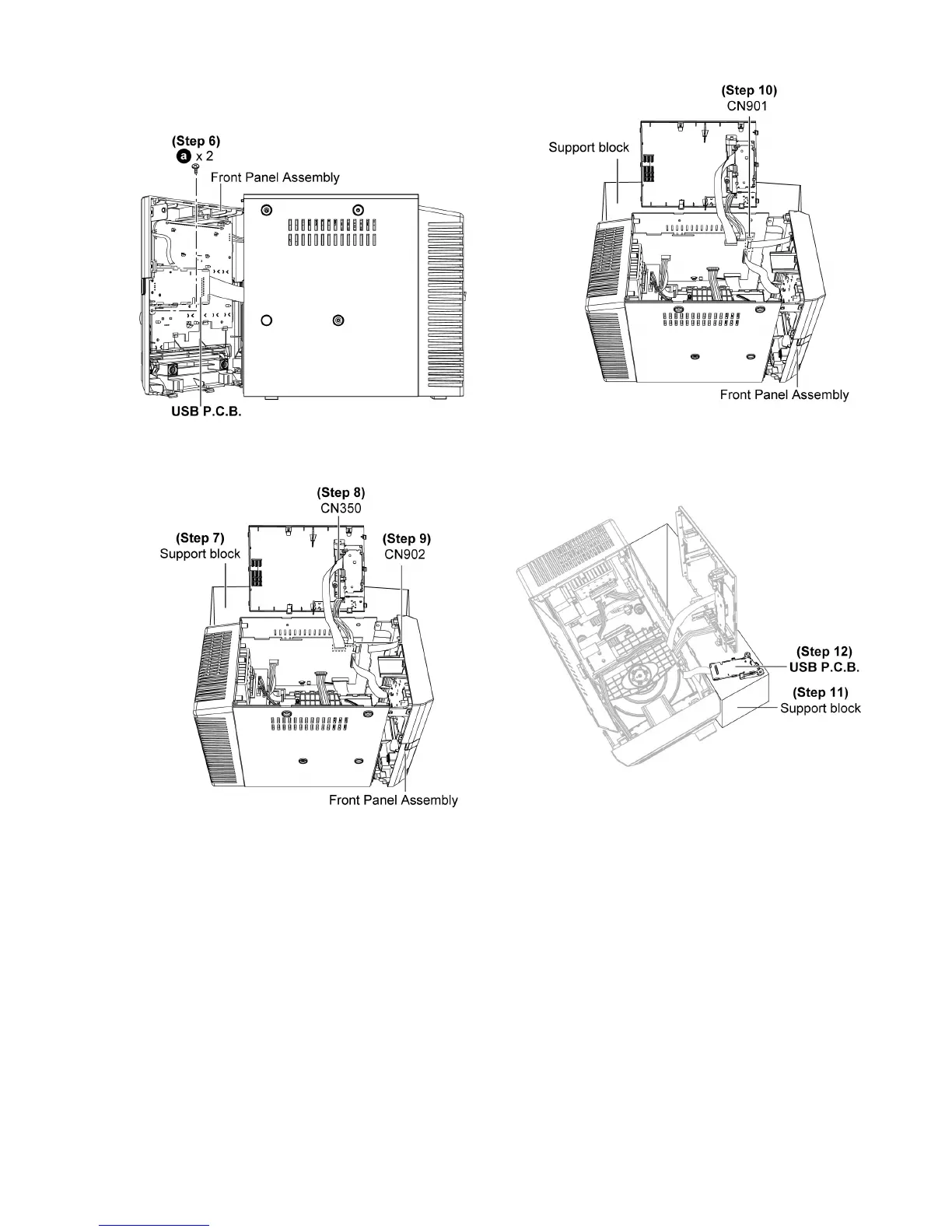

Step 4 : Release 3 Catches.
Step 5 : Slightly remove Front Panel Assembly.
Step 6 : Remove 2 screws.
Step 7 : Place a support block underneath the Top Cabinet
Assembly.
Step 8 : Connect 14P FFC at connector (CN350) on Main
P.C .B. .
Step 9 : Connect 5P cable at connector (CN902) on Main
P.C .B. .
Step 10 : Connect 11P FFC at connector (CN901) on Main
P. C .B . .
Step 11 : Place a support block underneath the USB P.C.B..
Step 12 : Check & repair USB P.C.B. according to the diagram
shown.
