10.10. Disassembly of FL Window
• Follow the (Step 1) - (Step 9) of item 10.3.
• Follow the (Step 1) - (Step 6) of item 10.7.
• Follow the (Step 1) - (Step 3) of item 10.8.
• Follow the (Step 1) - (Step 4) of item 10.9.

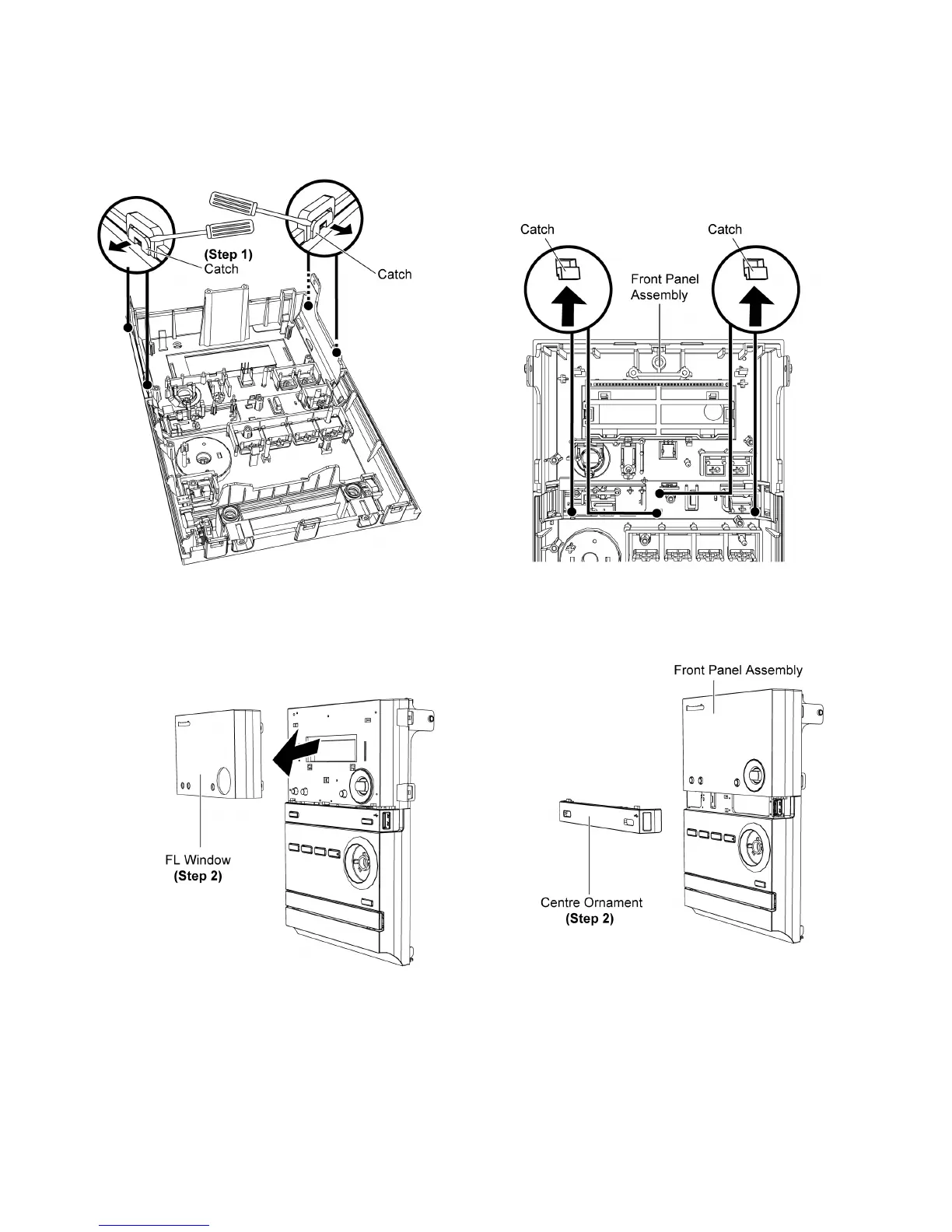

Step 1 : Release all catches by pushing the edge of the
catches as arrows shown.
Caution : Do not apply strong force in releasing the
catches to avoid damage to the Front Panel Assembly & FL
Window.
Step 2 : Remove FL Window.
10.11. Disassembly of Centre Orna-
ment
• Follow the (Step 1) - (Step 9) of item 10.3.
• Follow the (Step 1) - (Step 6) of item 10.7.
• Follow the (Step 1) - (Step 3) of item 10.8.
• Follow the (Step 1) - (Step 4) of item 10.9.
• Follow the (Step 1) - (Step 2) of item 10.10.
Step 1 : Release 4 catches as arrows shown.
Caution : During assembly ensure that centre ornament
are properly catched to the Front Panel Assembly.
Step 2 : Remove Centre Ornament.
