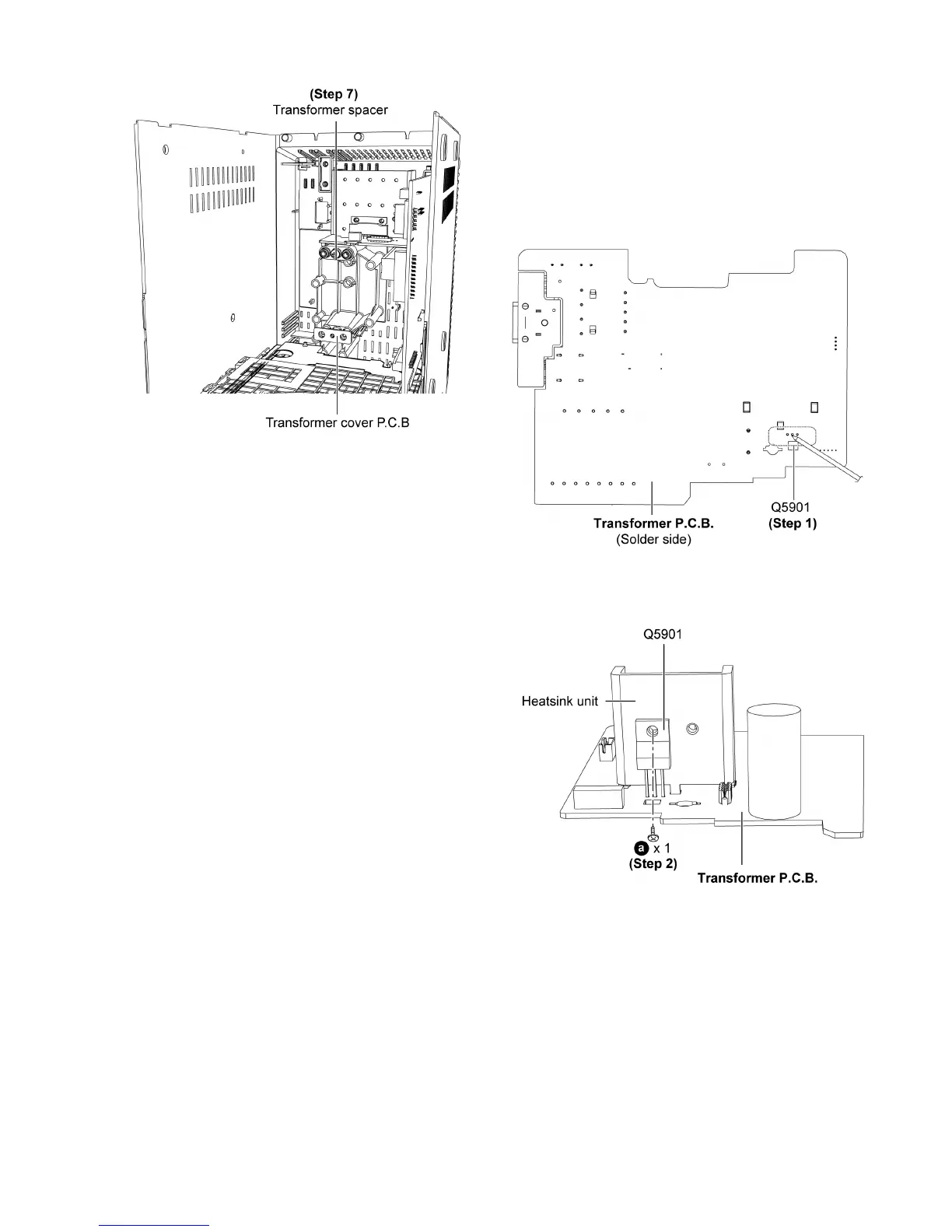

Step 7 : Remove Transformer cover P.C.B. and Trans spacer.
Caution : Keep them in safe place for assembling use.
10.19. Replacement of Transistor
(Q5901)
• Follow the (Step 1) - (Step 9) of item 10.3.
• Follow the (Step 1) - (Step 6) of item 10.7.
• Follow the (Step 1) - (Step 6) of item 10.18.
Caution : Handle the heatsink unit and P.C.B. with caution
due to its high temperature after prolonged use. Touching
it may lead to injuries .
Step 1 : Desolder pins of Transistor (Q5901).
Step 2 : Remove 1 screw.
To Next Page
