Panasonic SA-PM38DBEB - iPod PCB Disassembly; DAB Unit PCB Disassembly

28

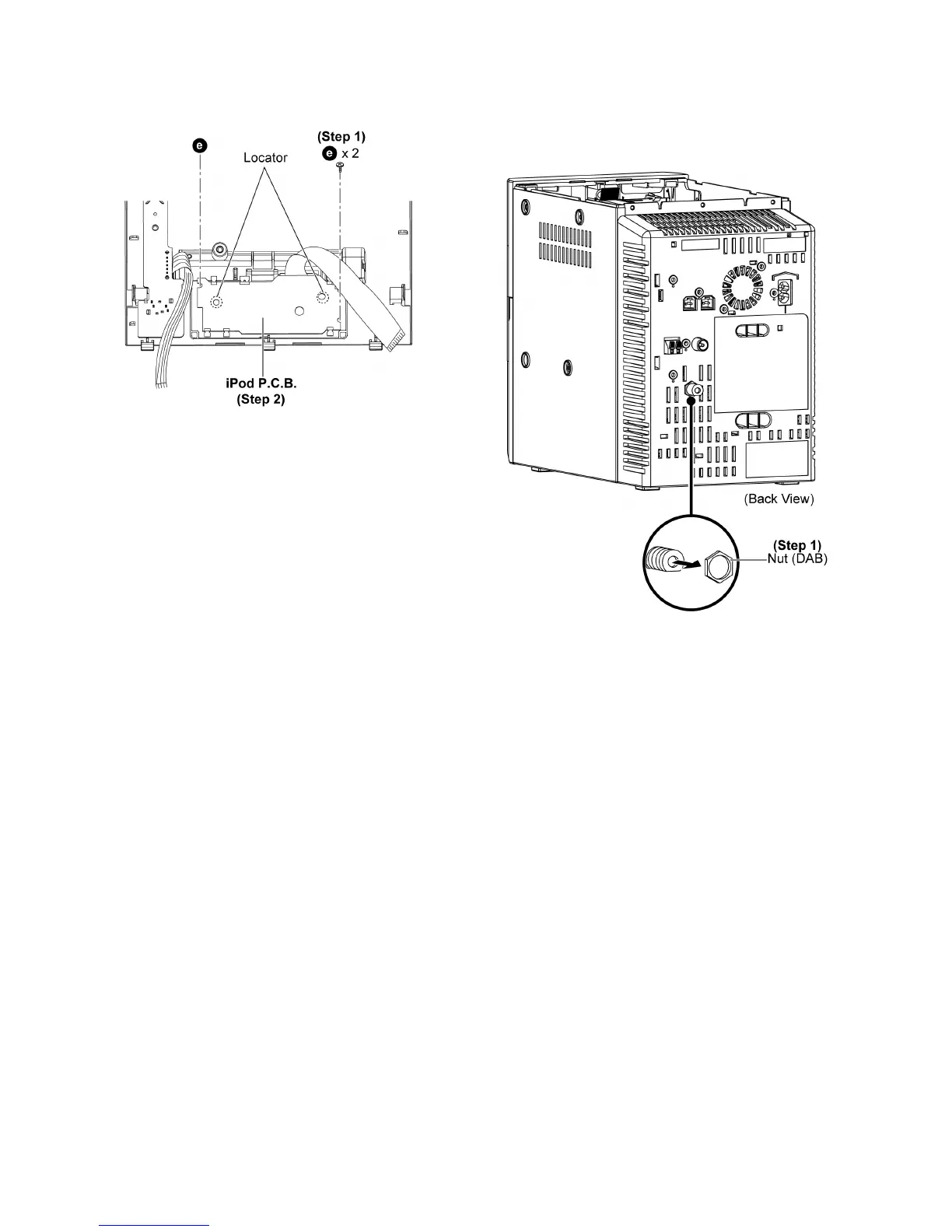

10.5. Disassembly of iPod P.C.B.
• Follow the (Step 1) - (Step 9) of item 10.3.
Step 1 : Remove 2 screws.
Step 2 : Remove iPod P.C.B..
Caution : Ensure the iPod P.C.B. is seated properly on the
locator after assembled.
10.6. Disassembly of DAB Unit
P. C .B .
• Follow the (Step 1) - (Step 9) of item 10.3.
Step 1 : Remove the nut (DAB).
Caution : During reassembling, ensure Nut (DAB) is fully
tighen to the rear cabinet assembly.
