Panasonic SA-PM38DBEB

To Next Page

To Previous Page

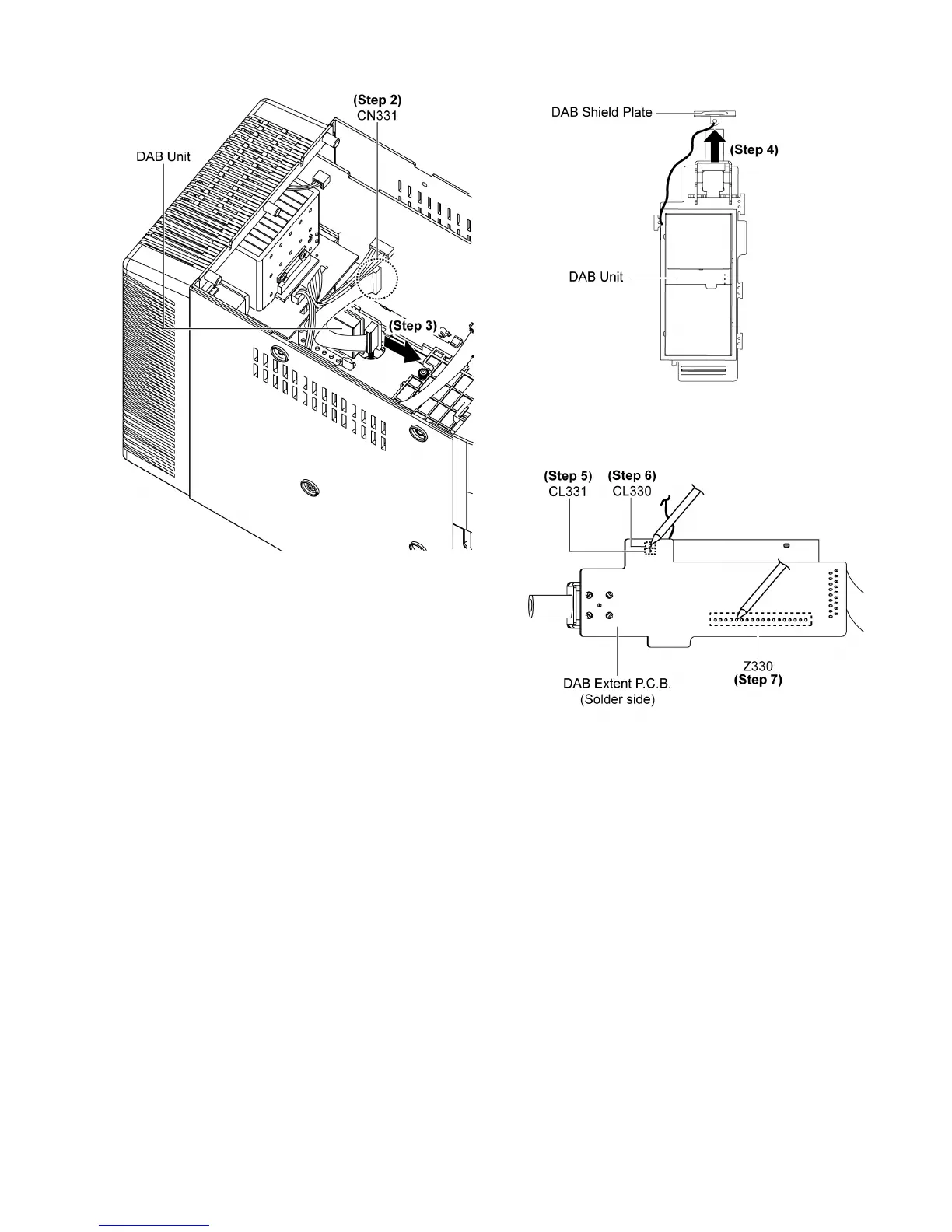

Step 2 : Detach 18P FFC at the connector (CN331) on Main

P.C .B. .

Step 3 : Remove DAB Unit as arrow shown.

• Disassembly of DAB Extent P.C.B.

Step 4 : Remove DAB Shield Plate as arrow shown.

Step 5 : Desolder point of (CL331).

Step 6 : Desolder point of (CL330).

Step 7 : Desolder points of (Z330).
