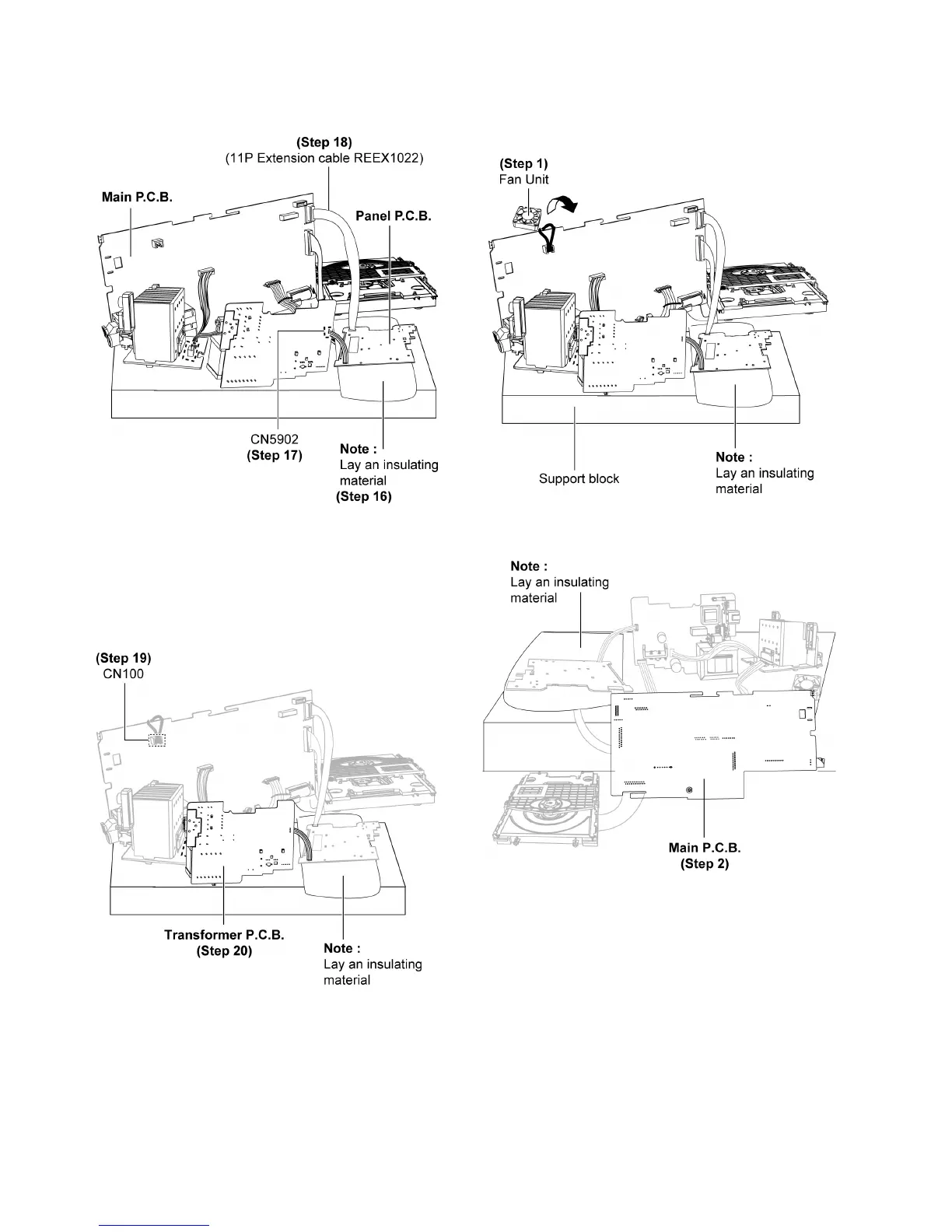

Step 15 : Connect 7P cable at connector (CN5903) on Trans-
former P.C.B..
Step 16 : Place on insulating material under Panel P.C.B..
Step 17 : Connect 4P cable at connector (CN5902) on Trans-
former P.C.B..
Step 18 : Attach extension cable REEX1022 (11P FFC from
CN901 on Main P.C.B. to CN900 on Panel P.C.B.).
Step 19 : Connect 2P cable (Fan Unit) at connector (CN100)
on Main P.C.B..
Step 20 : Check & repair Transformer P.C.B. according to the
diagram shown.
12.7. Checking & Repairing Main
P. C .B .
• Follow (Step 1 - Step 19) of item 12.6.
Step 1 : Flip over Fan Unit.
Step 2 : Check & repair Main P.C.B. according to the diagram
shown.
