10.7. Disassembly of Front Panel
Assembly

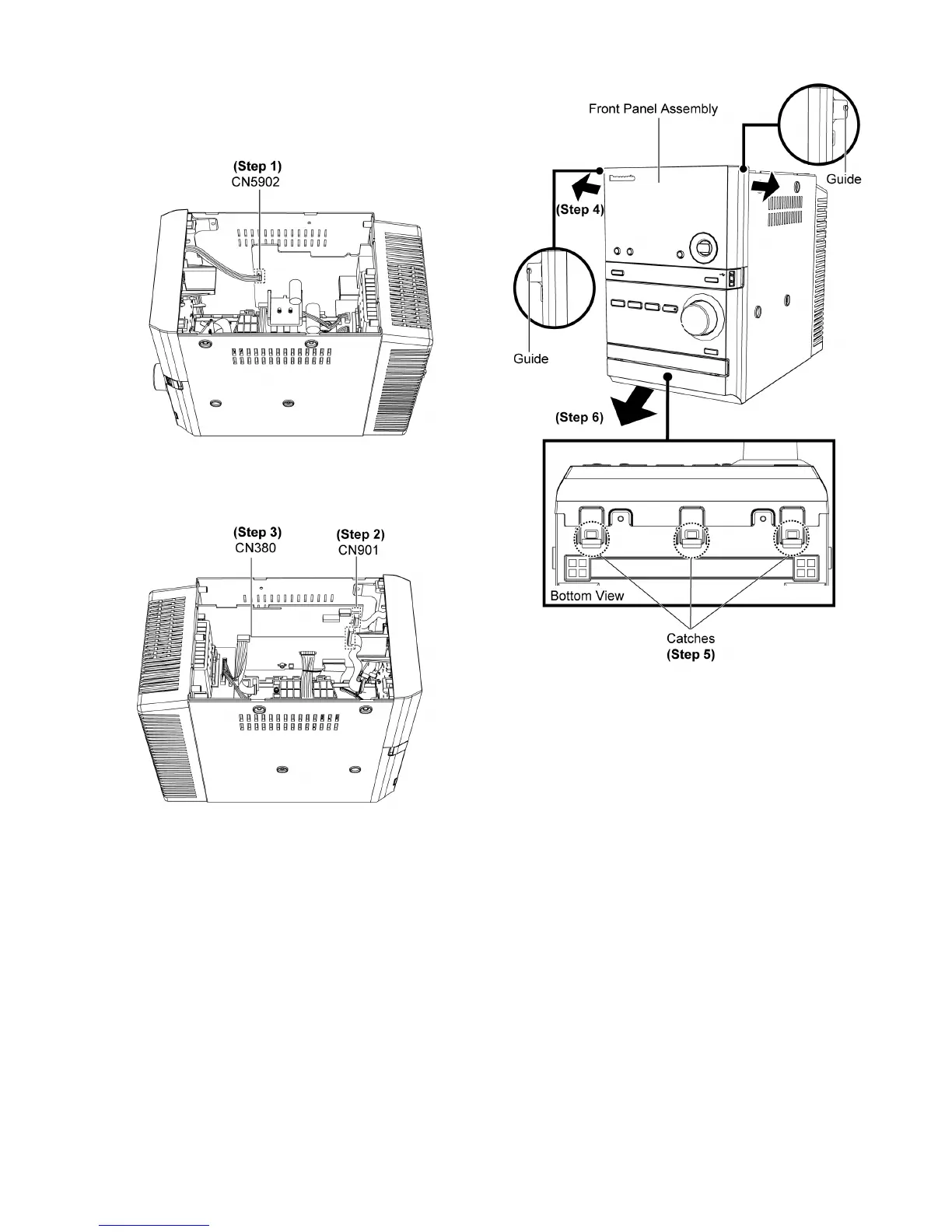

• Follow the (Step 1) - (Step 9) of item 10.3.
Step 1 : Detach 4P cable at connector (CN5902) on Trans-
former P.C.B..
Step 2 : Detach 11P FFC at connector (CN901) on Main
P.C .B. .
Step 3 : Detach 22P FFC at connector (CN380) on Main
P.C .B. .
Step 4 : Release both guides.
Step 5 : Release 3 Catches from the bottom.
Step 6 : Remove the Front Panel Assembly.
Caution : Do not attempt to exert strong force when
detaching the front panel assembly.
