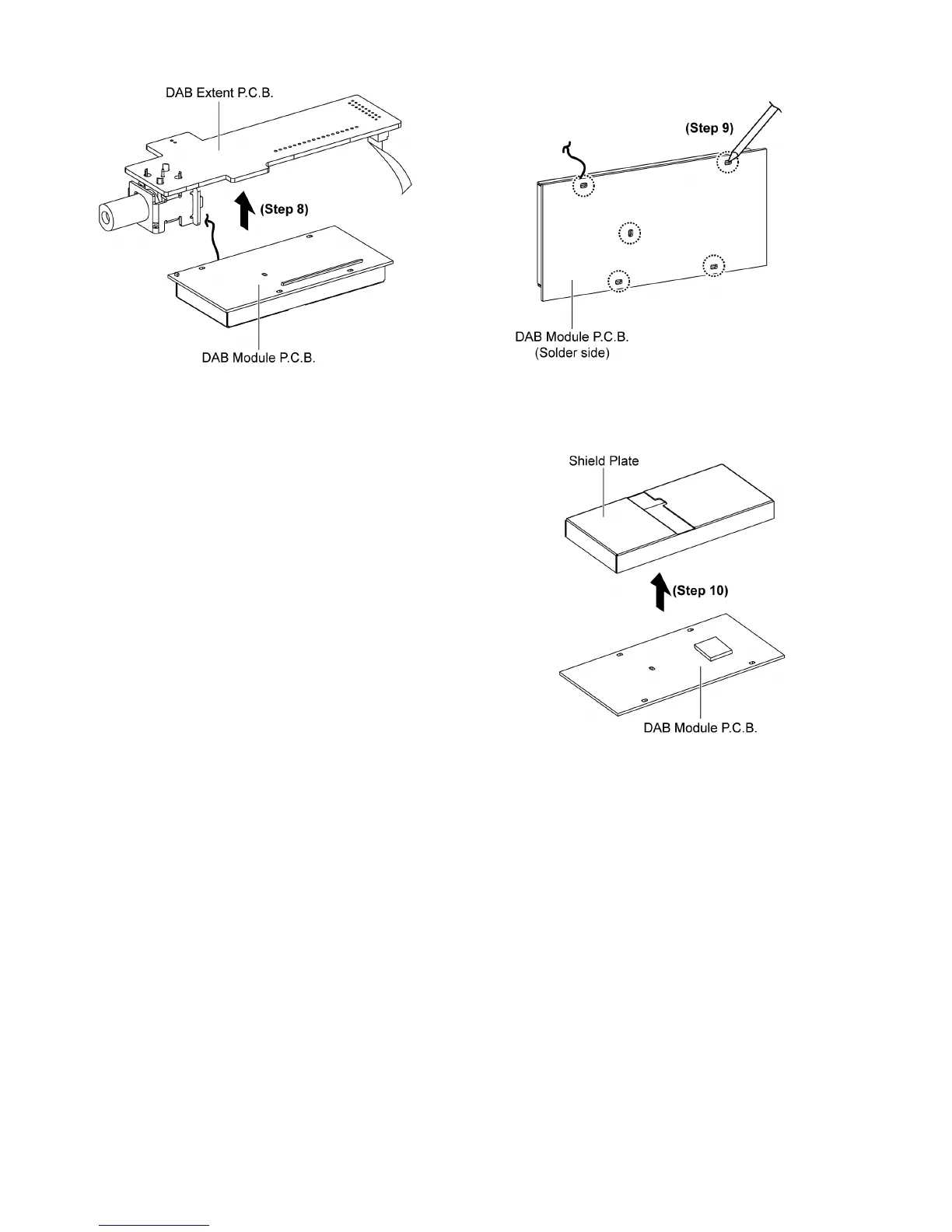

Step 8 : Remove DAB Extent P.C.B. as arrow shown.

• Disassembly of DAB Module P.C.B.

Step 9 : Desolder pins of Shield Plate.

Step 10 : Remove shield plate from DAB Module P.C.B. as

arrow shown.
