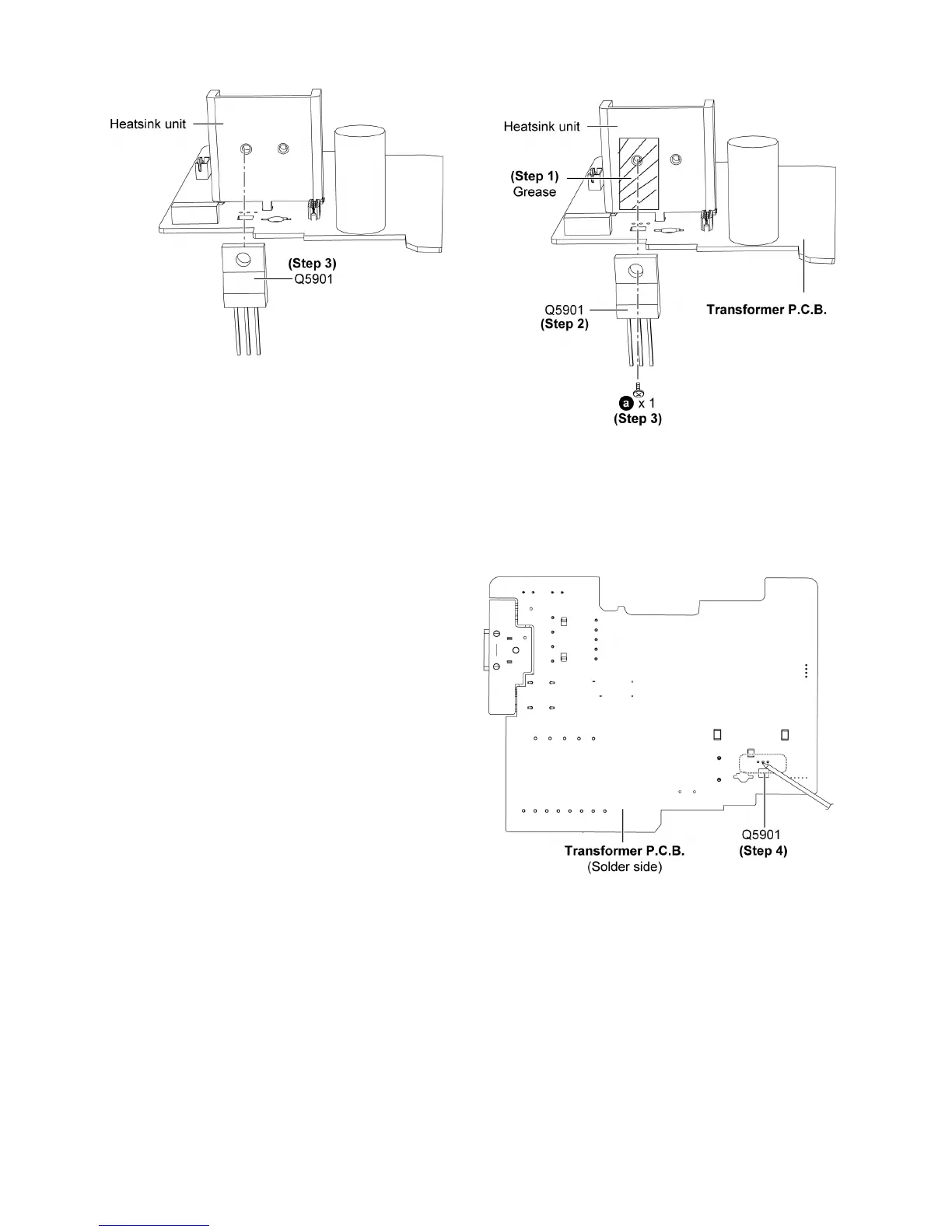

Step 3 : Remove Transistor (Q5901).
• Assembly of Transistor (Q5901)
Step 1 : Apply grease to the heatsink unit.
Step 2 : Install Transistor (Q5901) onto Transformer P.C.B..
Caution : Ensure the pins are inserted & seated properly
on Transformer P.C.B..
Step 3 : Fix the Transistor (Q5901) onto the heatsink unit with 1
screw.
Step 4 : Solder pin of the Transistor (Q5901) on the solder side
of Main P.C.B..
Caution : Check for solderability of the Transistor (Q5901).
