Panasonic SA-PM38DBEB - Mechanical Replacement Parts List (Continued)

91

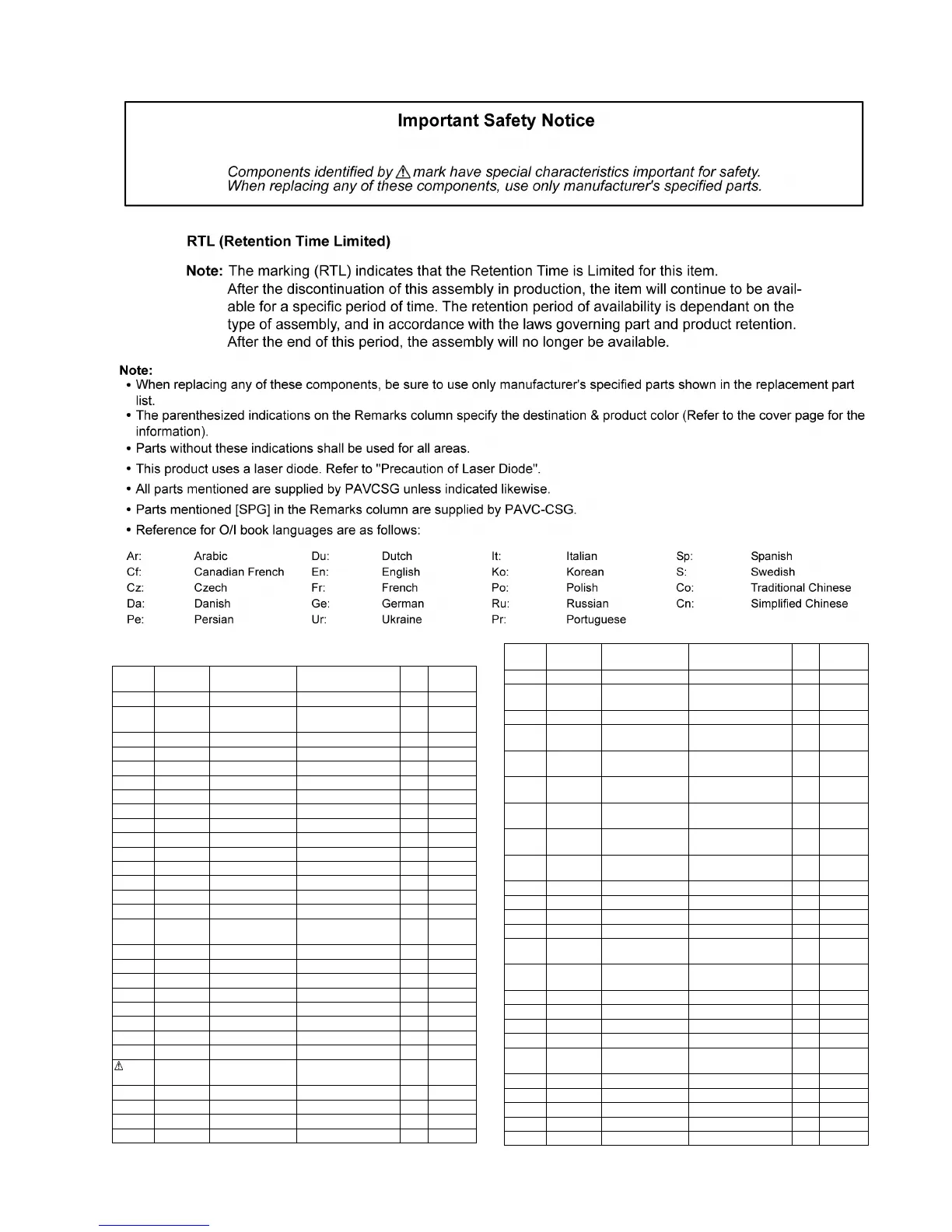

22.1.3. Mechanical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
CABINET AND
CHASSIS
1 J3CBBC000002 TUNER PACK 1
2 REEX0945 22P FFC (CD-MN) 1
3 REEX0947 22P FFC (USB-MN) 1
4 RGBV0016-S PANASONIC BADGE 1
5 RGKX0513F-H FL WINDOW 1
6 RGKX0514-K CD LID 1
7 RGKX0515-S CENTER ORNAMENT 1
8 RGKX0523-S VOLUME RING 1
9 RGPX0370M-K FRONT PANEL 1
10 RGUX0800B-K FUNCTION BUTTON 1
11 RGUX0801-K CD EJECT BUTTON 1
12 RGUX0802-S POWER BUTTON 1
13 RGUX0808-K DBASS/BASS TRE-
BLE BUTTON
1
14 RGUX0804-K FF/REW BUTTON 1
15 RGUX0805-S STOP BUTTON 1
16 RGWV0047-1S VOLUME KNOB 1
17 RHD26046-L SCREW 9
18 RHDC0023 SCREW 4
19 RHDX03001 SCREW 2
20 RKAX0042-K LEG CUSHION 4
21 RKMX0149A-K TOP CABINET 1
22 RFKHAPM38DBE REAR CABINET
ASS’Y
1
23 RMBX0088 CD LID SPRING 1
24 RMG0547-K CUSHION 3
26 RMNX0304 USB HOLDER 1
27 RMNV0062A FL HOLDER 1
28 RMQX0353 HEATSINK SUPPORT 2
29 RMQX0354 TRANS PCB SUP-
PORT
1
30 RMQX0355 MAIN PCB SUPPORT 1
31 RMQX0359 TRANSFORMER
SPACER
1
32 RWJ0204130XX 4P WIRE (TRANS-
FORMER-POWER)
1
33 RWJ1104135XX 4P WIRE (PANEL-
TRANSFORMER)
1
34 RWJ1106090XX 6P WIRE (POWER-
MAIN)
1
35 RWJ1107125XX 7P WIRE (MAIN-
TRANSFORMER)
1
36 RWJ1105145XX 5P WIRE (HEAD-
PHONE-MAIN)
1
37 XTB3+10JFJ SCREW 15
38 XTW3+10SFJK SCREW 6
39 VHD1224-1 SCREW 2
40 L6FAYYYH0088 FAN UNIT 1
41 REEX0948 11P FFC (PANEL-
MAIN)
1
42 REEX0963 14P FFC (iPod-
MAIN)
1
47 RGKX0516-K iPod LID 1
52 RMB0823 SD LID SPRING 1
53 RMGX0033 CUSHION RUBBER 2
55 RMVX0125 iPod COVER LID 1
56 REEX0949 18P FFC WIRE
(DAB-MAIN)
1
57 RSC0815 DAB SHIELD CASE 1
58 RSCV0093 DAB SHIELD PLATE 1
59 RHN95002 NUT (DAB) 1
60 RMAV0039 SUPPORT A 1
61 RMAV0040 SUPPORT B 1
Safety Ref. No. Part No. Part Name &
Description
Qty Remarks
