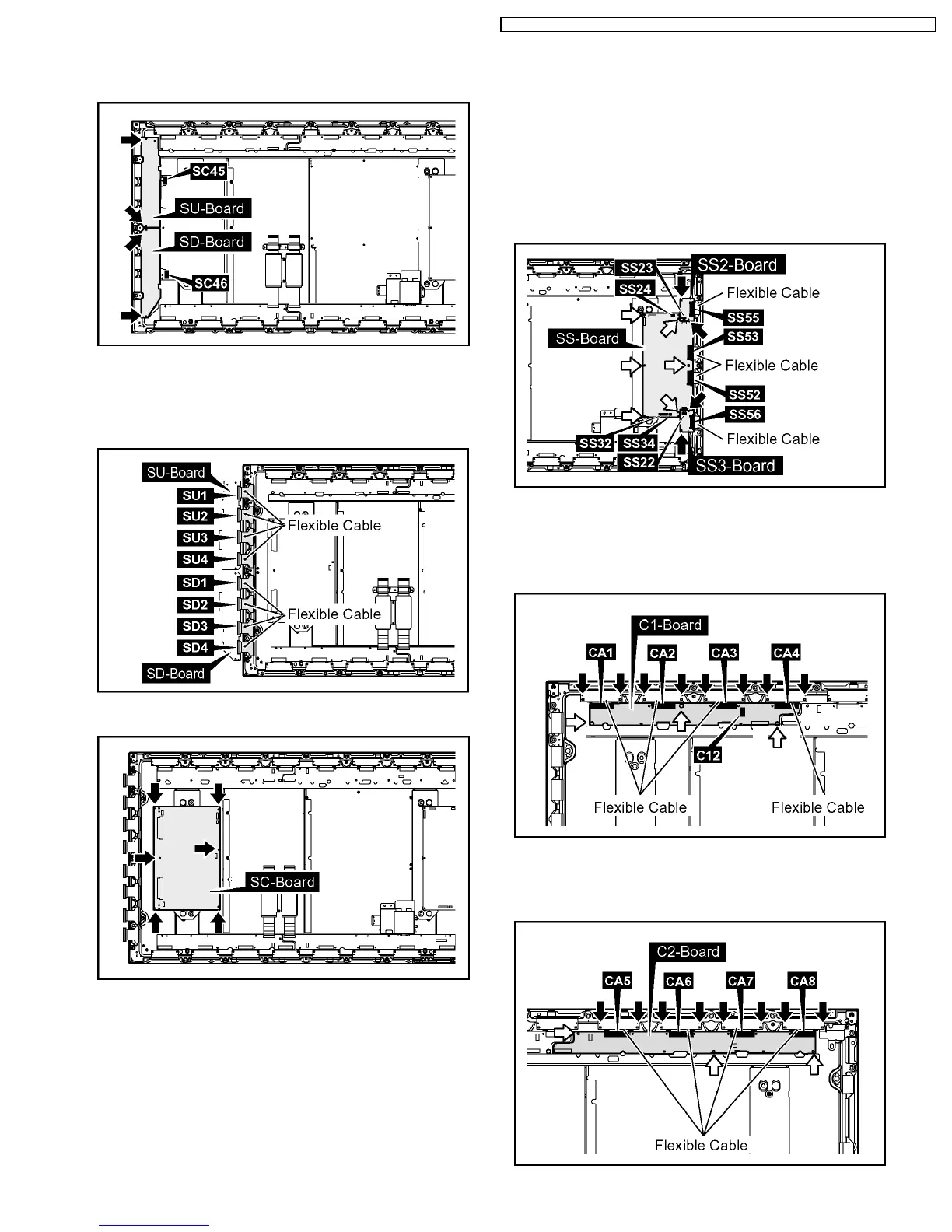

15. Disconnect the couplers(SC45, SC46).
16. Remove the each 2 screws and then slide the SU-Board
and the SD-Board to the left.
17. Remove the Flexible Cable from the couplers(SU1, SU2,
SU3, SU4) and then remove the SU-Board.
18. Remove the Flexible Cable from the couplers(SD1, SD2,
SD3, SD4) and then remove the SD-Board.
19. Remove the 6 screws and then remove the SC-Board.
20. Disconnect the coupler(SS23).
21. Remove the Flexible Cable from the coupler(SS55).
22. Remove the 2 screws and then remove the SS2-Board .
23. Disconnect the coupler(SS22).
24. Remove the Flexible Cable from the coupler(SS56).
25. Remove the 2 screws and then remove the SS3-Board.
26. Disconnect the couplers(SS24, SS32, SS34).
27. Remove the Flexible Cable from the couplers(SS52, SS53).
28. Remove the 6 screws and then remove the SS-Board.
29. Disconnect the coupler(C12).
30. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CA1, CA2, CA3, CA4).
31. Remove the 3 screws and then remove the C1-Board.
32. Remove the 8 screws and then remove the Flexible Cable
from the couplers(CA5, CA6, CA7, CA8).
33. Remove the 3 screws and then remove the C2-Board.
31
