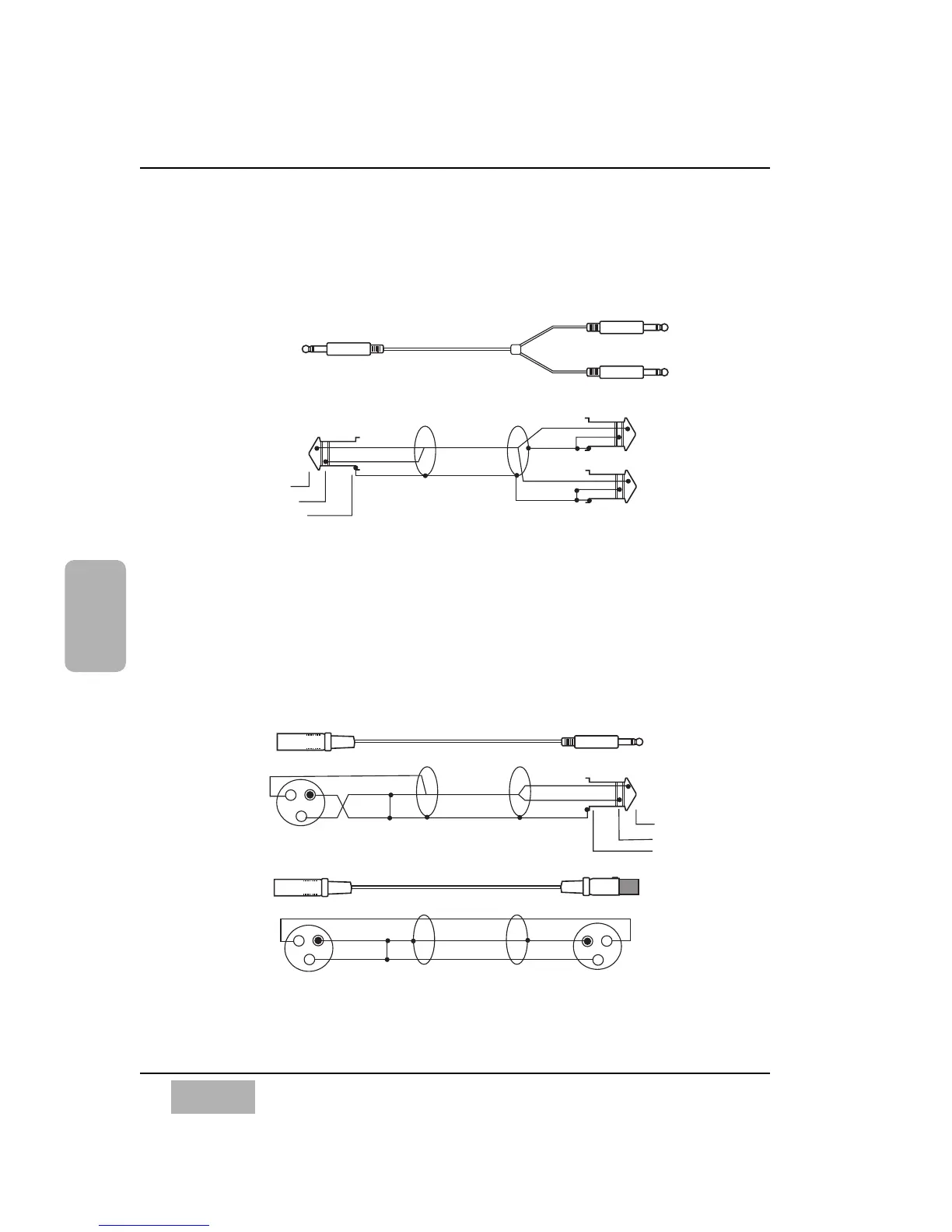

Y Cable for AUX Sends and AUX Returns
This is used to connect external analog devices with AUX SEND 3/4, 5/6 and
AUX RETURN 3/4, 5/6 connectors on the DA7’s Rear Panel.
SMPTE Option Card
This cable is used to supply the SMPTE timecode, often generated by a video
deck, to the SMPTE Option Card installed in the DA7.
Appendix E
DA7 Users’ Guide
E
-
2
E
Cables &
Connections
Even CH
GND
Odd CH
Odd CH
Even CH
GND
Tip
Ring
Sleeve
GND
Hot
Cold
GND
Hot
Cold
GND
Tip
Ring
Sleeve
12
3
Y Cable
SMPTE timecode Cable
1/4” TRS
Phone Plug
1/4” TRS
Phone Plug
1/4” TRS
Phone Plug
XLR (Male)
Odd Channel
Even Channel
AUX SEND 3/4, 5/6
and
AUX RETURN 3/4, 5/6
SMPTE IN
Hot
Cold
GND
12
3
1
2
3
Hot
Cold
GND
XLR (Male)
SMPTE IN
XLR (Female)
