Appendix E
DA7 Users’ Guide
E
-
3
E
Cables &
Connections
TANDEM Option Card
One of the Panasonic Premium Cables, part # DA/DB-DB (DB-25 to DB-25,
Length 1 meter) is recommended.

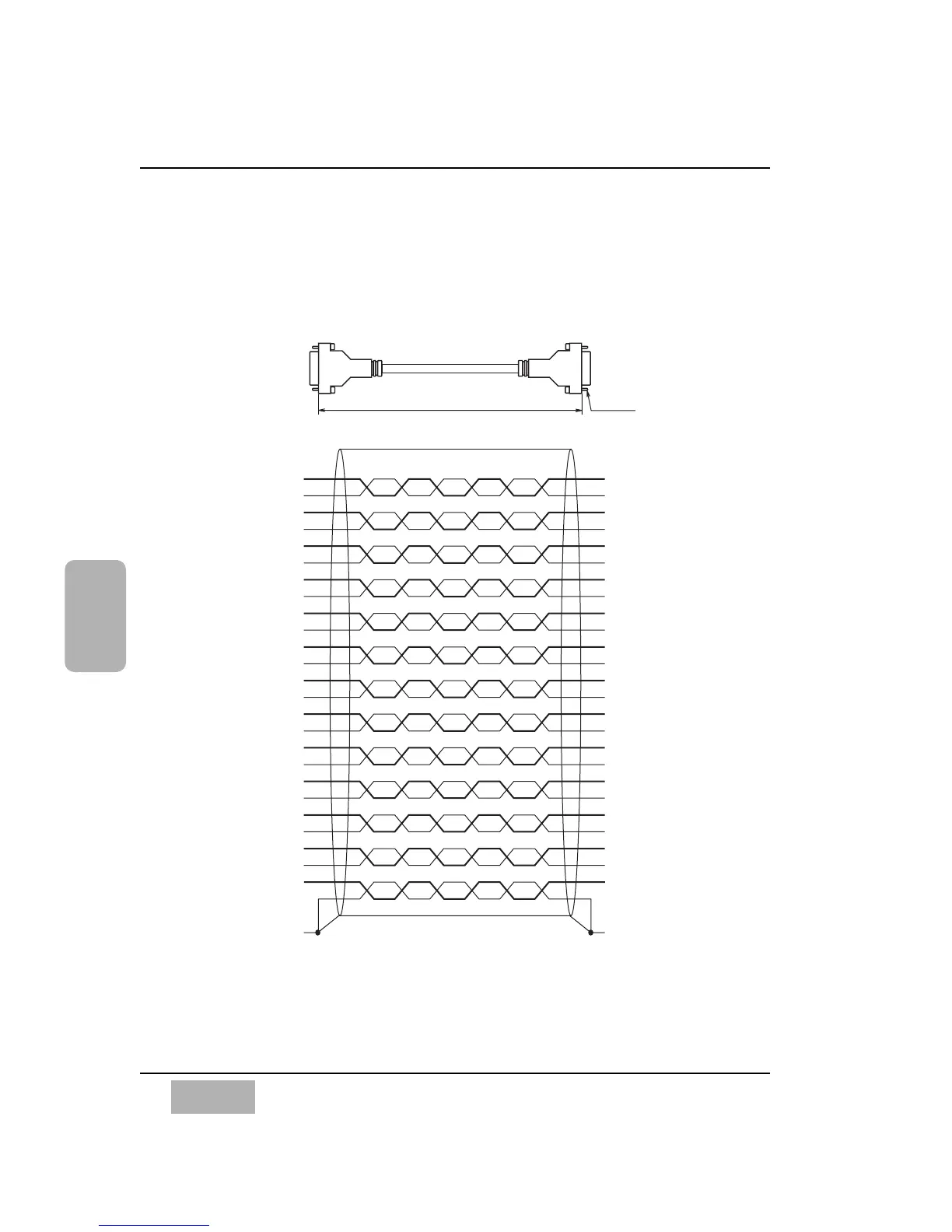

See drawings below when you build a customized cable.
Name Pin#
PWRFAILO 1
FG 2
PWRFAILI 14
FG 17
CKO - 3
CKO+ 15
256O - 4
256O+ 16
CASO3+ 5
CASO3 - 18
CASO2+ 6
CASO2 - 19
CASO1+ 7
CASO1 - 20
CKIN+ 8
CKIN - 21
256IN+ 9
256IN - 22
CASI3 - 11
CASI3+ 23
CASI2 - 12
CASI2+ 24
CASI1 - 13
CASI1+ 25
FG 10
Shell -
Pin# Name
14 PWRFAILI
2 FG
1 PWRFAILO
17 FG
21 CKIN -
8 CKIN+
22 256IN -
9 256IN+
23 CASI3+
11 CASI3 -
24 CASI2+
12 CASI2 -
25 CASI1+
13 CASI1 -
15 CKO+
3 CKO -
16 256O+
4 256O -
18 CASO3 -
5 CASO3+
19 CASO2 -
6 CASO2+
20 CASO1 -
7 CASO1+
10 FG
- Shell
TANDEM Cable
Shield
Abbreviation: I=Input, O=Output
UL2464, AWG#28, 13-Twisted Pair, Shielded
Shorter than 10 m
Fixing screw
M 2.6 mm
DB-25 (Male)
DB-25 (Male)
