Appendix E
DA7 Users’ Guide
E
-
4
E
Cables &
Connections
AES/EBU S/PDIF Option Card
Panasonic part # DA/DB-AES (DB-25 to 4 Male XLR/ 4 Female XLR, 110 Ω
Length 3 meters) is recommended for connection with AES/EBU equipment.
For S/PDIF devices, you need a breakout cable with RCA connectors on the
tail.
1
14
13
25
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
CH 7, 8
CH 5, 6
CH 3, 4
CH 1, 2
CH 7, 8
CH 5, 6
CH 3, 4
CH 1, 2
Output
Input
12
3
Hot
Cold
GND
XLR(Male)
1
2
3
Hot
Cold
GND
XLR(Female)

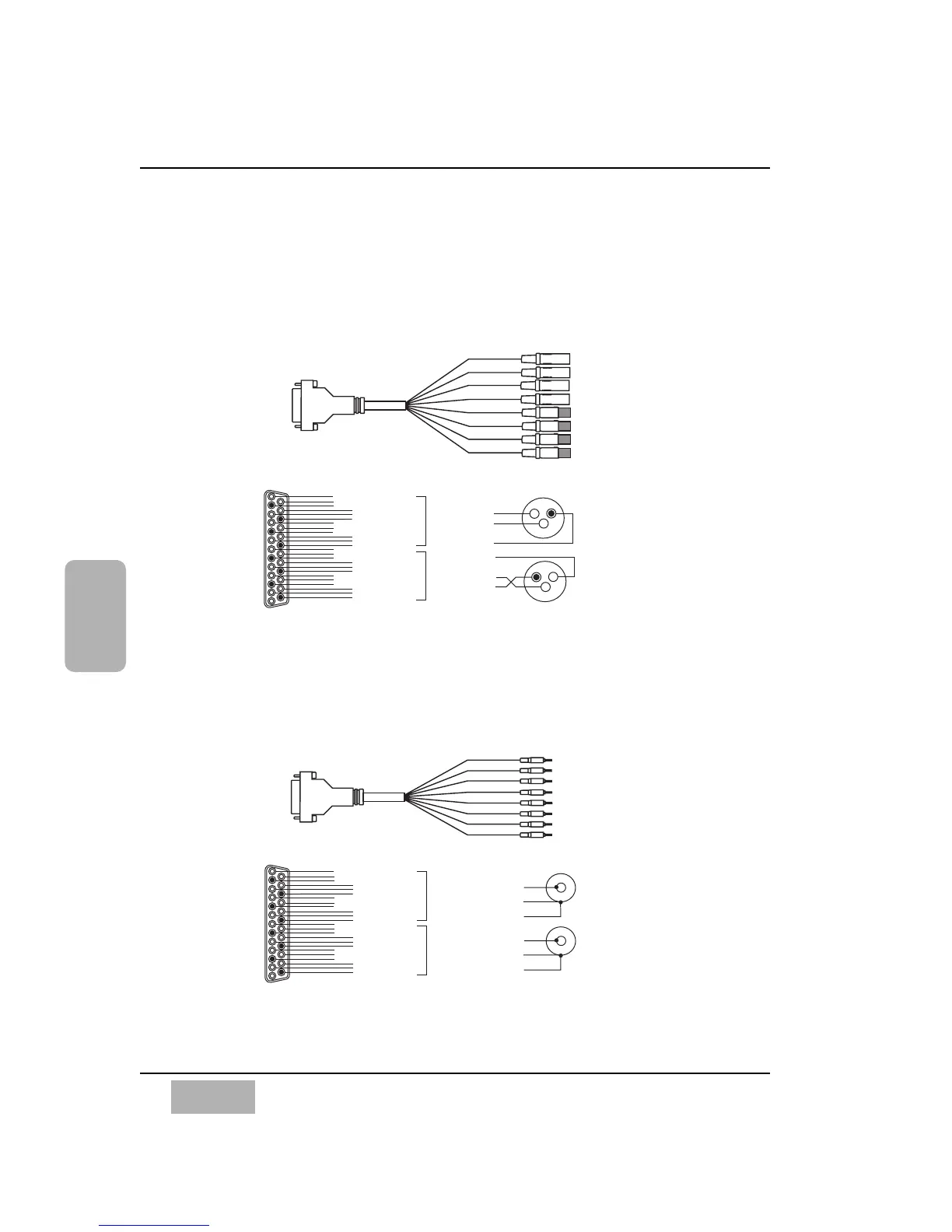

AES/EBU Cable
1
14
13
25
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
Hot
Cold
GND
CH 7, 8
CH 5, 6
CH 3, 4
CH 1, 2
CH 7, 8
CH 5, 6
CH 3, 4
CH 1, 2
Output
Input
Hot
Cold
GND
RCA Pin Plug
Hot
Cold
GND
S/PDIF Cable
DB-25 (Male)
DB-25 (Male)
XLR (Male)
XLR (Female)
RCA Pin Plug
