Parker Compumotor APEX615 Series User Manual

Appendix F 123
Switch 3 (SW 3)
RESERVED — #1: Set this switch in the OFF position.
ALIGNMENT MODE — #2: Turn this switch OFF. If you need to align the resolver,
you will turn this switch ON during the alignment procedure, and turn it OFF when you have
finished aligning the resolver. This switch must be OFF during normal operating conditions.
See Chapter ƒ Advanced Features for more information.
COMMUTATION TEST MODE — #3: Turn this switch OFF. If you need to operate
the drive in commutation test mode during a troubleshooting procedure, you will turn this
switch ON during the procedure, and turn it OFF when you are finished. This switch must be
OFF during normal operating conditions. See Chapter ∆ Troubleshooting for more
information.
HALL SELECT — #4: Turn this switch OFF if your motor has a resolver. (This switch
should be OFF if you use an APEX or SM Series servo motor, all of which have resolvers.)
Turn this switch ON if your motor has Hall effect sensors instead of a resolver.
TACHOMETER SCALING — #5: This switch scales the tachometer output. If you use
a motor that has a single speed resolver, turn this switch OFF to scale the tachometer output
to equal 1 volt per 1,000 rpm. (This switch should be OFF if you use an APEX or SM
Series servo motor, all of which have single-speed resolvers.) If you use a motor that has a
two-speed resolver, turn this switch ON. This will adjust gains of the internal circuitry, so
that the tachometer output is scaled to equal 1 volt per 1,000 rpm for two speed resolvers.
RESERVED — #6, #7, #8: Set these three switches in the OFF position.
APEX6152/6154 DIP Switches
DANGER
HIGH VOLTAGE
L1 L2 L3
Earth Earth
Control L1 Control L2
12345678
12345678
12345678
12345678
12345678
12345678
Off
1
SW1
8
1
SW2
8
1
SW3
8
Off
1
SW1
8
1
SW2
8
1
SW3
8
DANGER
HIGH VOLTAGE
L1 L2 L3
Earth Earth
Control L1 Control L2

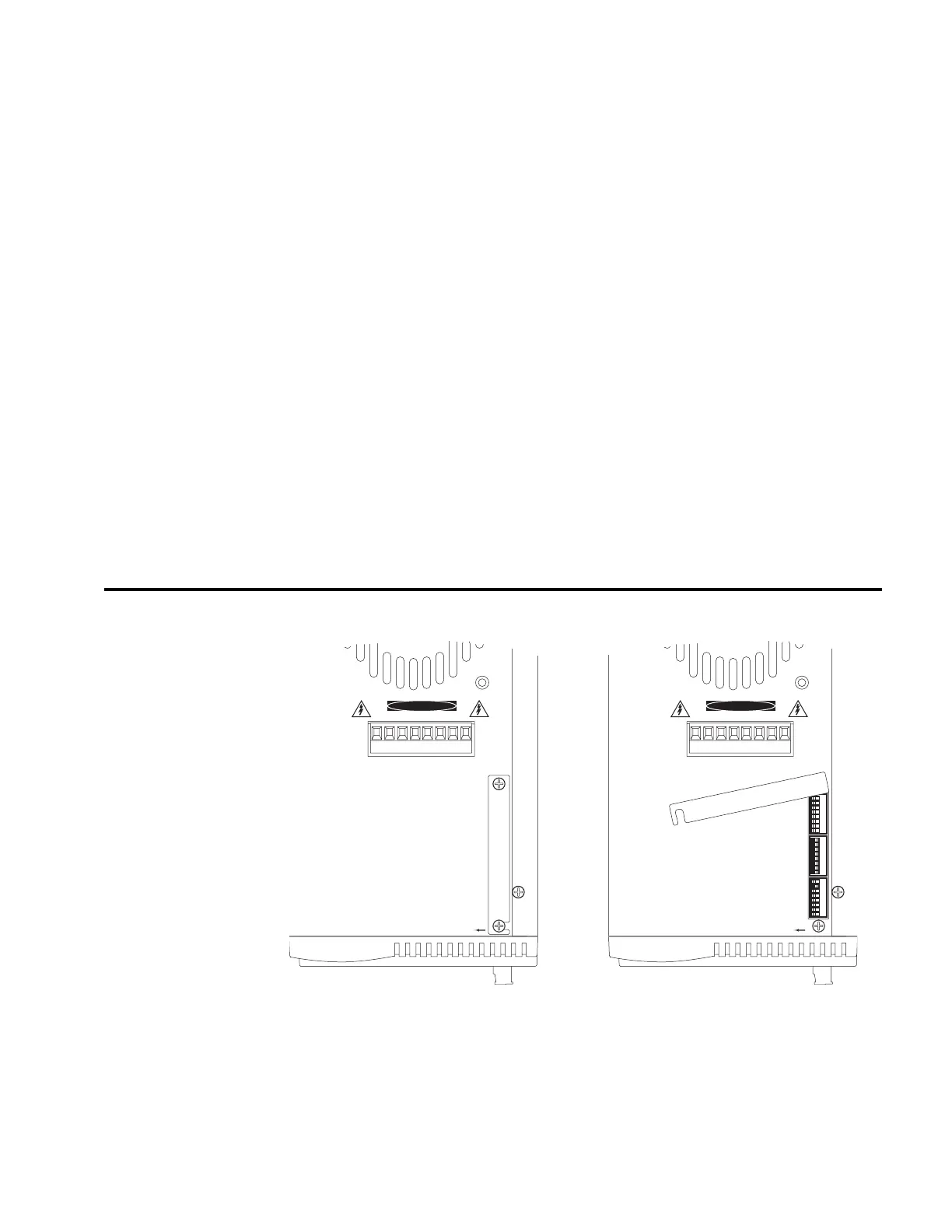

APEX6152/6154 DIP Switch Location, with Cover Closed and Open
