12
APEX615n Installation Guide
Mounting Slots and
Grounding
The APEX615n's mounting bracket is notched with keyhole type slots to accept four screws
for surface mounting on a flat panel. One of the slots—upper right—is unpainted. You can
use a star washer between the mounting screw and this slot to help provide additional electrical
grounding between the APEX615n and the mounting surface. The drive must also be grounded
through the Earth terminal on the AC power connector.

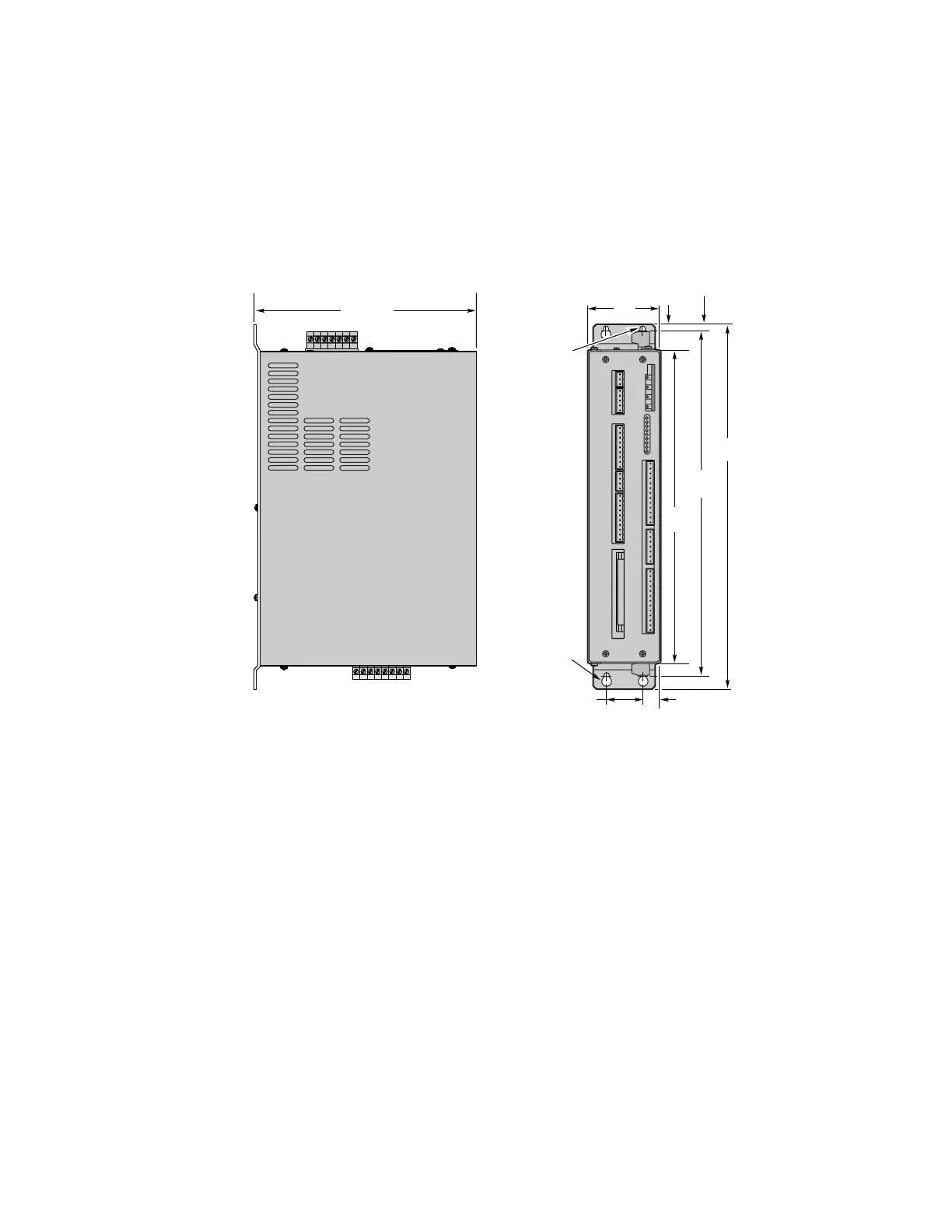

Dimensions
APEX6151
3.0
(76.2)
1.055
(26.8)
12.89
(327.4)
14.25
(362)
15.0
(381)
0.179
(4.55)
1.50
(38.1)
4x clearance
for #10 (M5)
mounting screw
Unpainted
for
grounding
0.75
(19.05)
9.20 (233.7)
