Parker Compumotor APEX615 Series User Manual

Chapter 1. Installation 13
APEX6152

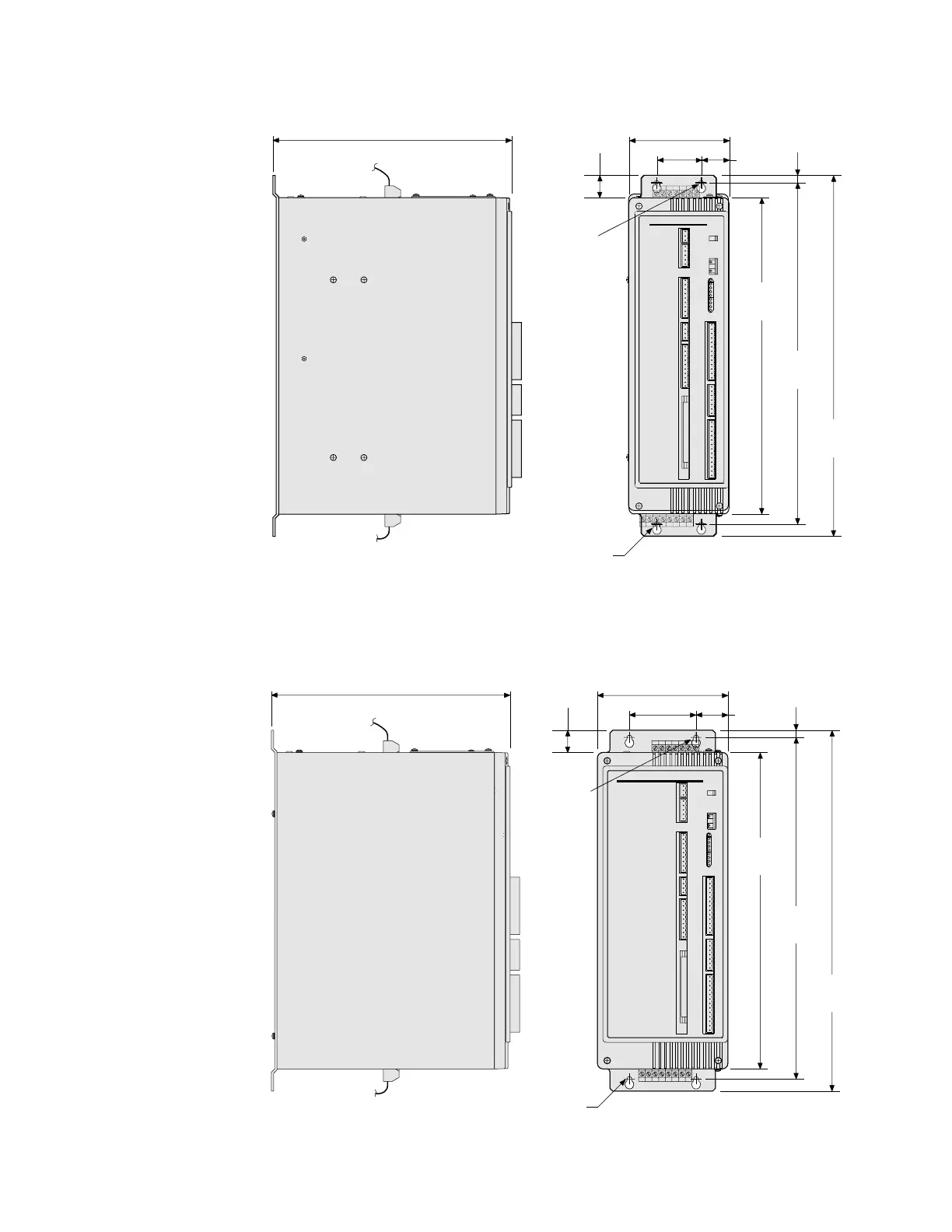

4.500 (114.3)
2.000
(50.8)
4X clearance for
#10 (M5) mounting screw
1.000
(25.4)
0.33
(8.4)
15.375
(390.5)
16.250
(412.7)
14.250
(361.9)
1.250 (31.7)
Dimensions in
inches (millimeters)
APEX6152
10.750 (273)
Unpainted
for
Grounding
APEX6154
5.875 (149.2)
3.000 (76.2)
4X clearance for
#10 (M5) mounting screw
10.750 (273)
1.000
(25.4)
0.33
(8.4)
15.375
(390.5)
16.250
(412.7)
14.250
(361.9)
1.438 (36.5)
Dimensions in
inches (millimeters)
APEX6154
Unpainted
for
Grounding
