Chapter 1. Installation
21
AC Input Connector
Connect AC power to the APEX615n's AC Input connector, which is an 8-pin removable
connector located on top of the unit. The connector can accept wire diameters as large as 10
AWG (6mm)
The AC power requirements for each model of the APEX615n are as follows:
APEX6151: 85-252VAC, Single Phase, (SM Motor - 120VAC only)
APEX6152: 85-252VAC, 3-phase>202VAC preferred, or Single Phase
APEX6154: 85-252VAC, , 3-phase>202VAC preferred, or Single Phase
CONNECT AC
POWER IN TWO
PLACES
Inside the APEX615n, there are two power systems, each with its own AC input terminals.
Ones system provides high voltage power to the power amplifier — its terminals are labeled
L1, L2, and L3 (or L1 and L2 on the APEX6151) The other system provides low voltage power
to the power amplifier's controller and the 6000 controller — its terminals are labeled Control
L1, Control L2.

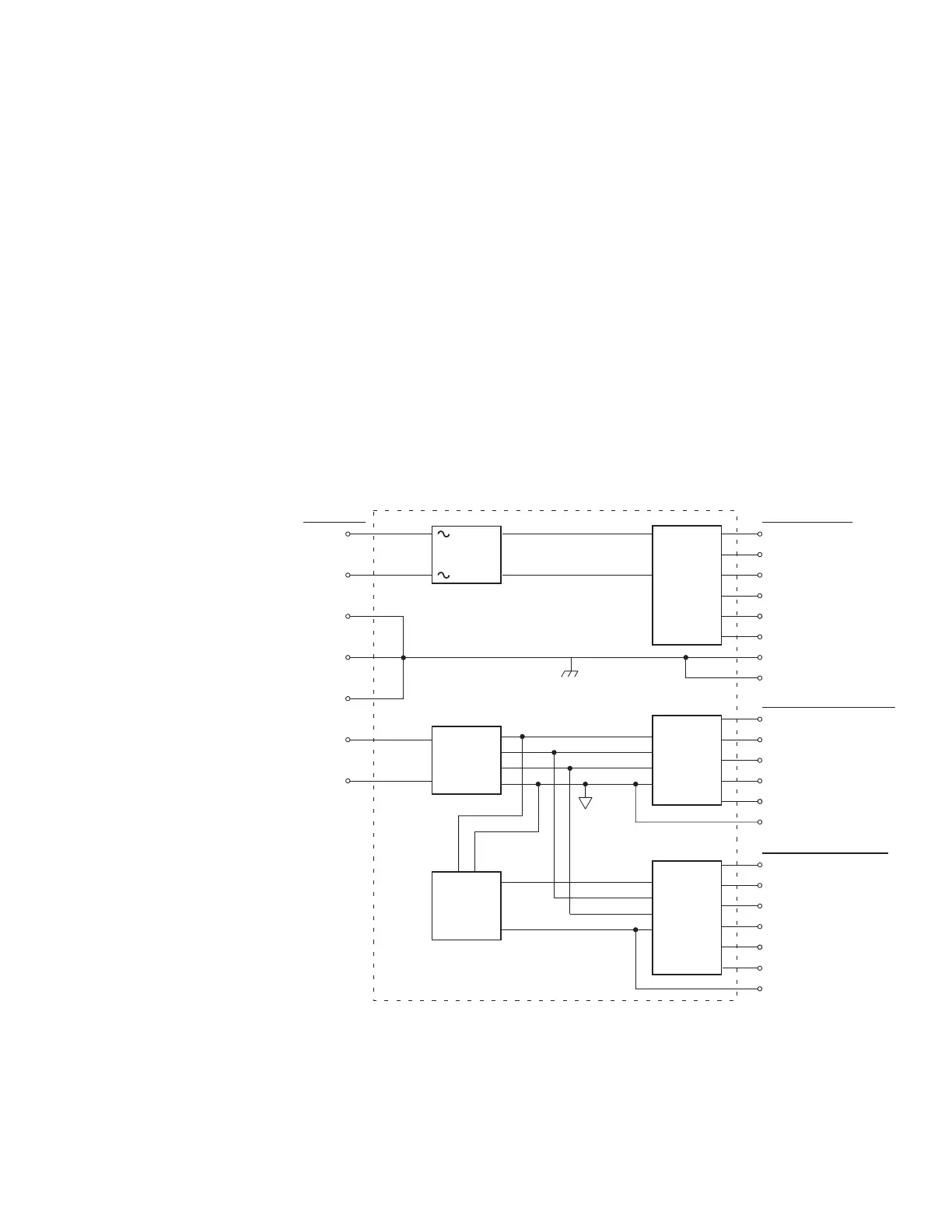

APEX6151 Internal Connections
Motor Connector
Front Panel – Right Side
Front Panel – Left Side
AC Input
Connector
1 Phase
Rectifier
+
–
Low Voltage
Power
Supply
Controller
for
Power
Amplifier
+5V
+15V
–15V
V Bus +
Regen Resistor
V Bus –
Phase A
Phase B
Phase C
±15V
Tach Output
Gnd / Resolver Shield
ANA
GND
LEDs
Encoder Output
Resolver
Motor Ground
Shield
L1
L2
Earth
Earth
Earth
3 – Phase
Power
Amplifier
Control L1
Control L2
DC-to-DC
Converter
6000
Controller
Iso +5V
+15V
–15V
Iso Ground
Triggers
Programmable I/O
Iso Gnd
+5V (isolated)
COM 1
COM 2
Limits
