Chapter 1. Installation
15
1.50
(38.1)
(Minimum)
3.00 (76.2)
(Minimum)
1.50
(38.1)
4.0 (102)
Clearance
(Minimum)
14.25
(362)
4.0 (102)
Clearance
(Minimum)
1.50 (38.1)
Clearance
(Minimum)
4.50 (114)
Min
Clearance
APEX6151

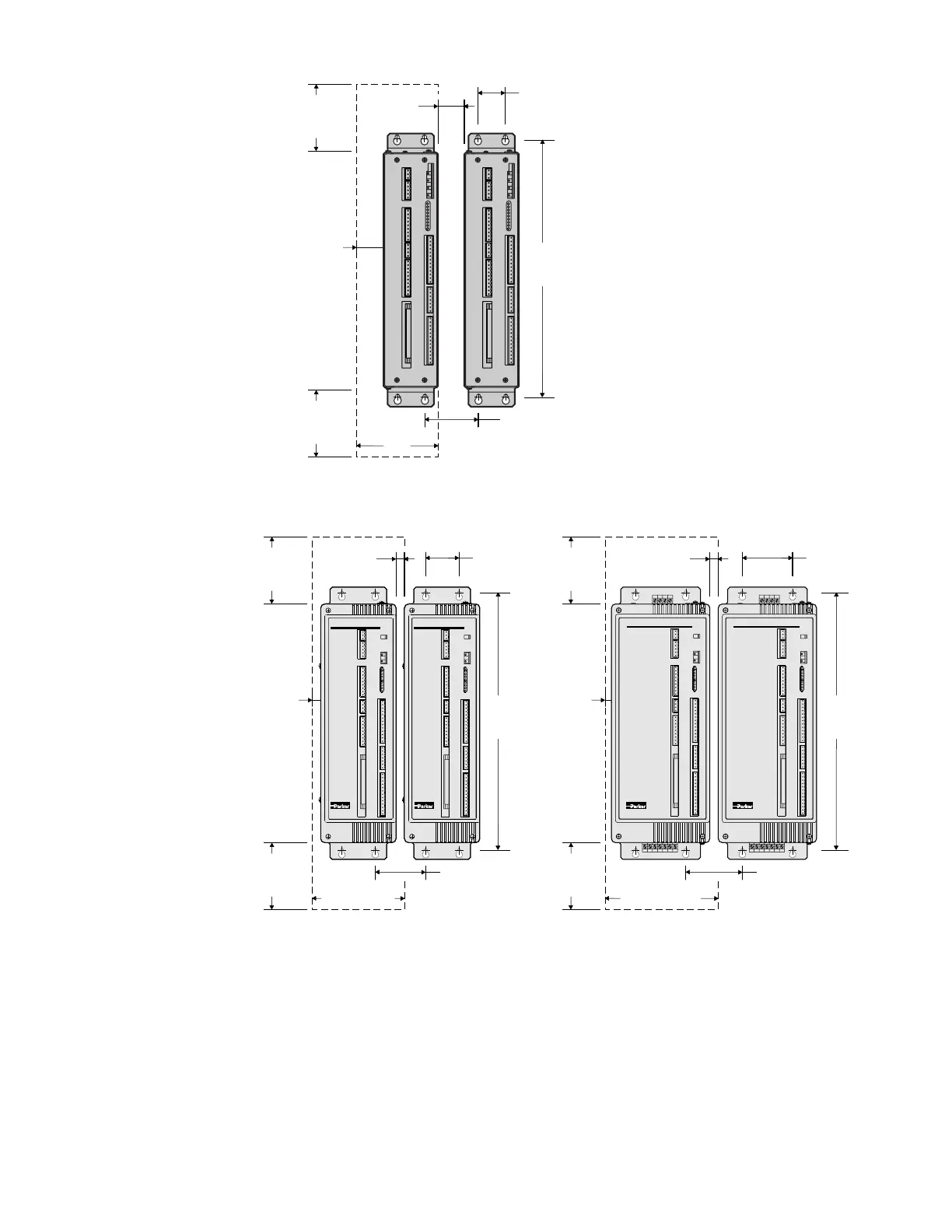

When you design your panel layout,
follow these precautions for adequate
cooling:
• The vertical distance between the
APEX615n and other equipment, or the
top and bottom of the enclosure, should
be no less than 4 inches (100 mm).
• The horizontal distance between the
APEX6151's side air vents and other
equipment should be no less than 1.5
inches (38.1 mm). The horizontal
distance between the sides of the
APEX6152 or APEX6154 and other
equipment should be no less than 0.50
inches (12.7 mm).
• Do not mount the APEX615n directly
below heat-sensitive equipment.
• Large heat-producing equipment (such
as transformers) should not be mounted
directly beneath the APEX615n.
0.50 (12.7)
Minimum
3.00 (76.2)
Minimum
2.00
(50.8)
4.0 (102)
Clearance
(Minimum)
15.375
(390.5)
4.0 (102)
Clearance
(Minimum)
Dimensions in
inches (millimeters)
0.50 (12.7)
Clearance
(Minimum)
5.50 (138)
Min Clearance
APEX6152
Compumotor
APEX6152
Compumotor
0.50 (12.7)
Minimum
3.38 (85.8)
Minimum
3.00
(76.2)
4.0 (102)
Clearance
(Minimum)
APEX6154
15.375
(390.5)
4.0 (102)
Clearance
(Minimum)
0.50 (12.7)
Clearance
(Minimum)
Compumotor
6.88 (162)
Min Clearance
APEX6152 APEX6154
APEX6154
Compumotor
