K3.1.141e Manual NitroFlow HP_EN.doc - 56 -
changing this you need to press ‘Apply Filter’ so it regenerates
the log.
6: Log columns The columns for the log
The text in this row will be changed when selecting a log. You are
free to change the order and width of each column. You can also
click on it to sort the log by this. Pressing it again switches to
Asc/Desc.
If you press 2 columns, NitroView will first sort on the last column
clicked, and whenever a record is the same it will sort those
records by the previous column you
clicked.
7: Actual log This is where the actual log records are.
The colors are depending on the type of log (see Preferences).
When selecting a line, the alarms will be showed on the bottom of
the screen (8).
8: Alarm bar This bar shows alarm states of the selected log
When you’ve selected a log, this will fill itself with the alarms
corresponding to the type of log. The alarm is divided in 3 states:
- Default color (grey) : No alarm
- Red : The actual alarm is there (after timeout)
- Orange : The alarm is accepted on the system
9: Status bar The status of NitroView is shown here.
When loading a log, a progress bar will show the progress.

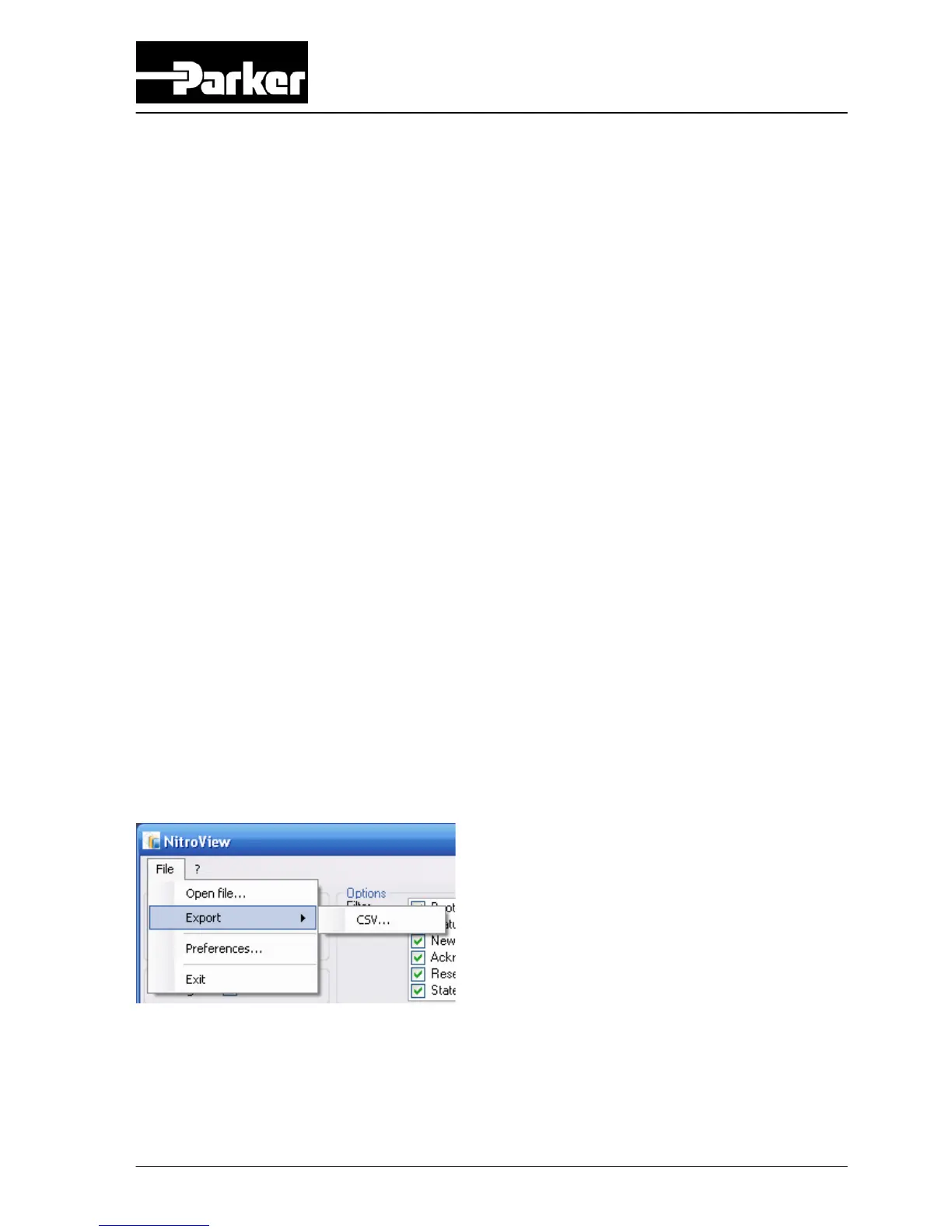

Main menu
The main menu contains everything you need to work with NitroView apart from the
main screen:
Open file… : Open a different log file
Export->CSV : export the current view of NitroView to an comma separated file
Preferences : Open the preferences for NitroView
Exit : Exit NitroView
