Press MEAS FUNC Volt. The counter can
measure the input voltage levels V
MAX , VMIN
and VPP on DC-input voltages and on repetitive
signals between 1 Hz and 400 MHz.
The default low frequency limit is 20 Hz but
can be changed via the SETTINGS

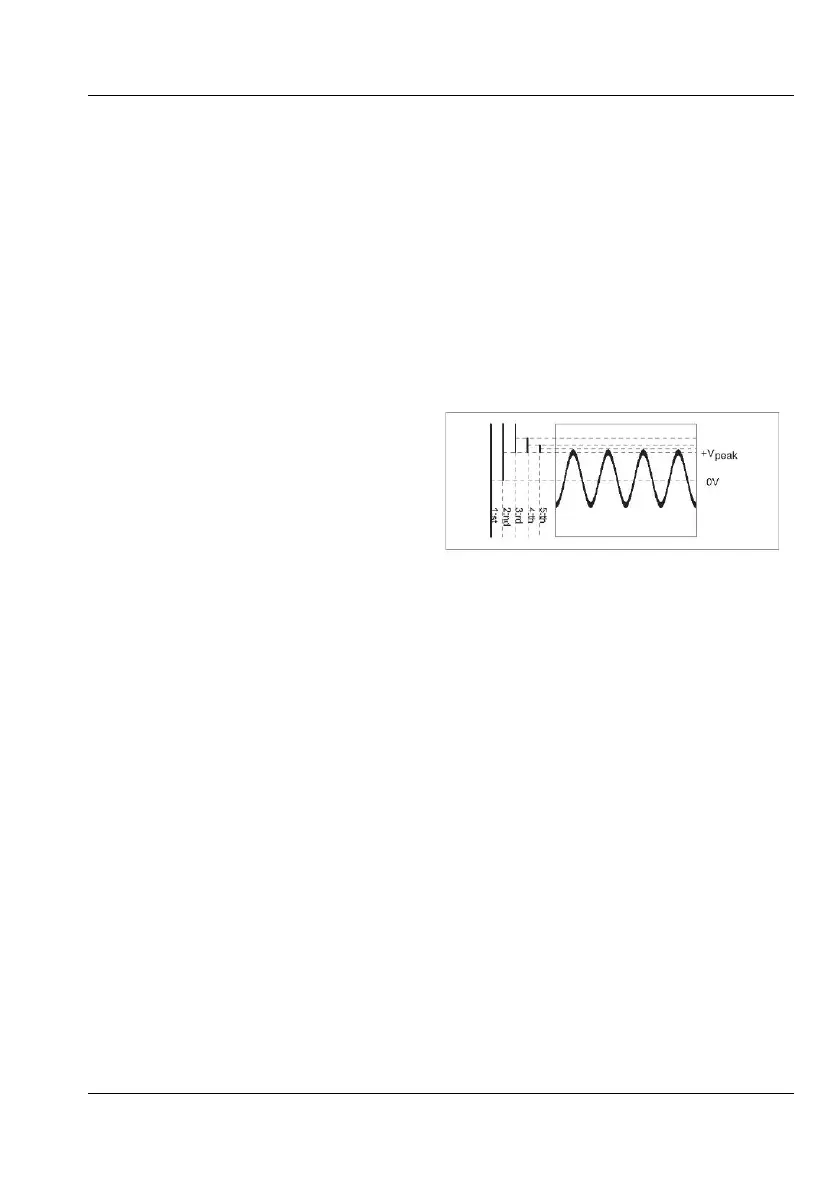

The voltage is determined
by making a series of trigger
leve settings and sensing
when the counter triggers.
Miscellaneous menu between 1 Hz and 50
kHz. A higher low-frequency limit means
faster measurements.
The voltage capacity is -50 V to +50 V in two
automatically selected ranges.
For LF signals the measurement has "voltmeter
performance", i.e. an accuracy of about 1 % of
the reading.
You can select any one of the parameters to be
the main parameter that is displayed in large
digits and with full resolution, while the others
are displayed simultaneously at the bottom of
the display in smaller characters.
USER MANUAL ● CNT 9x Series ● Rev.22 February 2020
