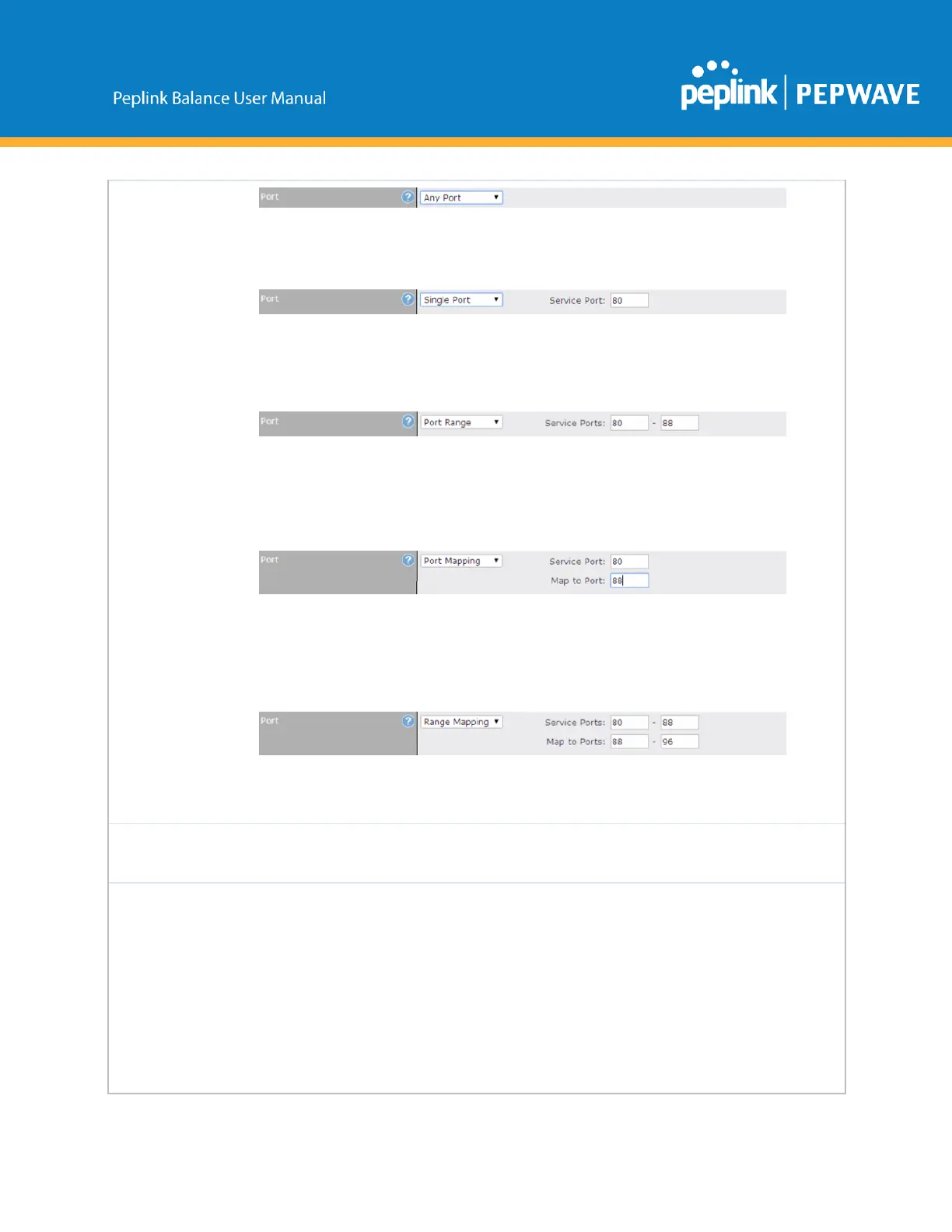

AnyPort:alltrafficthatisreceivedbythePeplinkBalanceviathespecifiedprotocolis
forwardedtotheserversspecifiedbytheServerssetting. 
Forexample,ifIPProtocolissettoTCPandPortissettoAnyPort,thenallTCPtrafficwill
beforwardedtotheconfiguredservers.

SinglePort:trafficthatisreceivedbythePeplinkBalanceviathespecifiedprotocolatthe
specifiedportisforwardedviathesameporttotheserversspecifiedbytheServerssetting. 
Forexample,ifIPProtocolissettoTCP,PortissettoSinglePort,andServicePortisset
to80,thenTCPtrafficreceivedonPort80willbeforwardedtotheconfiguredserversviaport
80.

PortRange:trafficthatisreceivedbythePeplinkBalanceviathespecifiedprotocolatthe
specifiedportrangeisforwardedviathesamerespectiveportstotheLANhostsspecifiedby
theServerssetting. 
Forexample,ifIPProtocolissettoTCP,PortissettoPortRange,andServicePortsetto
8088,thenTCPtrafficreceivedonports80through88willbeforwardedtotheconfigured
serversviatherespectiveports.

PortMapping:trafficthatisreceivedbythePeplinkBalanceviathespecifiedprotocolatthe
specifiedportisforwardedviaadifferentporttotheserversspecifiedbytheServerssetting. 
Forexample,ifIPProtocolissettoTCP,PortissettoPortMapping,ServicePortissetto
80,andMaptoPortissetto88,thenTCPtrafficonport80isforwardedtotheconfigured
serversviaport88.
(PleaseseebelowfordetailsontheServerssetting.)

RangeMapping:trafficthatisreceivedbyPeplinkBalanceviathespecifiedprotocolatthe
specifiedportrangeisforwardedviaadifferentporttotheserversspecifiedbytheServers
setting.
InboundIP
Address(es)
ThissettingspecifiestheWANconnectionsandInternetIPaddress(es)fromwhichthe
servicecanbeaccessed.
Included
Server(s)
ThissettingspecifiestheLANserversthathandlerequestsfortheservice,andtherelative
weightvalues.Theamountoftrafficthatisdistributedtoaserverisproportionaltotheweight
valueassignedtotheserverrelativetothetotalweight.
Example:
WiththefollowingweightsettingsonaPeplinkBalance:
● demo_server_1:10
● demo_server_2:5
Thetotalweightis15=(10+5)
Matchingtrafficdistributedtodemo_server_1:67%=(10/15)x100%
Matchingtrafficdistributedtodemo_server_2:33%=(5/15)x100%

