Adjustment
62
1
2
3
1,5 mm

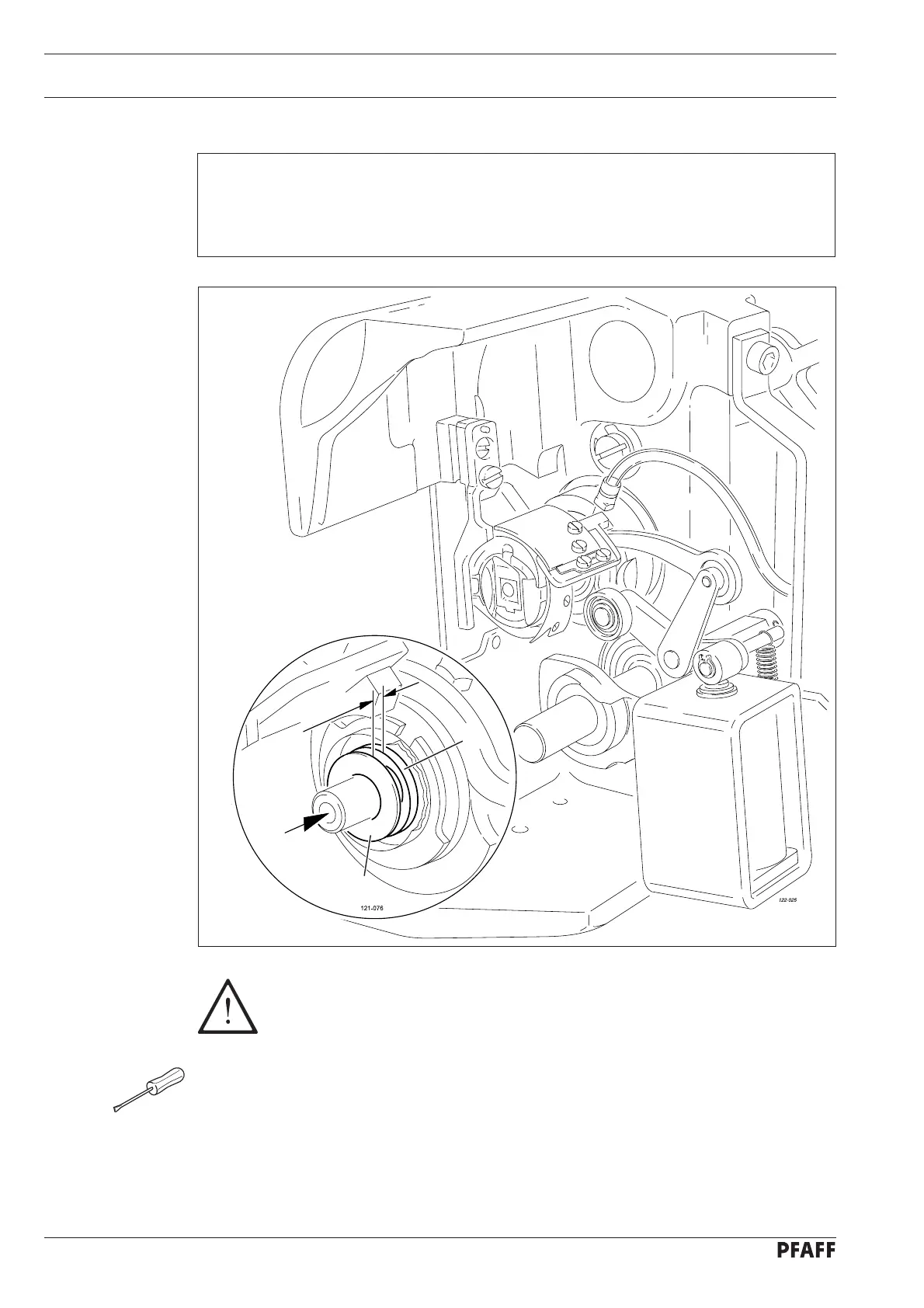

Fig. 12 - 06
12.05.05 Hook lubrication
Requirement
The centrifugal disk 1 must be positioned 1.5 mm in front of the oil ring 3.
When the machine is running at full speed, after approx. 10 seconds a mark should be
made by a fi ne stripe of oil on the strip of paper placed over the needle plate cutout.
1.
2.
The adjustment is only necessary if the wick has been replaced.
When replacing the wick, make sure that the new wick is impregnated with oil.
Move the centrifugal disk 1 (screw 2) according to requirement 1.
Check requirement 2. If necessary, move centrifugal disk 1.
●
●
