Adjustment
68
12
.06.02
Cut
ting motion
Requirement
When the edge trimmer is switc
hed on, the knif
e should be at the bot
tom of its stroke
when the needle bar is at b.d.c.
Adjust eccentric
1
(two scre
ws
2)
in accordance with the requirement.
●

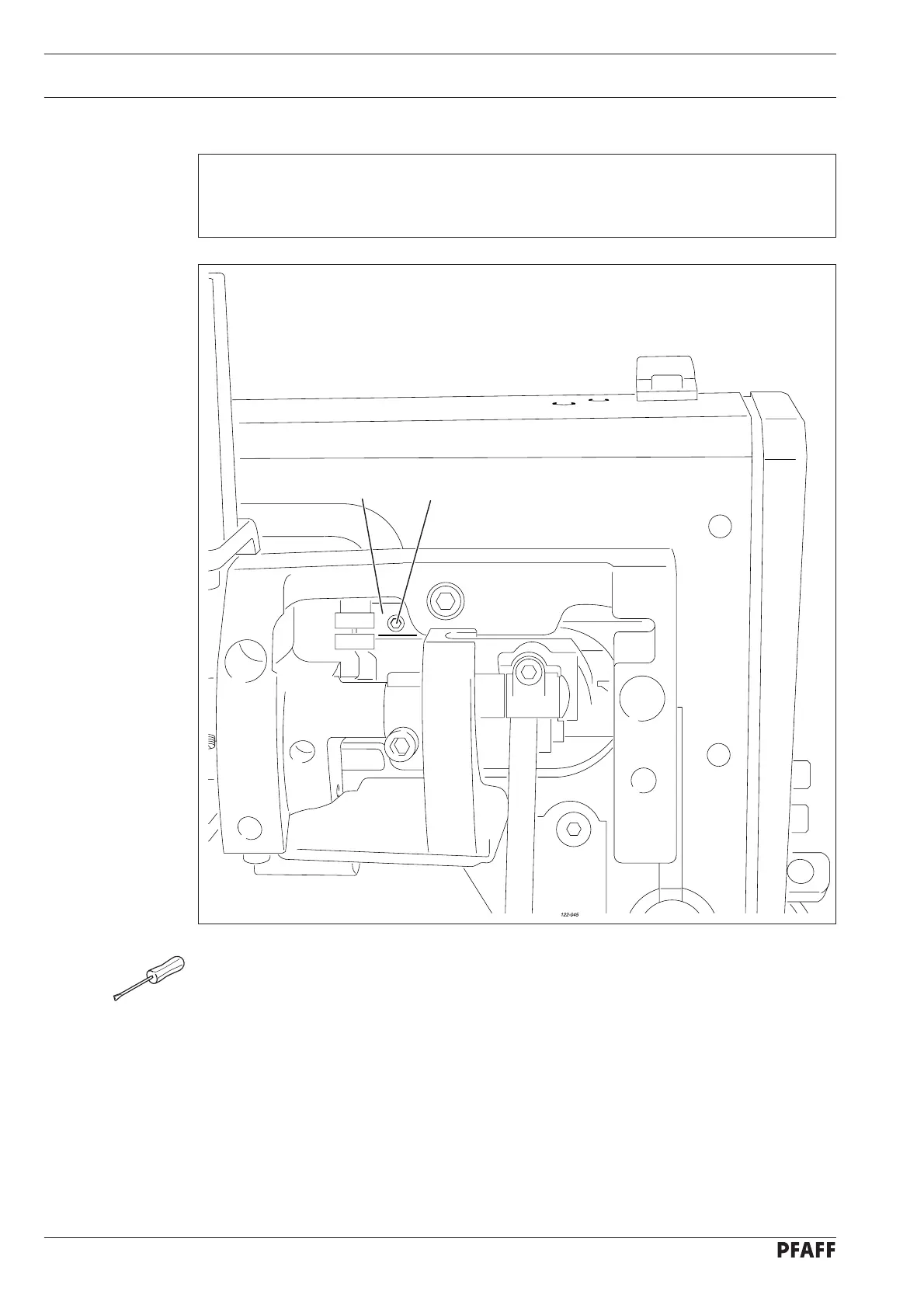

Fig. 12 - 1
2
2
1
67
69
Table of Contents
Instruction Manual
1
Table of Contents
3
Safety
6
Directives
6
General Notes on Safety
6
Safety Symbols
7
Important Points for the User
7
Operating and Specialist Personnel
8
Operating Personnel
8
Specialist Personnel
8
Danger Warnings
9
Proper Use
10
Specifi Cations
11
Disposal of Machine
12
Transportation, Packing and Storage
13
Transportation to Customer's Premises
13
Transportation Inside the Customer's Premises
13
Disposal of Packing Materials
13
Storage
13
Explanation of Symbols
14
Controls
15
On/Off Switch
15
Lever for Lifting the Presser Foot
15
Pedal
16
Photo Sensor
16
Control Panel
17
Screen Displays
17
Symbole IM Display
17
Function Keys
18
Installation and Commissioning
21
Installation
21
Adjusting the Table Height
21
Mounting the Spool Holder
22
Connecting the Plug-In Connections and Earth Cables
23
Commissioning
24
Switching the Machine On/Off
24
Basic Position of the Machine Drive Unit
25
Preparation
26
Inserting the Needle
26
Winding the Bobbin Thread, Adjusting the Thread Tension
27
Removing / Inserting the Bobbin Case
28
Inserting the Bobbin Case / Adjusting the Bobbin Thread Tension
28
Threading the Needle Thread / Adjusting the Needle Thread Tension
29
Entering the Stitch Length
30
Entering the Start and End Backtacks
30
Inserting and Removing the SD-Memory Card
31
Inserting the Workpiece
32
Loading the Sewing Jig
32
Inserting the Sewing Jig
33
Sewing
34
Manual Sewing
35
Programmed Sewing
36
Creating / Altering Seam Patterns
37
Creating a Seam Pattern in the "Teach in Mode
37
Altering Seam Patterns
41
Switch on Edge Trimmer with Delay (Waistband Extension)
42
Program Management
43
Calling up the Program Management
43
Displaying Programs in the Machine Memory
44
Displaying Programs on the SD-Memory Card
45
Copying Individual Programs to the SD-Memory Card
46
Copying All Programs to the SD-Memory Card
47
Copying Individual Programs to the Machine Memory
48
Copying All Programs to the Machine Memory
49
Deleting Programs in the Machine Memory
50
Deleting Programs on the SD-Memory Card
51
Formatting the SD-Memory Card
52
Error Messages
52
Care and Maintenance
53
Maintenance Intervals
53
Cleaning the Machine
53
Topping up the Oil Tank
54
Checking/Regulating the Air Pressure
54
Emptying/Cleaning the Water Bowl of the Air Fi Lter/Regulator
55
Adjustment
56
Notes on Adjustment
56
Tools, Gauges and Other Accessories for Adjusting
56
Abbreviations
56
Checking and Adjusting Aids
57
Adjusting the Basic Machine
58
Basic Position of the Machine Drive
58
Preadjusting the Needle Height
59
Needle in Needle Hole Center
60
Hook Shaft Bearing and Toothed Belt Tension
61
Hook Lubrication
62
Needle Rise, Hook-To-Needle Clearance, Needle Height and Bobbin Case Position Fi Nger
63
Thread Check Spring and Slack Thread Regulator
64
Bobbin Winder
65
Presser Foot Pressure
66
Adjusting the Edge Trimmer
67
Zero Position of the Knife
67
Cutting Motion
68
Knife Height
69
Knife Position in Sewing Direction
70
Cutting Angle of the Knife
71
Knife Position Crosswise to Sewing Direction
72
Adjusting the Thread Trimming Device
73
Adjusting the Solenoid / Preliminary Adjustment of the Control Cam
73
Lateral Alignment of the Thread Catcher
74
Knife Position
75
Front Point of Reversal of the Thread Catcher
76
Manual Trimming Check
77
Needle Thread Tension Release
78
Readjusting the Control Cam
79
Adjusting the Automatic Presser Foot Lift
80
Adjusting the Jig Drive
81
Position of the Jig Drive in the Sewing Direction
81
Position of the Jig Drive Crosswise to the Sewing Direction
82
Jig Drive Contact Pressure
83
Adjusting the Support Roller
84
Adjusting the Retainer
85
Adjusting the Photo Sensor and Jig Stop
86
Parameter Settings
87
Selecting the User Level
87
Example of Parameter Input
88
List of Parameters
89
Explanation of the Error Messages
93
Sewing Motor Errors
93
Error SD Memory Card
93
Hardware-Test
94
Carry out the Hardware Test
94
Test Block 1 - Inputs
94
Test Block 2 - Outputs
95
Test Block 3 - Set Value Sender and Actual Value Sender
95
Test Block 4 - Photo Sensor and Thread Monitor
96
Reset
96
Internet Update of the Machine Software
97
Wearing Parts
98
Circuit Diagram
100
Circuit Diagrams
101
