Pfaff 3511-2/01 - Readjusting the Control Cam

106 pages

To Next Page

To Previous Page

Adjustment

12.07.07 Readjusting the control cam

Requirement

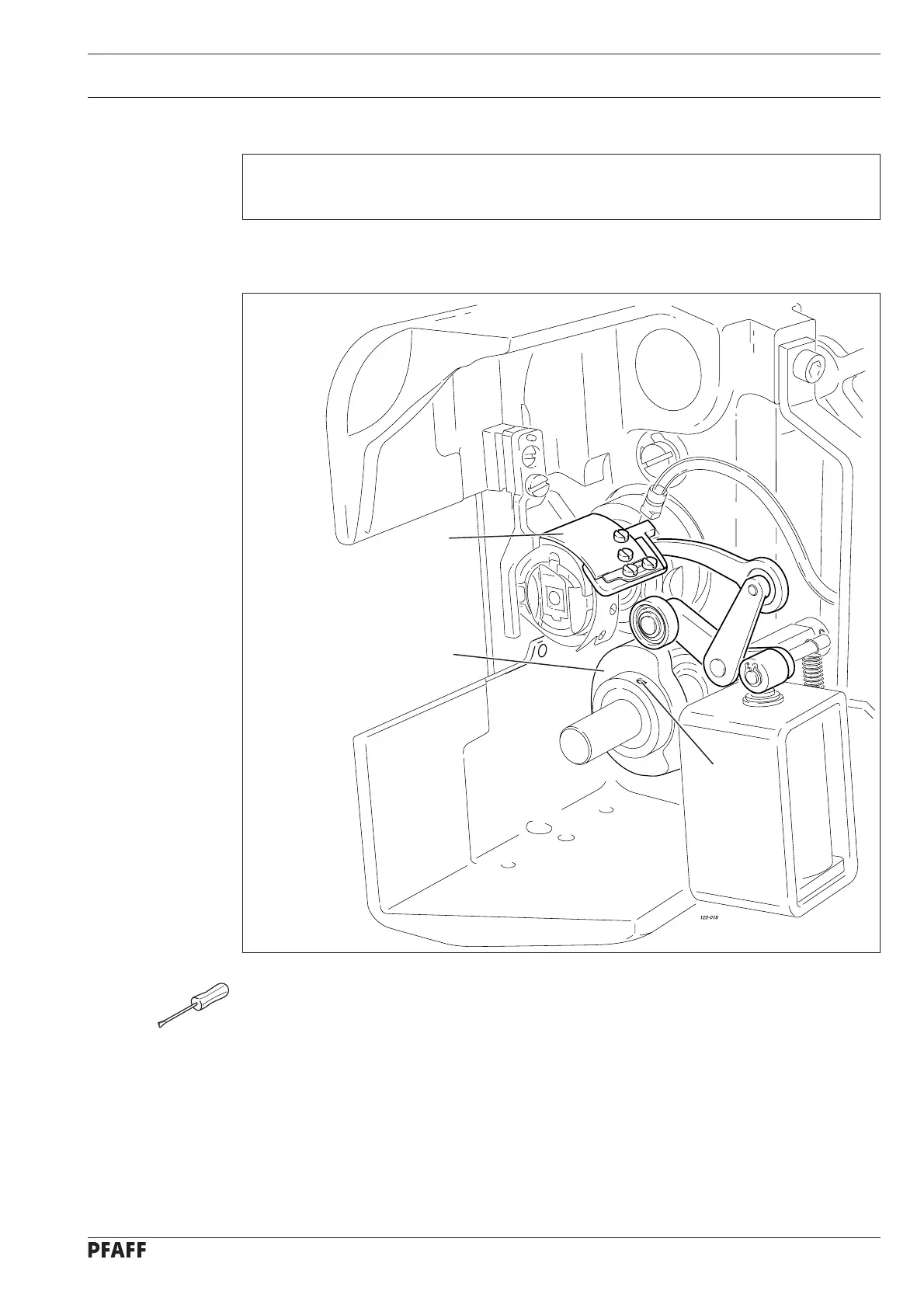

When the take-up lever is in its t.d.c., control cam 1 should have moved thread catcher 3.

Adjust control cam 1 (screws 2) according to the requirement.●

Fig. 12 - 23
