Adjustment
82
12.09.02 Position of the jig drive crosswise to the sewing direction
Requirement
Drive wheel 3 should fi rmly touch the sewing jig at all times.
Adjust piston rod 1 (nut 2) in accordance with the requirement.●

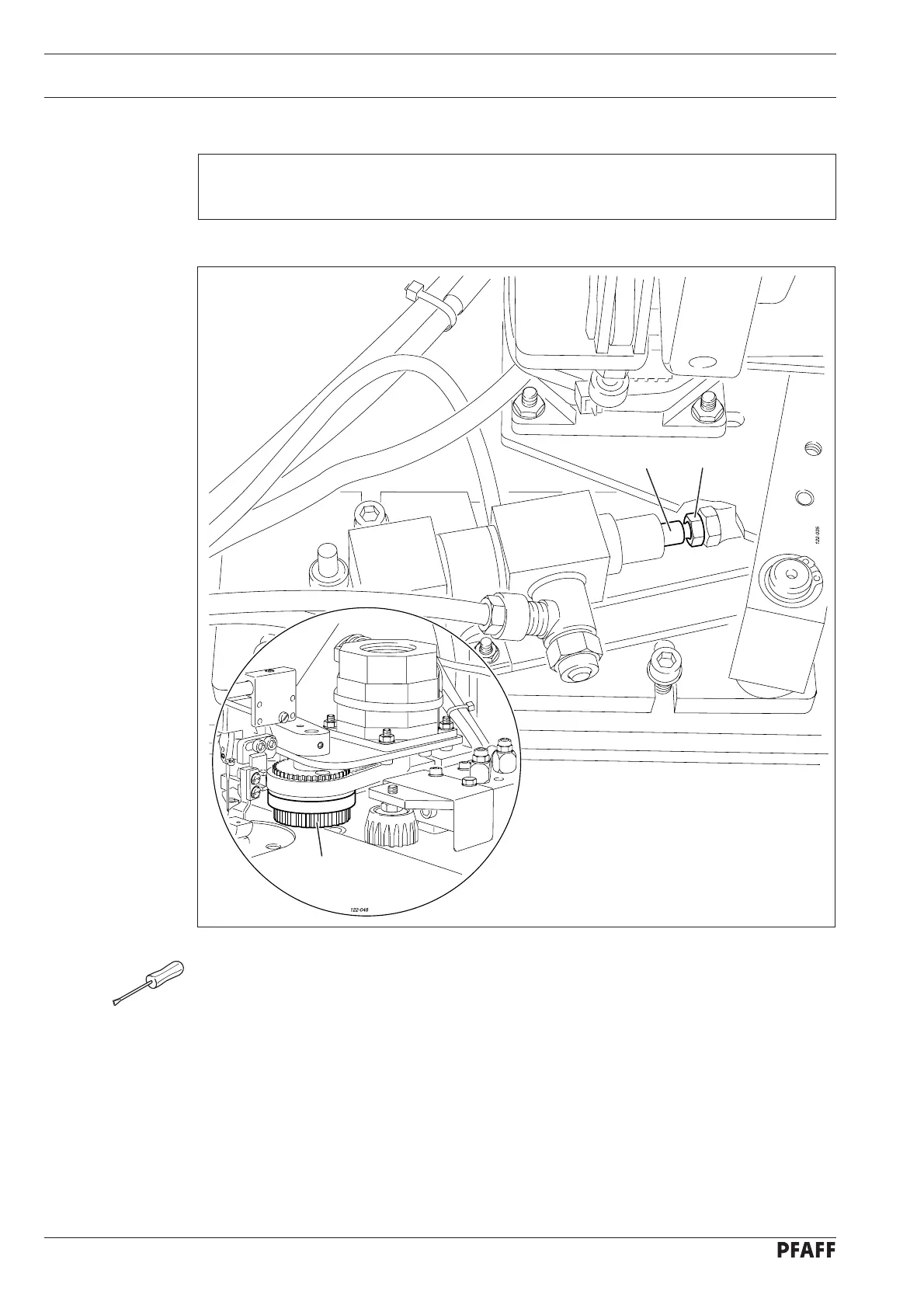

Fig. 12 - 26
3
1
2
