Pfaff 3511-2/01 - Thread Trimming Device Adjustments; Solenoid and Control Cam Adjustment

Adjustment
73
12.07 Adjusting the thread trimming device
13
.0.01 Adjusting the solenoid / preliminary adjustment of the control cam
Requirement
When solenoid 3 is completely extended, roller lever 4 should be at the lowest point
of the control cam.
When the needle bar is positioned at 1.8 mm after b.d.c. (needle rise position), roller
lever 4 should engage in the appropriate recess of the control cam.
1.
2.
Adjust solenoid holder 1 (screws 2) in accordance with requirement 1.
Adjust control cam 5 (screws 6) in accordance with requirement 2.
●
●

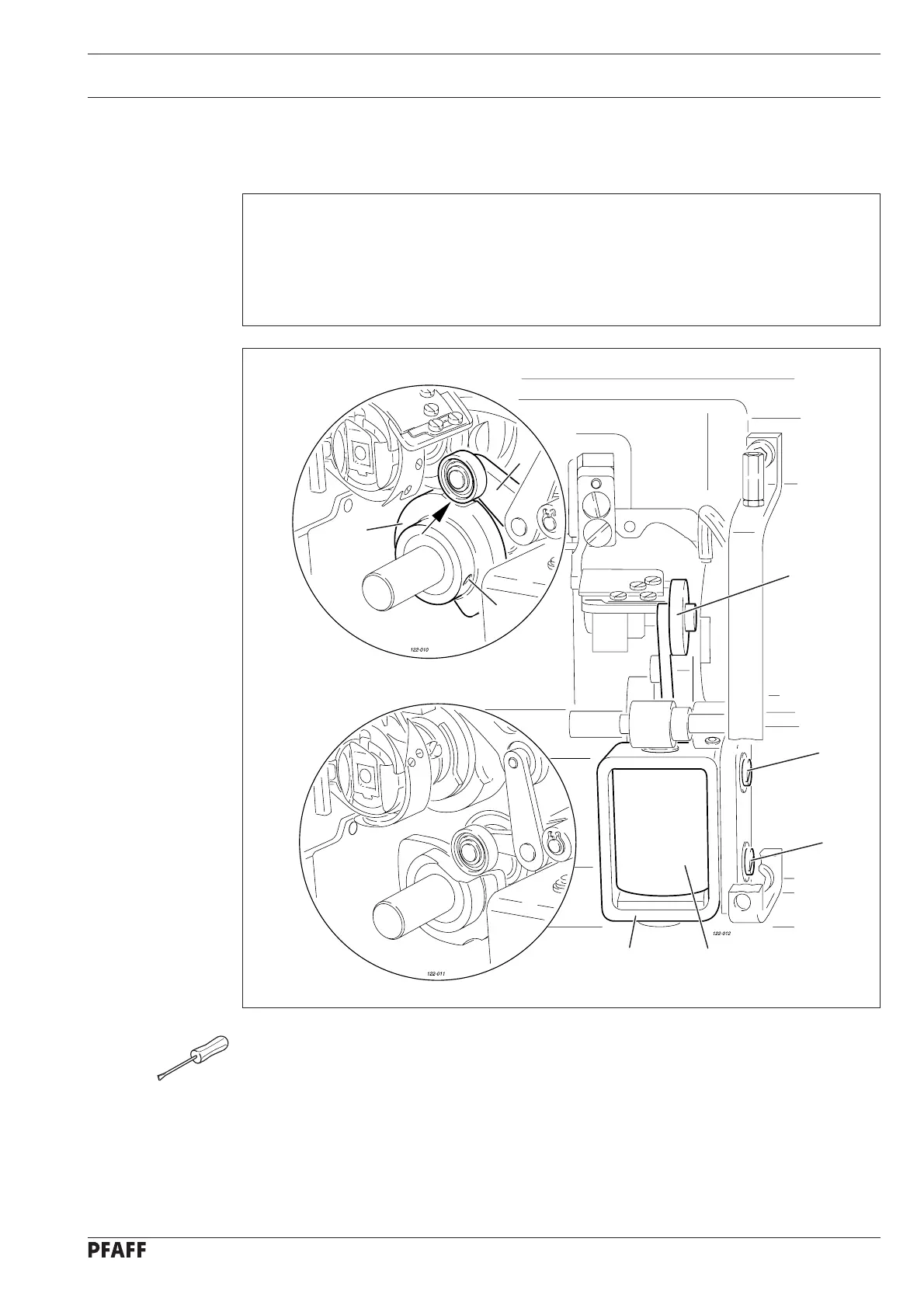

Fig. 12 - 17
4
5
6
1
2
3
4
2
