Adjustment
74
12.07.02 Lateral alignment of the thread catcher
Requirement
The tip of the thread catcher 5 must point exactly to the center of the needle.
The thread catcher 5 must be horizontal. It must not graze anything when it is opera-
ting.
1.
2.
Remove knife 1 (screw 2).
Move needle bar to its BDC.
Loosen stop 3 (screws 4).
Position thread catcher 5 (screw 6) manually in front of the needle.
Align thread catcher 5 (screws 7) according to the requirements.
For further adjustments, leave knife 1 removed and stop 3 loosened.

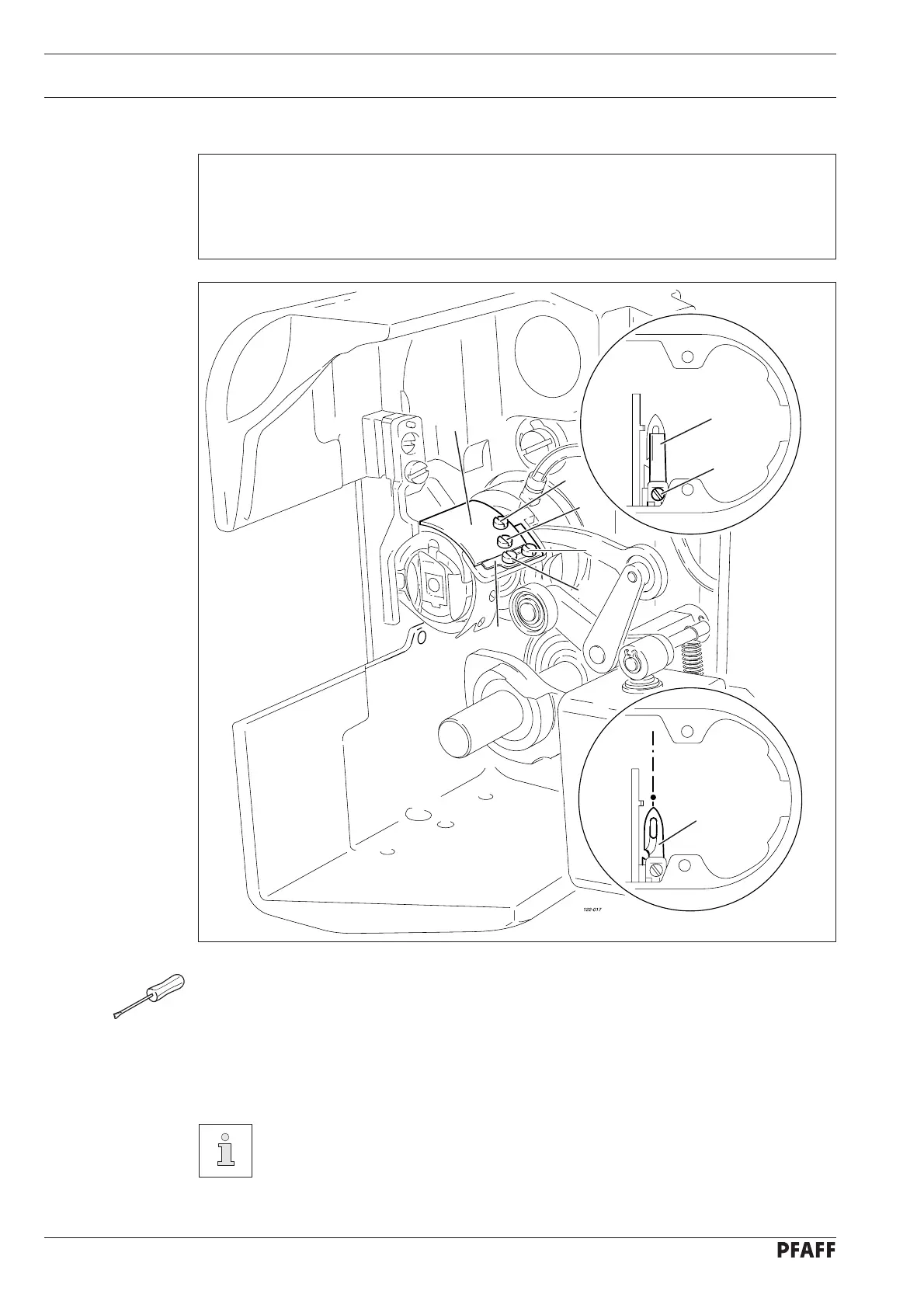

Fig. 12 - 18
1
2
5
5
4
6
6
3
4
