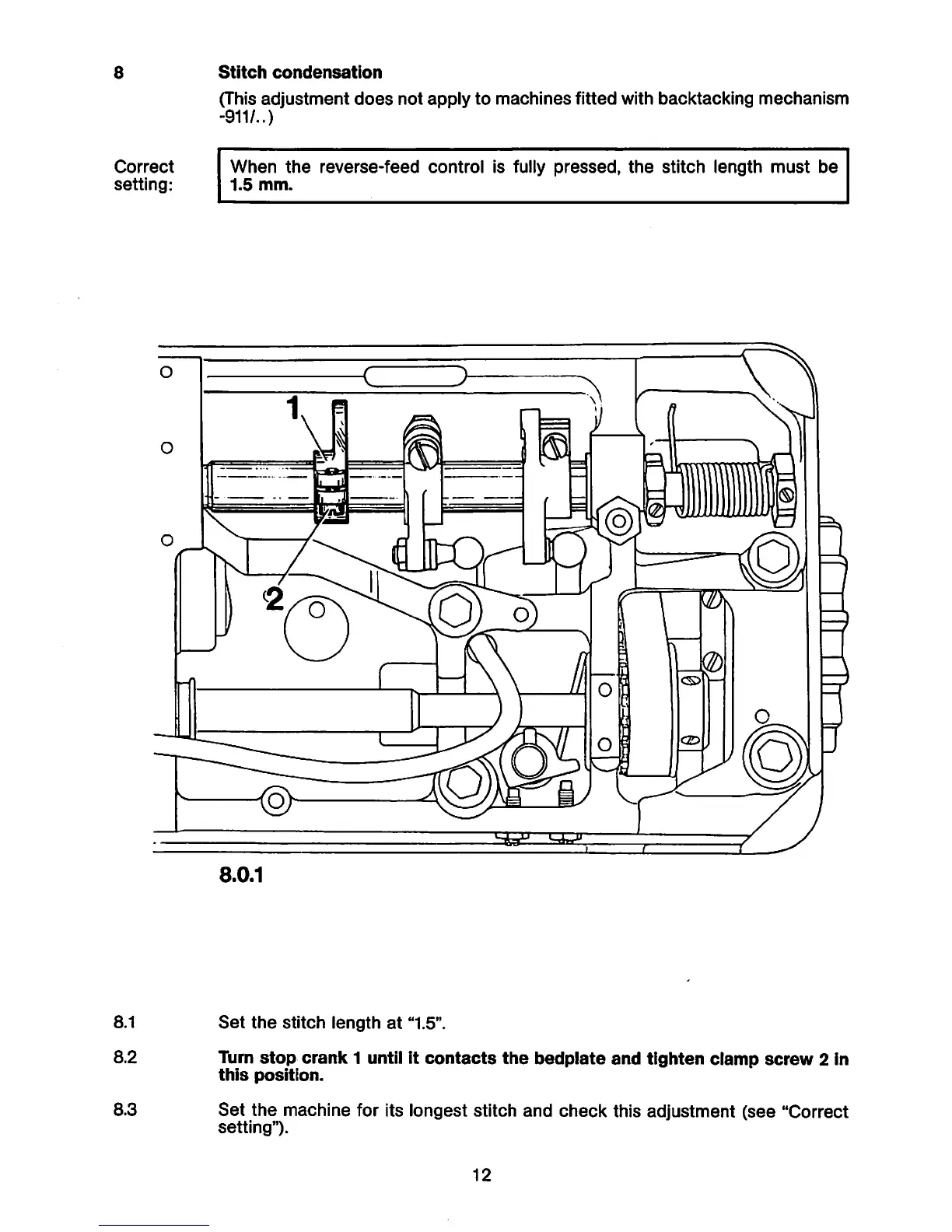

Pfaff 5483 - Timing the looper; Looper Reversal Point at Bottom Dead Center

Correct
setting:
stitch condensation
(This adjustment does not apply to machines fitted with backtacking mechanism
-911/..)
When the reverse-feed control is fully pressed, the stitch length must be
1.5 mm.
'VW mum
©
Q)
8.0.1
8.1 Set the stitch length at "1.5".
8.2 Turn stop crank 1 until it contacts the bedplate and tighten clamp screw 2 in
this position.
8.3 Set the machine for Its longest stitch and check this adjustment (see "Correct
setting").
