Pfaff 5483 - 46 Clearance between rear needle guard and needle (subcl. -911;..)

46
Correct
setting:
46.1
46.2
46.3
46.4
46.5

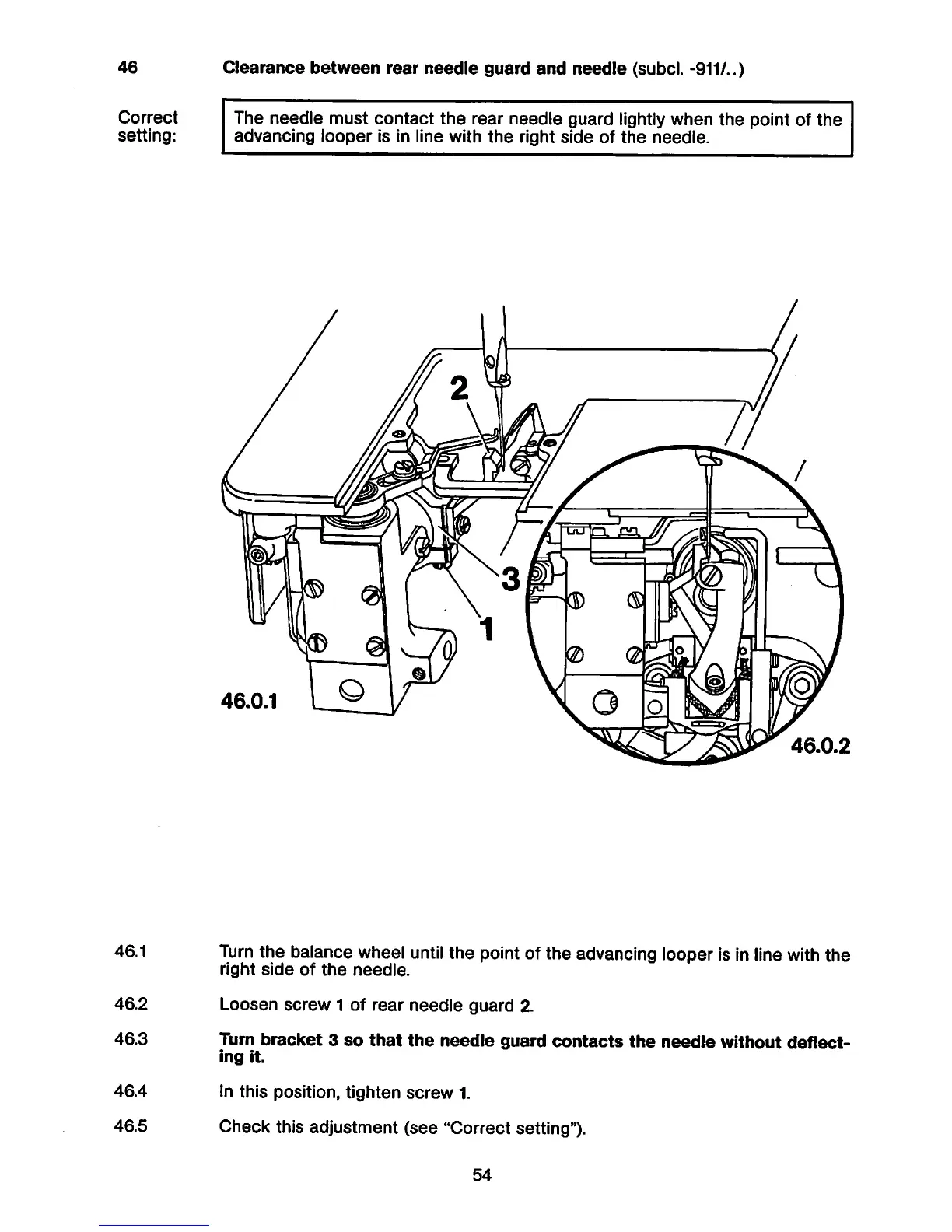

Clearance between rear needle guard and needle (subcl. -911/..)
The needle must contact the rear needle guard lightly when the point of the
advancing looper Is In line with the right side of the needle.
/
.0.2
Turn the balance wheel untilthe point of the advancing looper IsInlinewiththe
right side of the needle.
Loosen screw 1 of rear needle guard 2.
Turn
bracket 3 so that the needle guard contacts the needle without deflect
ing it.
In this position, tighten screw 1.
Check this adjustment (see "Correct setting").
54
