28
Correct
setting:
28.1
28.2
28.3

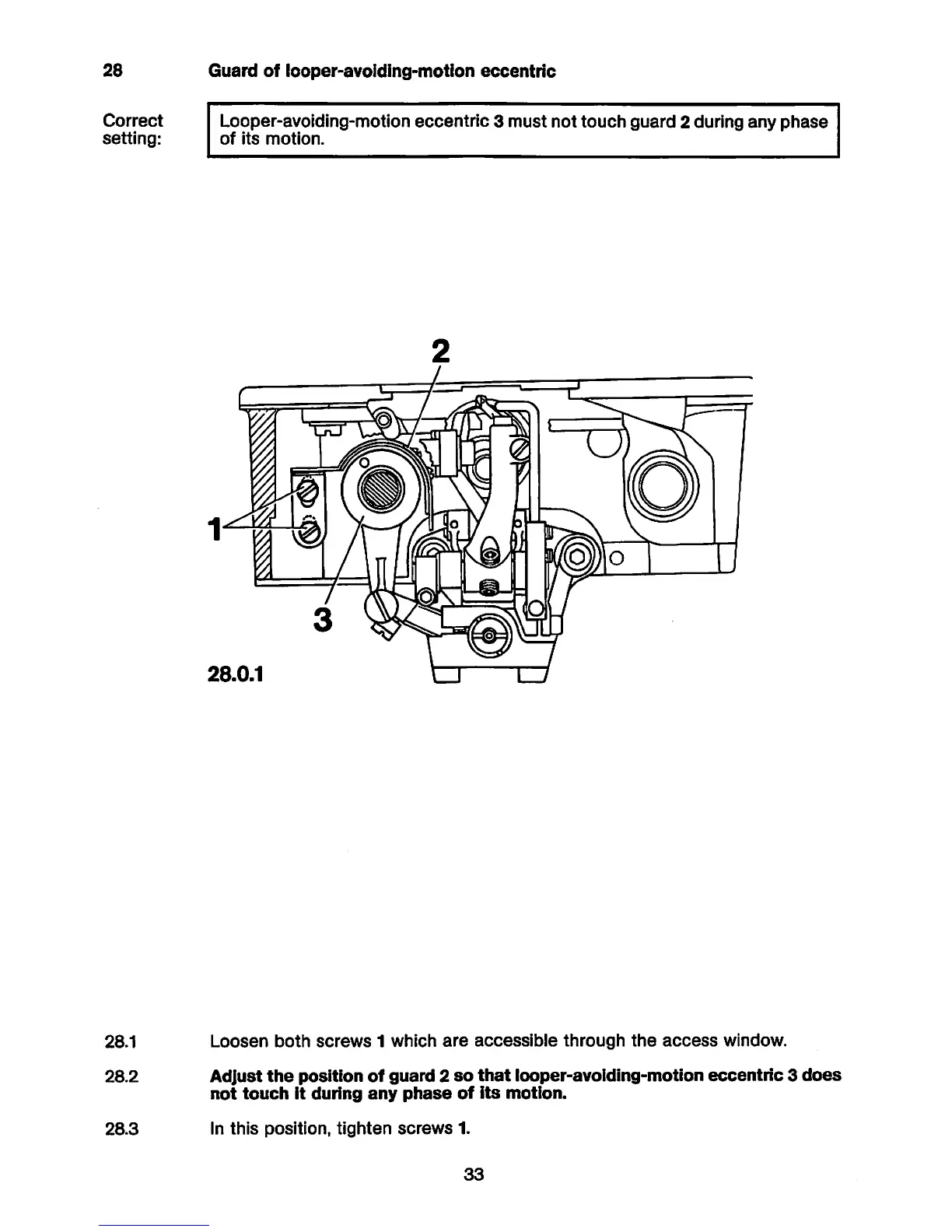

Guard of looper-avoiding-motion eccentric
Looper-avolding-motlon eccentric 3 must not touch guard 2 during any phase
of its motion.
28.0.1
Loosen both screws 1 which are accessible through the access window.
Adjust the position of guard 2 so that looper-avoiding-motion eccentric 3 does
not touch it during any phase of its motion.
In this position, tighten screws 1.
33
