Pfaff 5483 - Front Needle Guard

30
30.1
Correct
setting:
Front needle guard
(not standard on all machines)
Vertical adjustment
When the point of the advancing looper Is opposite the center line of the
needle, the top edge of front needle guard 3 must be In line with the bottom
edge of the looper point.

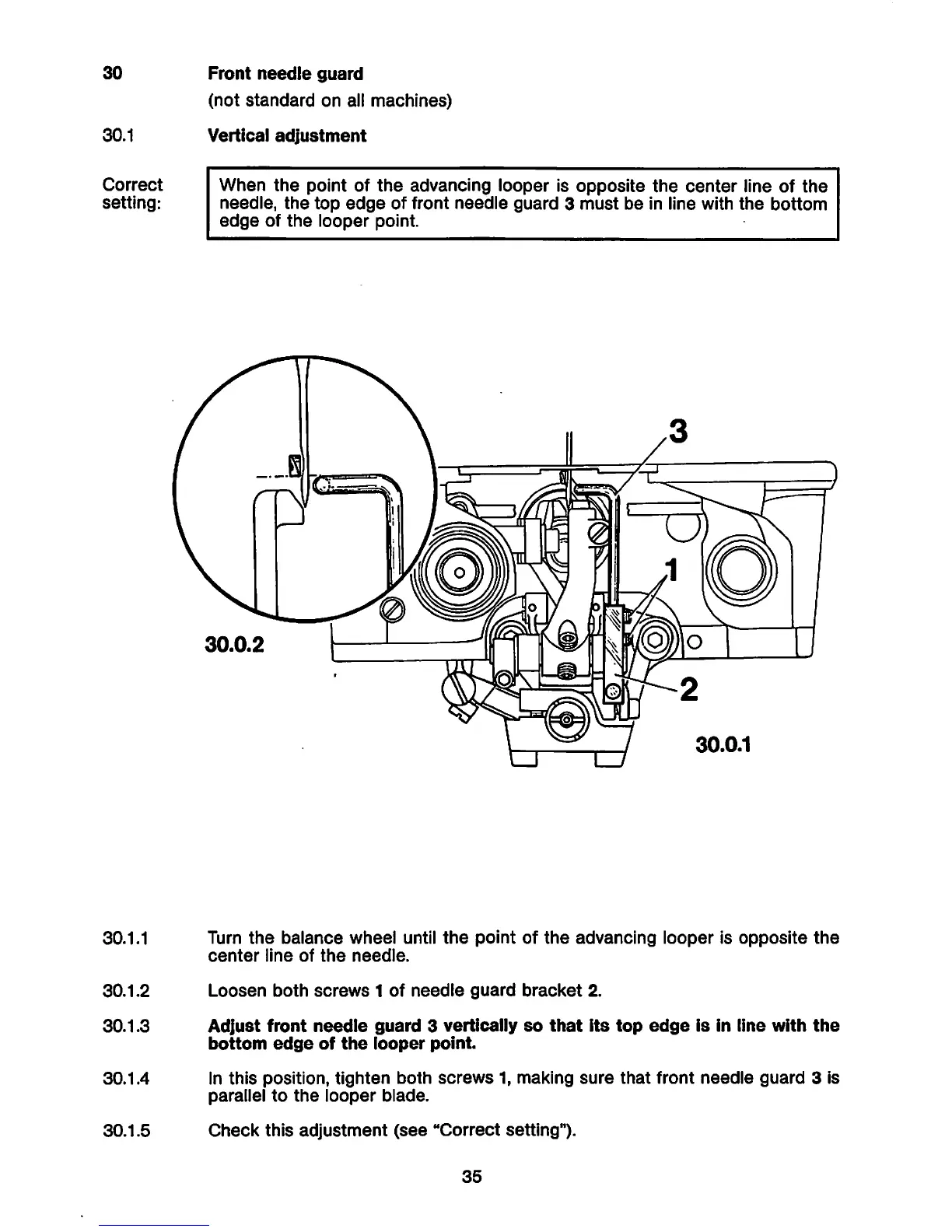

30.0.2
0); O
30.0.1
30.1.1 Turn the balance wheel until the point of the advancing looper Is opposite the
center line of the needle.
30.1.2 Loosen both screws 1 of needle guard bracket 2.
30.1.3 Adjust front needle guard 3 vertically so that its top edge is in line with the
bottom edge of the looper point.
30.1.4 In this position, tighten both screws 1, making sure that front needle guard 3 Is
parallel to the looper blade.
30.1.5 Check this adjustment (see "Correct setting").
35
