Pfaff 5483 - 35 Feed dog height

35
Correct
setting:

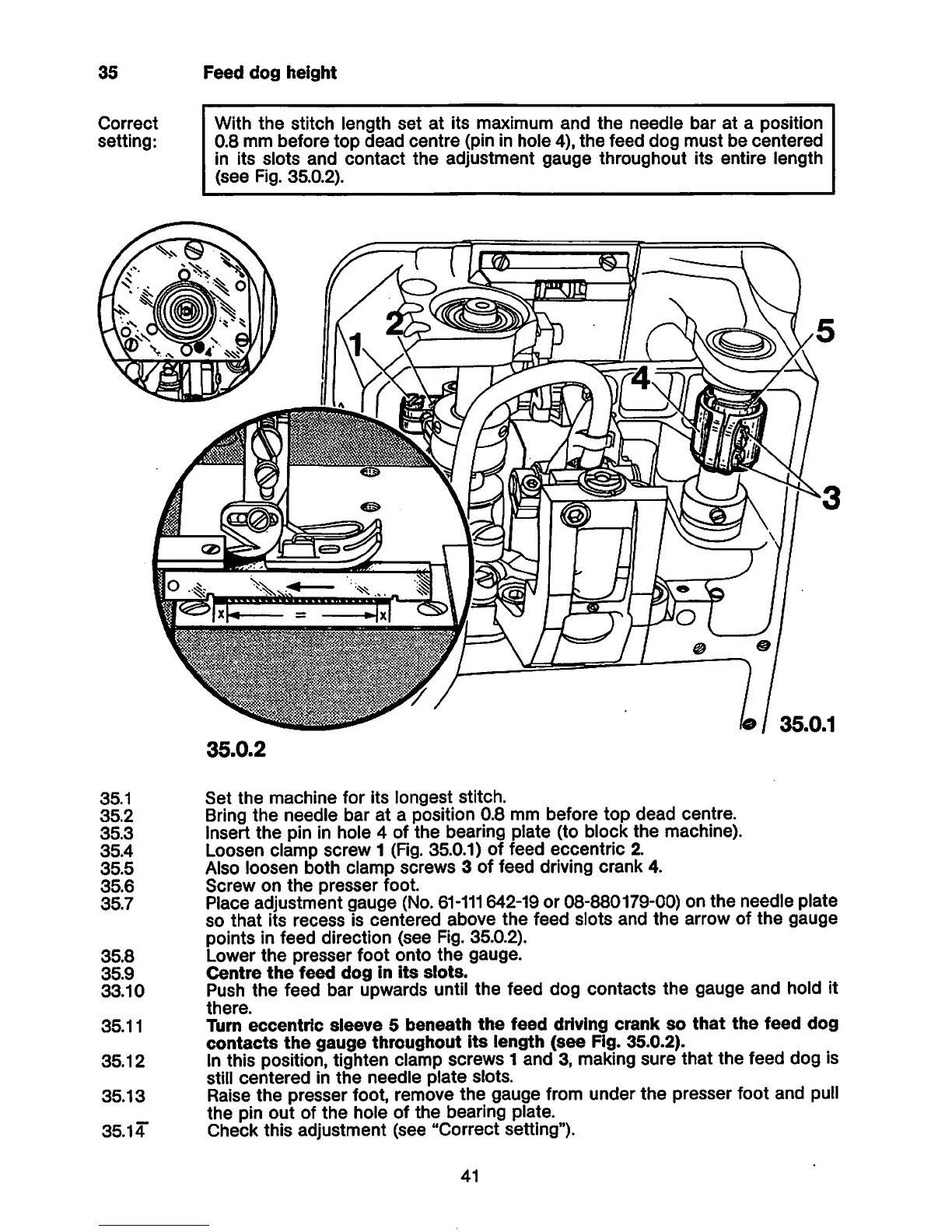

Feed dog height
With the stitch iength set at its maximum and the needie bar at a position
0.8 mm before top dead centre (pin in hole 4), the feed dog must be centered
in its slots and contact the adjustment gauge throughout its entire length
(see Rg. 35.0.2).
35.0.1
35.0.2
35.1 Set the machine for its longest stitch.
35.2 Bring the needle bar at a position 0.8 mm before top dead centre.
35.3 insert
the pin in hole 4 of the bearing plate (to block the machine).
35.4 Loosen clamp screw 1 (Rg. 35.0.1) of feed eccentric 2.
35.5 Also loosen both clamp screws 3 of feed driving crank 4.
35.6 Screw on the presser foot.
35.7 Place adjustment gauge (No. 61-111642-19 or 08-880179-00) on the needle plate
so that its recess is centered above the feed slots and the arrow of the gauge
points in feed direction (see Rg. 35.0.2).
35.8 Lower the presser foot onto the gauge.
35.9 Centre the feed dog In its slots.
33.10 Push the feed bar upwards until the feed dog contacts the gauge and hold it
there.
35.11 Turn eccentric sleeve 5 beneath the feed driving crank so that the feed dog
contacts the gauge throughout Its length (see Fig. 35.0.2).
35.12 in this position, tighten clamp screws 1 and 3, making sure that the feed dog is
still centered in the needie plate slots.
35.13 Raise the presser foot, remove the gauge from under the presser foot and pull
_ the pin out of the hole of the bearing plate.
35.14 Check this adjustment (see "Correct setting").
