Pfaff 5483 - Knee Lever Stroke Limitation

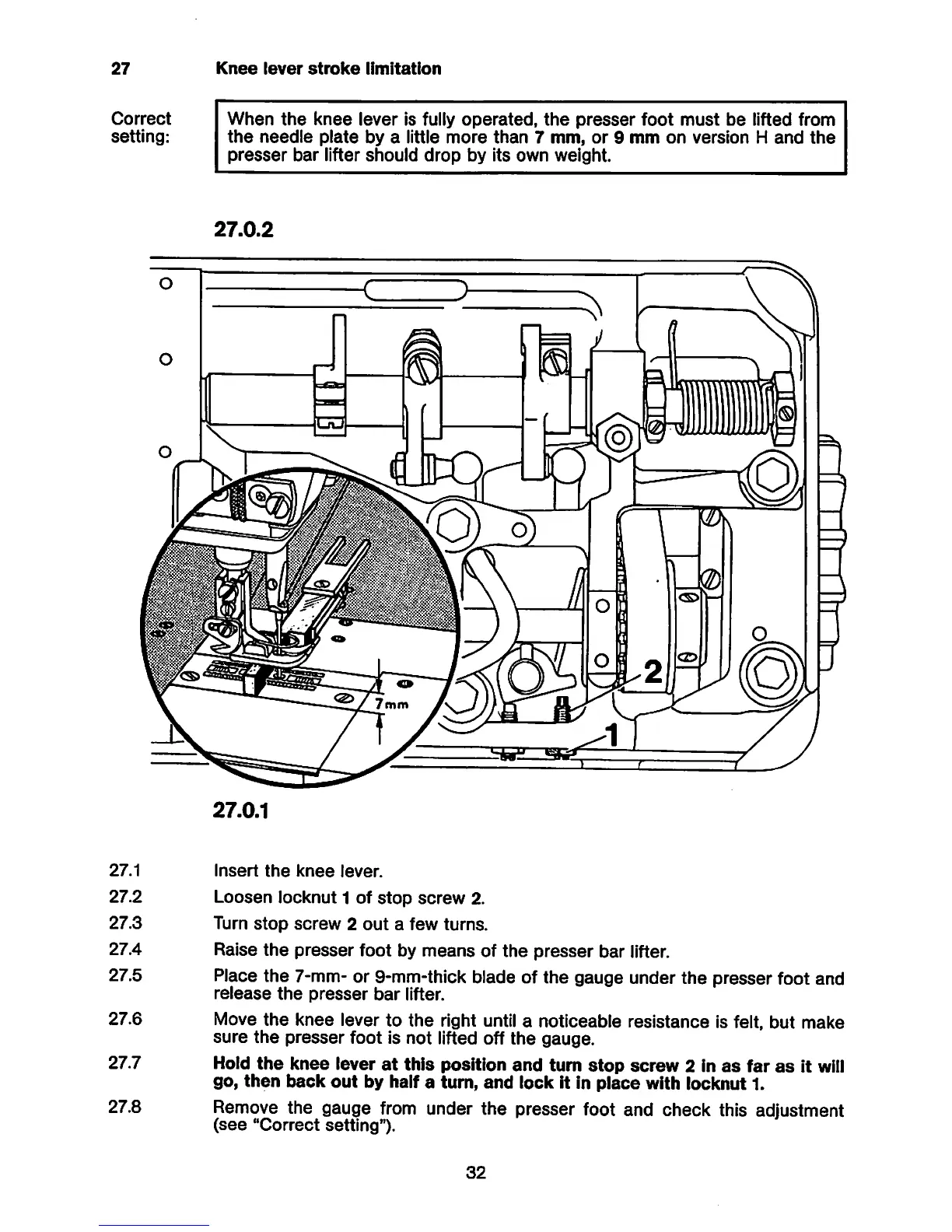

27 Knee lever stroke Ifmitation
Correct When the knee lever Is fully operated, the presser foot must be lifted from
setting: the needle plate by a little more than 7 mm, or 9 mm on version H and the
presser bar lifter should drop by Its own weight.
27.0.2
©
0
27.0.1
27.1 Insert the knee lever.
27.2 Loosen locknut 1 of stop screw 2.
27.3 Turn stop screw 2 out a few turns.
27.4 Raise the presser foot by means of the presser bar lifter.
27.5 Place the 7-mm- or 9-mm-thlck blade of the gauge under the presser foot and
release the presser bar lifter.
27.6 Move the knee lever to the right until a noticeable resistance Is felt, but make
sure the presser foot Is not lifted off the gauge.
27.7 Hold
the knee lever at this position and turn stop screw 2 in as far as it will
go,
then back out by half a turn, and lock it in place with locknut 1.
27.8 Remove the gauge from under the presser foot and check this adjustment
(see "Correct setting").
32
