Pfaff 5483 - Take-up lever

16
Correct
setting;

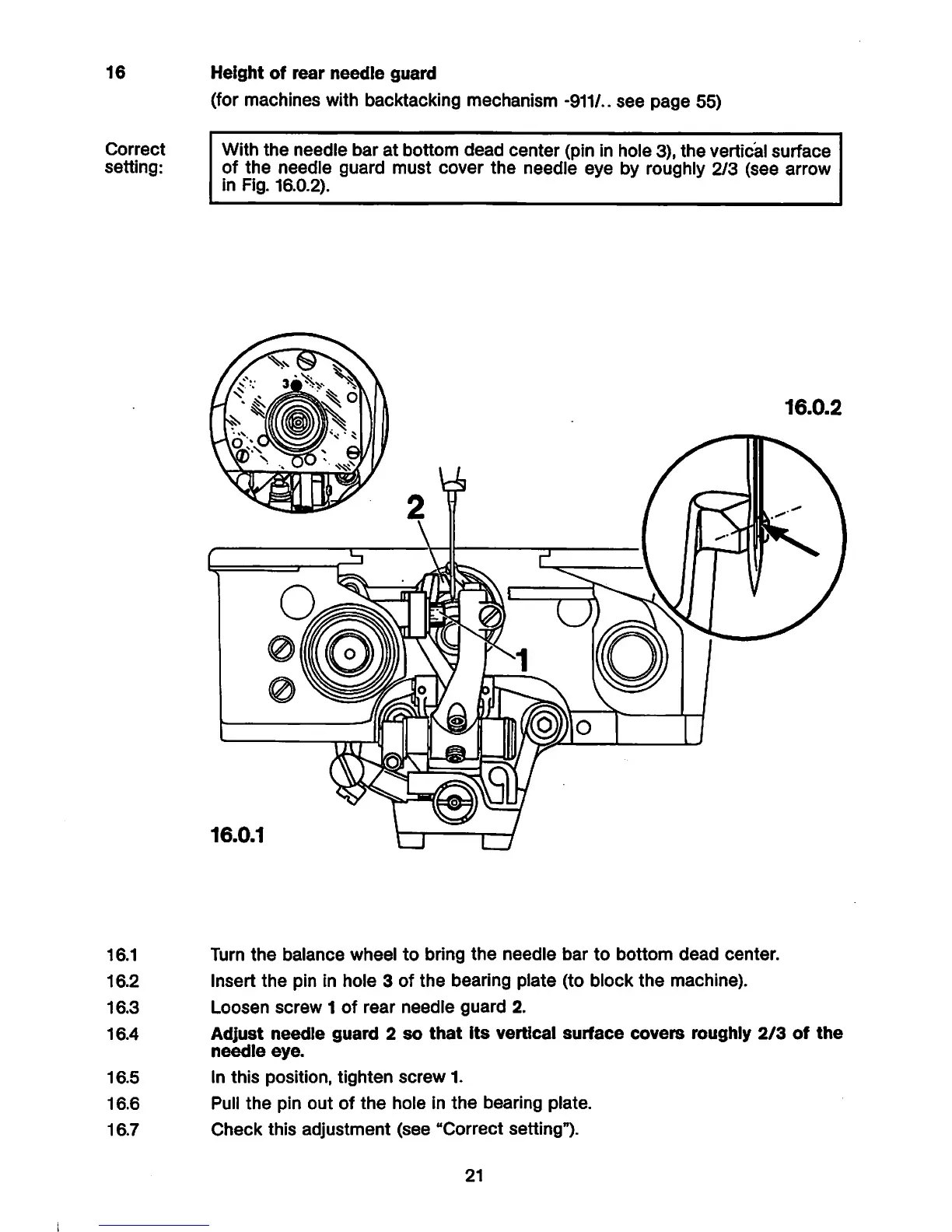

Height of rear needle guard
(for machines with backtacking mechanism -911/.. see page 55)
With
the needle bar at bottom dead center (pin in hole 3), the vertical surface
of the needle guard must cover the needle eye by roughly 2/3 (see arrow
in Fig. 16.0.2).
16.0.2
16.0.1
16.1 Turn the balance wheel to bring the needle bar to bottom dead center.
16.2 Insert the pin in hole 3 of the bearing plate (to block the machine).
16.3 Loosen screw 1 of rear needle guard 2.
16.4 Adjust needle guard 2 so that Its vertical surface covers roughly 2/3 of the
needle eye.
16.5 In this position, tighten screw 1.
16.6 Pull the pin out of the hole in the bearing plate.
16.7 Check this adjustment (see "Correct setting").
21
