Pfaff 5483 Service Manual
5
of 1
of 1 rating
60 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

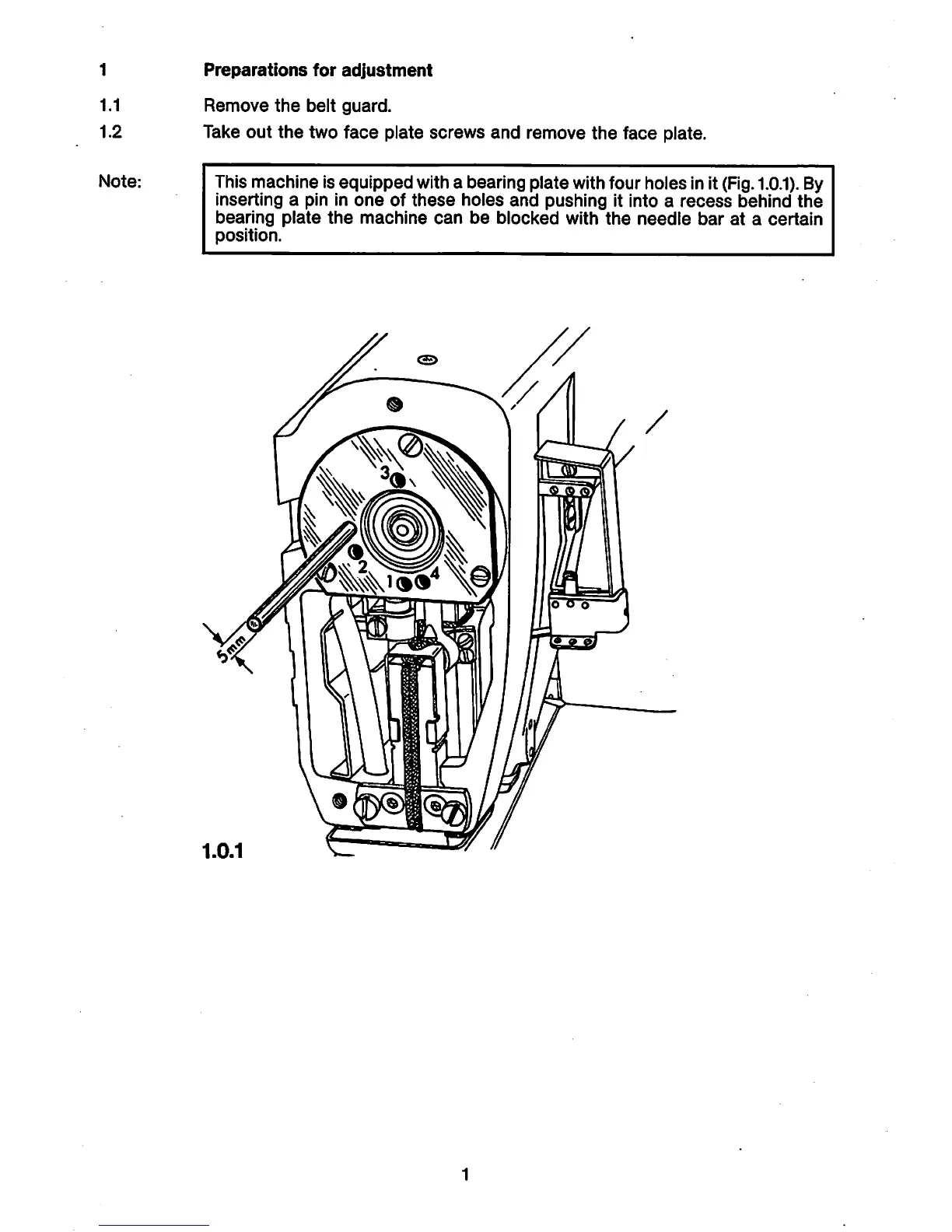

1
Preparations
for
adjustment
1.1
Remove
the
belt
guard.
1.2
Take
out
the
two
face
plate
screws
and
remove
the
face
plate.
Note:
This
machine
Is
equipped
with
a
bearing
plate
with
four
holes
In
It
(Fig.
1.0.1).
By
Inserting
a
pin
In
one
of
these
holes
and
pushing
It
Into
a
recess
behind
the
bearing
plate
the
machine
can
be
blocked
with
the
needle
bar
at
a
certain
position.
P
1.0.1
From the library of: Superior Sewing Machine & Supply LLC
2
4
Table of Contents
Preparations for Adjustment
3
Position of Needle in Needie Hole
4
Preliminary Adjustment of Needle Bar Height
6
Zeroing the Bottom Feed
7
Feed Driving Motion
11
Feed Lifting Motion
12
Feed Dog Height
13
Stitch Condensation
14
Looper Avoiding Motion
15
Timing the Looper
16
Looper Height
17
Looper Angle
19
Looper-To-Needle Clearance in Sewing Direction (Preliminary Adjustment)
20
Looper-To-Needle Clearance Crosswise to Sewing Direction
21
Needle Bar Height and Looper-To-Needle Clearance (Final Adjustment)
22
Height of Rear Needle Guard
23
Clearance between Rear Needle Guard and Needle
24
Take-Up Lever
25
Needle Thread Regulator
26
Adjustable Thread Guide
27
Primary Looper Thread Regulator
28
Secondary Looper Thread Regulator
29
Looper Thread Puller
30
Clearance between Presser Foot and Needle Plate
31
Knee Lever Rest Position
32
Knee Lever Play
33
Knee Lever Stroke Limitation
34
Guard of Looper-Avoiding-Motion Eccentric
35
Tension Release
36
Front Needle Guard
37
Stitch Length Limitation
39
Floating Foot (No. 91-055860-91)
40
Final Worksteps
41
Appendix For Machines in Version H (Without -911/..)
42
Feed Lifting Motion
42
Feed Dog Height
43
Looper Avoiding Motion
44
Looper Height
45
Appendix For Machines with Subcl. -911/..
47
Feed Lifting Motion
47
Looper Avoiding Motion
49
Feed Dog Height
50
Looper Height
50
Backtacking Mechanism
51
Spreader Drive
52
Spreader Height
53
Spreader Motion and Spreader-To-Needle Clearance
54
Clearance between Rear Needle Guard and Needle
56
Height of Rear Needle Guard
57
