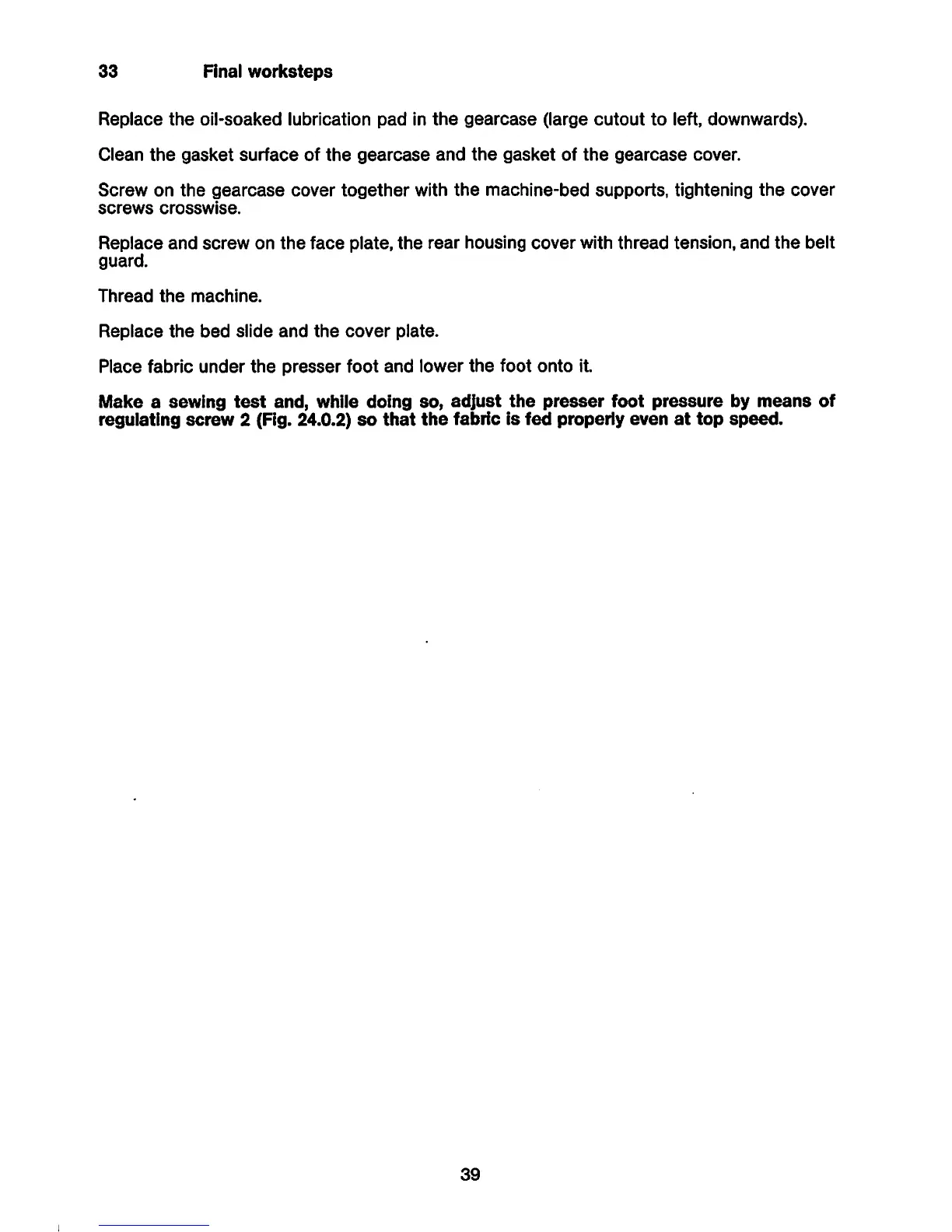

33

Final

worksteps

Replace

the

oil-soaked

lubrication

pad

in

the

gearcase

(large

cutout

to

left,

downwards).

Clean

the

gasket

surface

of

the

gearcase

and

the

gasket

of

the

gearcase

cover.

Screw

on

the

gearcase

cover

together

with

the

machine-bed

supports,

tightening

the

cover

screws

crosswise.

Replace

and

screw

on

the

face

plate,

the

rear

housing

cover

with

thread

tension,

and

the

belt

guard.

Thread

the

machine.

Replace

the

bed

slide

and

the

cover

plate.

Place

fabric

under

the

presser

foot

and

lower

the

foot

onto

it.

Make

a

sewing

test

and,

while

doing

so,

adjust

the

presser

foot

pressure

by

means

of

regulating

screw

2 (Fig. 24.0.2)

so

that

the

fabric is

fed

properly

even

at

top

speed.

39
