Pfaff 5483 - Stitch Length Limitation

31
31.1
31.0.1
31.1.1
31.1.2
31.1.3
31.1.4
31.2
31.0.2
31.2.1
31.2.2
31.2.3

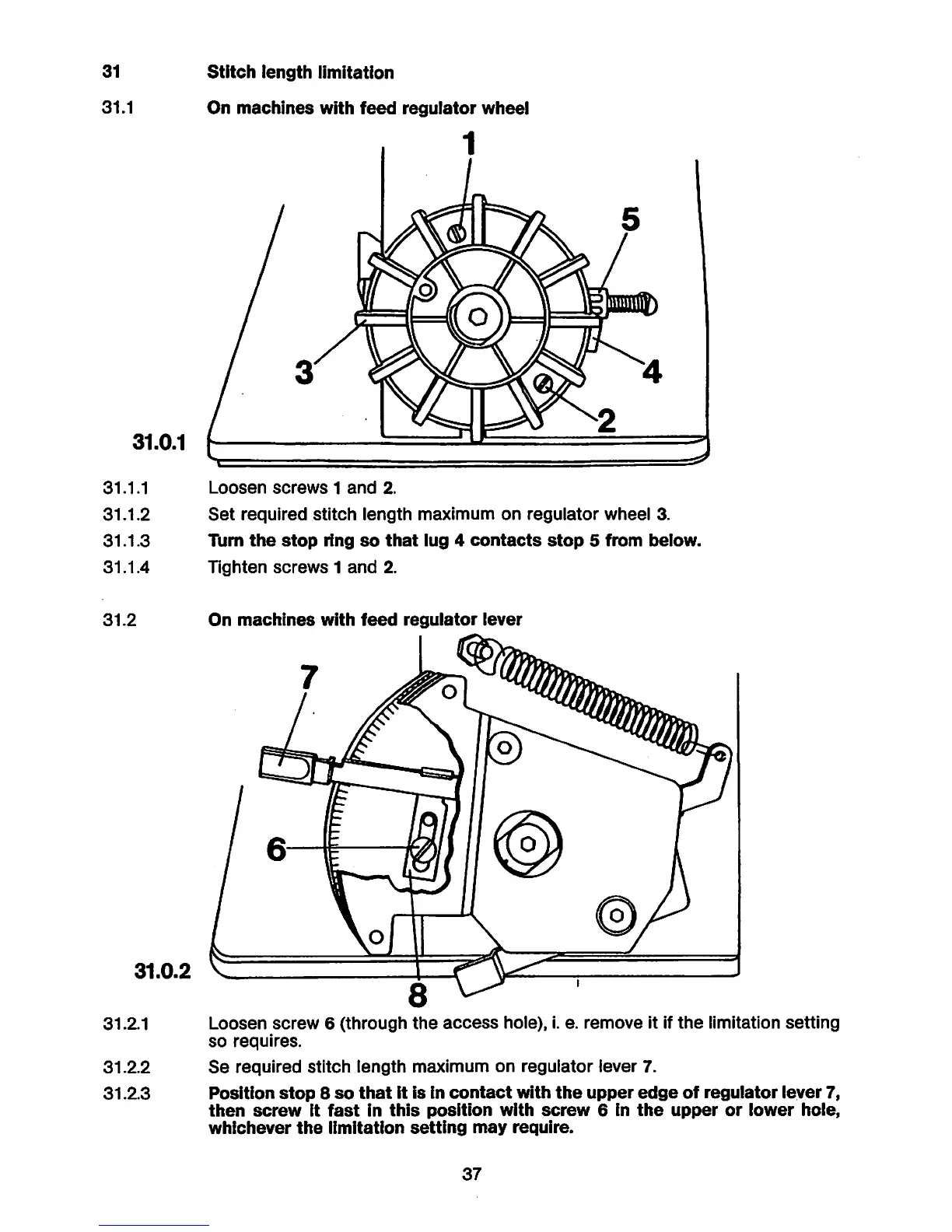

Stitch length limitation
On machines with feed regulator wheel
Loosen screws 1 and 2.
Set required stitch length maximum on regulator wheel 3.
Turn the stop ring so that lug 4 contacts stop 5 from below.
Tighten screws 1 and 2.
On machines with feed regulator lever
Loosen screw 6 (through the access hole), I. e. remove It If the limitation setting
so requires.
Se required stitch length maximum on regulator lever 7.
Position stop 8 so that it is in contact with the upper edge of regulator lever 7,
then screw it fast in this position with screw 6 in the upper or lower hole,
whichever the limitation setting may require.
37
