Pfaff 5483 - Floating foot (No. 91-055660-91)

30.2
Correct
setting:

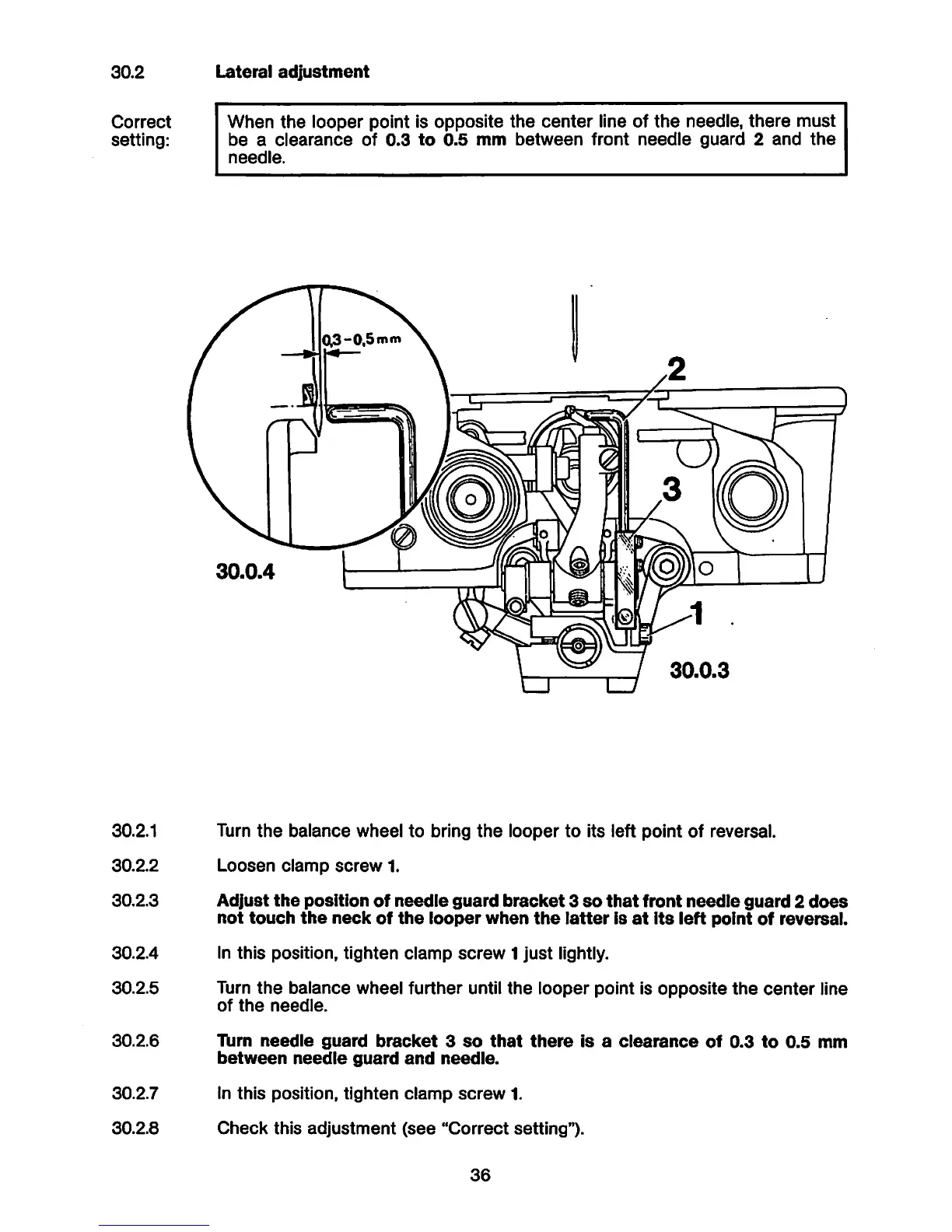

Lateral adjustment
When the looper point Is opposite the center line of the needle, there must
be a clearance of 0.3 to 0.5 mm between front needle guard 2 and the
needle.
30.0.4
30.0.3
30.2.1 Turn the balance wheel to bring the looper to Its left point of reversal.
30.2.2 Loosen clamp screw 1.
30.2.3 Adjust the position of needle guard bracket 3 so that front needle guard 2 does
not touch the neck of the looper when the latter Is at Its left point of reversal.
30.2.4 In this position, tighten clamp screw 1 just lightly.
30.2.5 Turn the balance wheel further until the looper point is opposite the center line
of the needle.
30.2.6 Ibrn needle guard bracket 3 so that there is a clearance of 0.3 to 0.5 mm
between needle guard and needle.
30.2.7 In this position, tighten clamp screw 1.
30.2.8 Check this adjustment (see "Correct setting").
36
