Pfaff 5483 - Floating Foot (No. 91-055860-91)

32
Correct
setting:

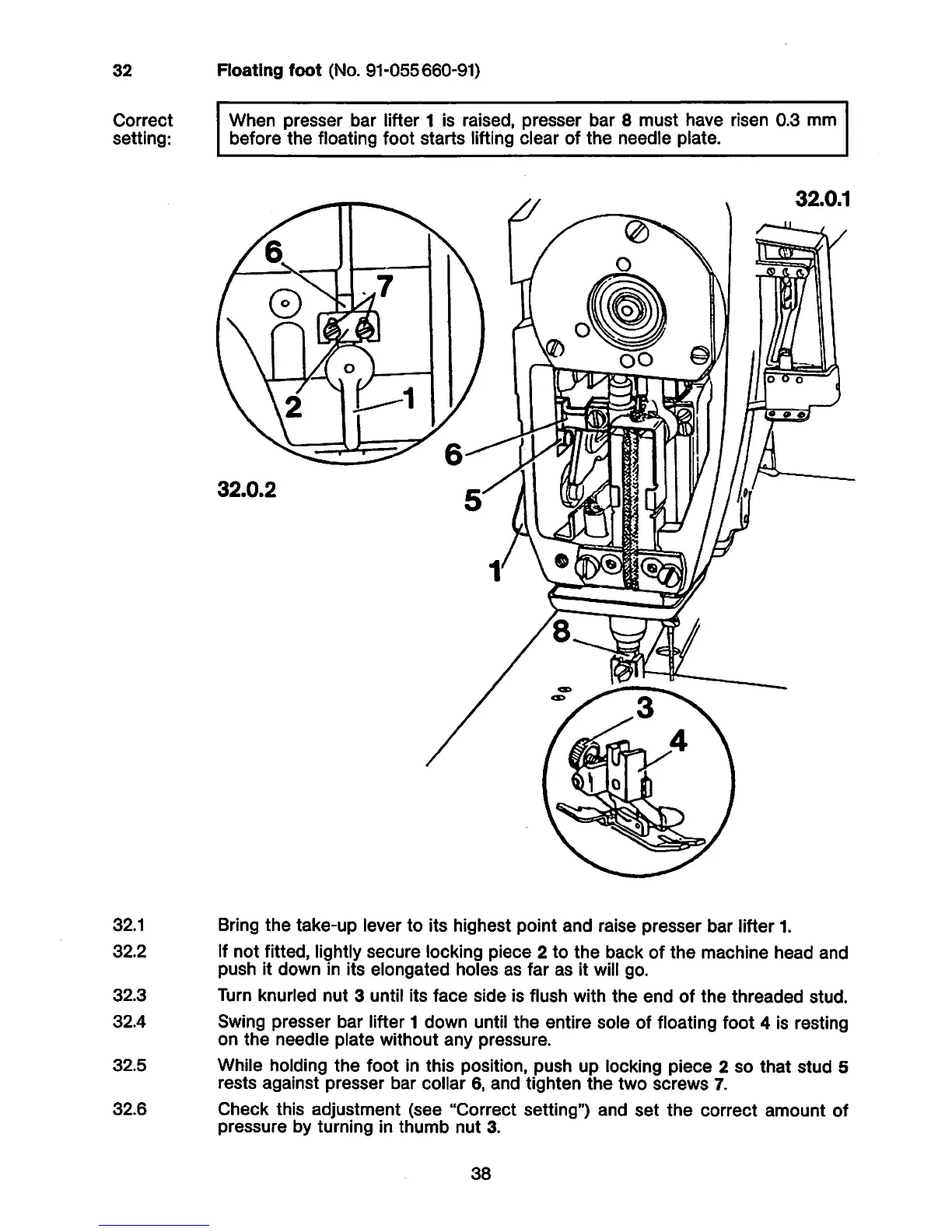

Floating foot (No. 91-055660-91)
When presser bar lifter 1 Is raised, presser bar 8 must have risen 0.3 mm
before the floating foot starts lifting clear of the needle plate.
32.0.1
Q)
r
32.0.2
[oh/
32.1 Bring the take-up lever to Its highest point and raise presser bar lifter 1.
32.2 If not fitted, lightly secure locking piece 2 to the back of the machine head and
push It down In Its elongated holes as far as It will go.
32.3 Turn knurled nut 3 until Its face side Is flush with the end of the threaded stud.
32.4 Swing presser bar lifter 1 down until the entire sole of floating foot 4 Is resting
on the needle plate without any pressure.
32.5 While holding the foot In this position, push up locking piece 2 so that stud 5
rests against presser bar collar 6, and tighten the two screws 7.
32.6 Check this adjustment (see "Correct setting") and set the correct amount of
pressure by turning In thumb nut 3.
38
