Pfaff 5483 Service Manual

Correct
setting:

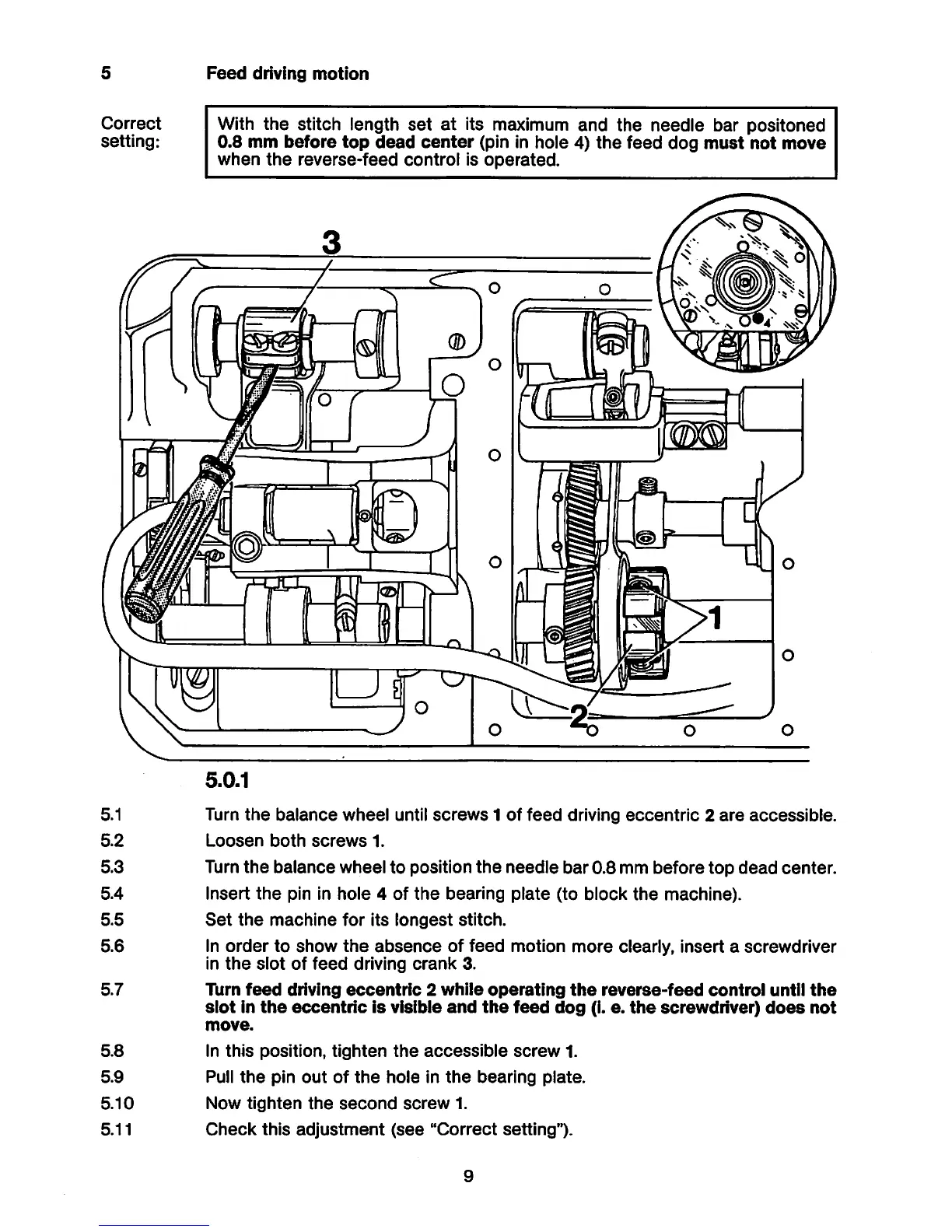

Feed driving motion
With the stitch length set at its maximum and the needle bar positoned
0.8 mm before top dead center (pin in hole 4) the feed dog must not move
when the reverse-feed control is operated.
5.0.1
5.1 Turn the balance wheel until screws 1 of feed driving eccentric 2 are accessible.
5.2 Loosen both screws 1.
5.3 Turn the balance wheel to position the needle bar 0.8 mm before top dead center.
5.4 Insert the pin in hole 4 of the bearing plate (to block the machine).
5.5 Set the machine for its longest stitch.
5.6 In order to show the absence of feed motion more clearly, insert a screwdriver
in the slot of feed driving crank 3.
5.7 Turn feed driving eccentric 2 while operating the reverse-feed control until the
slot In the eccentric Is visible and the feed dog (I. e. the screwdriver) does not
move.
5.8 In this position, tighten the accessible screw 1.
5.9 Pull the pin out of the hole in the bearing plate.
5.10 Now tighten the second screw 1.
5.11 Check this adjustment (see "Correct setting").
9
