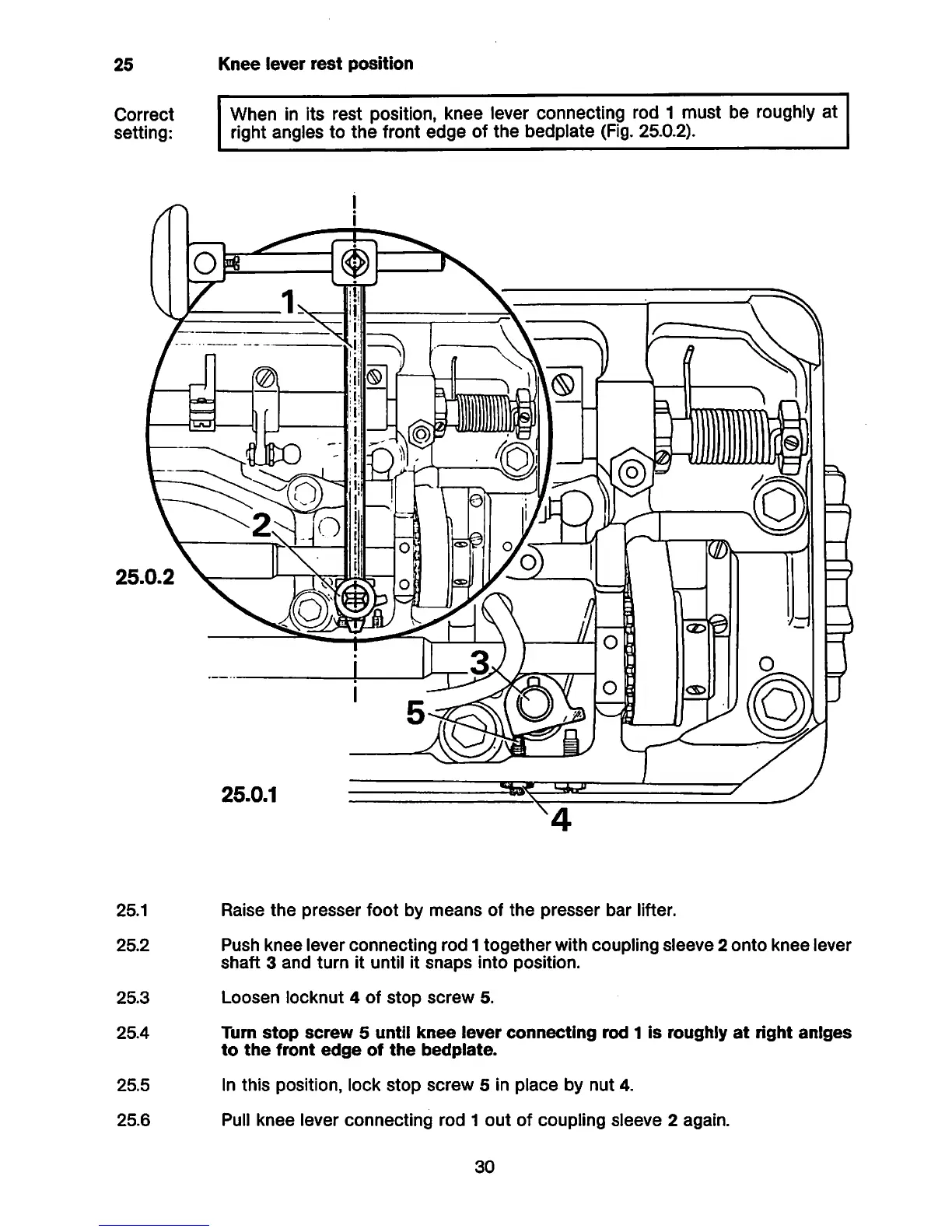

Pfaff 5483 - Knee Lever Rest Position

25
Correct
setting:
25.0.2
Knee lever rest position
When In its rest position, knee lever connecting rod 1 must be roughly at
right angles to the front edge of the bedplate (Fig. 25.0.2).
CD I
m
25.0.1
25.1 Raise the presser foot by means of the presser bar lifter.
25.2 Push knee lever connecting rod 1 together with coupling sleeve 2 onto knee lever
shaft 3 and turn it until it snaps into position.
25.3 Loosen locknut 4 of stop screw 5.
25.4 Turn stop screw 5 until knee lever connecting rod 1 Is roughly at right aniges
to the front edge of the bedplate.
25.5 In this position, lock stop screw 5 in place by nut 4.
25.6 Pull knee lever connecting rod 1 out of coupling sleeve 2 again.
30
