Pfaff 5483 - 42 Backtacking mechanism (subcl. -911;..)

42
Correct
setting:
42.1
42.2
42.3
42.4
42.5

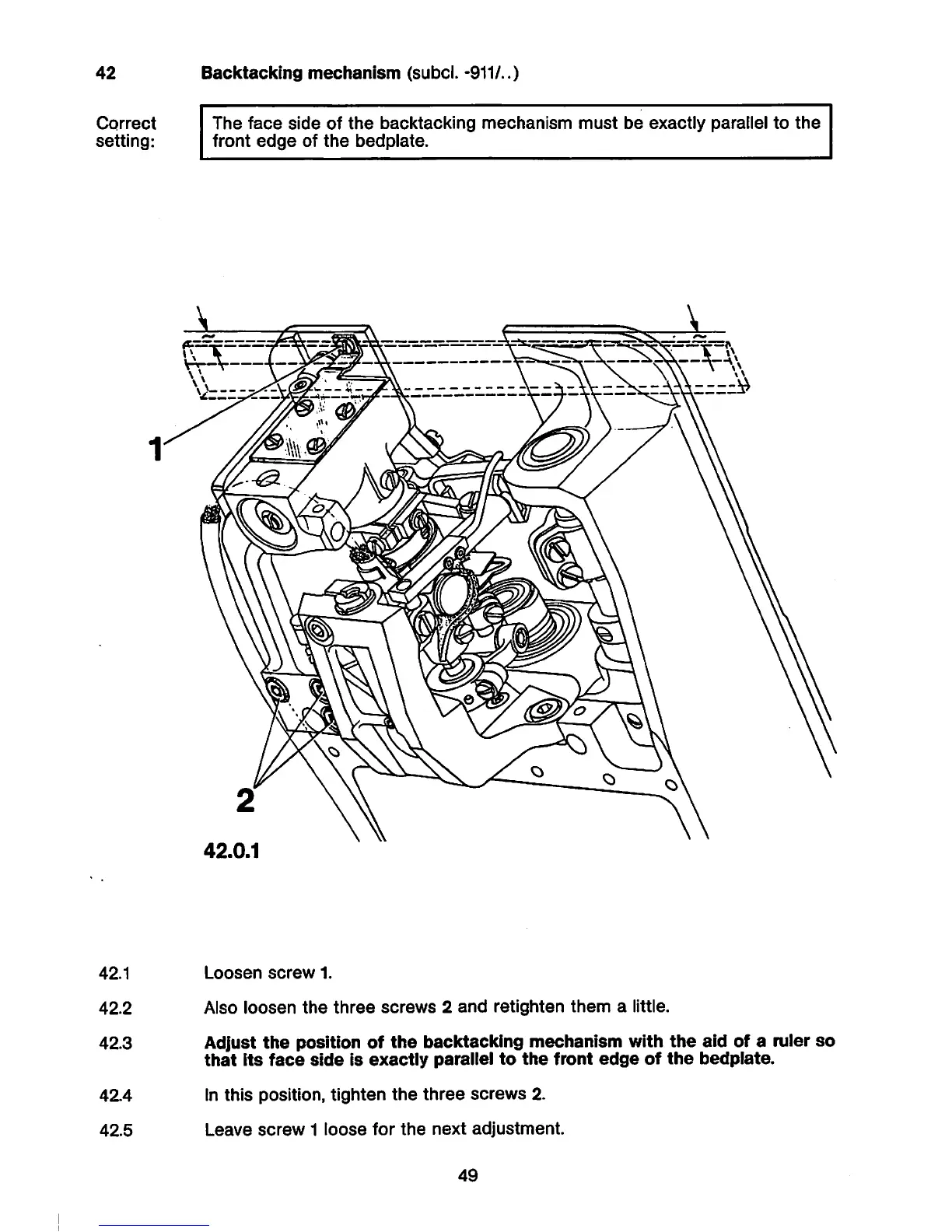

Backtacking mechanism (subcl. -911/..)
The face side of the backtacking mechanism must be exactly parallel to the
front edge of the bedplate.
42.0.1
Loosen screw 1.
Also loosen the three screws 2 and retlghten them a little.
Adjust the position of the backtacking mechanism with the aid of a ruier so
that its face side is exactiy paraiiei to the front edge of the bedpiate.
In this position, tighten the three screws 2.
Leave screw 1 loose for the next adjustment.
49
