Pfaff 5483 - 44 Spreader height (subcl. -911;..)

44
Correct
setting;
44.1
44.2
44.3
44.4

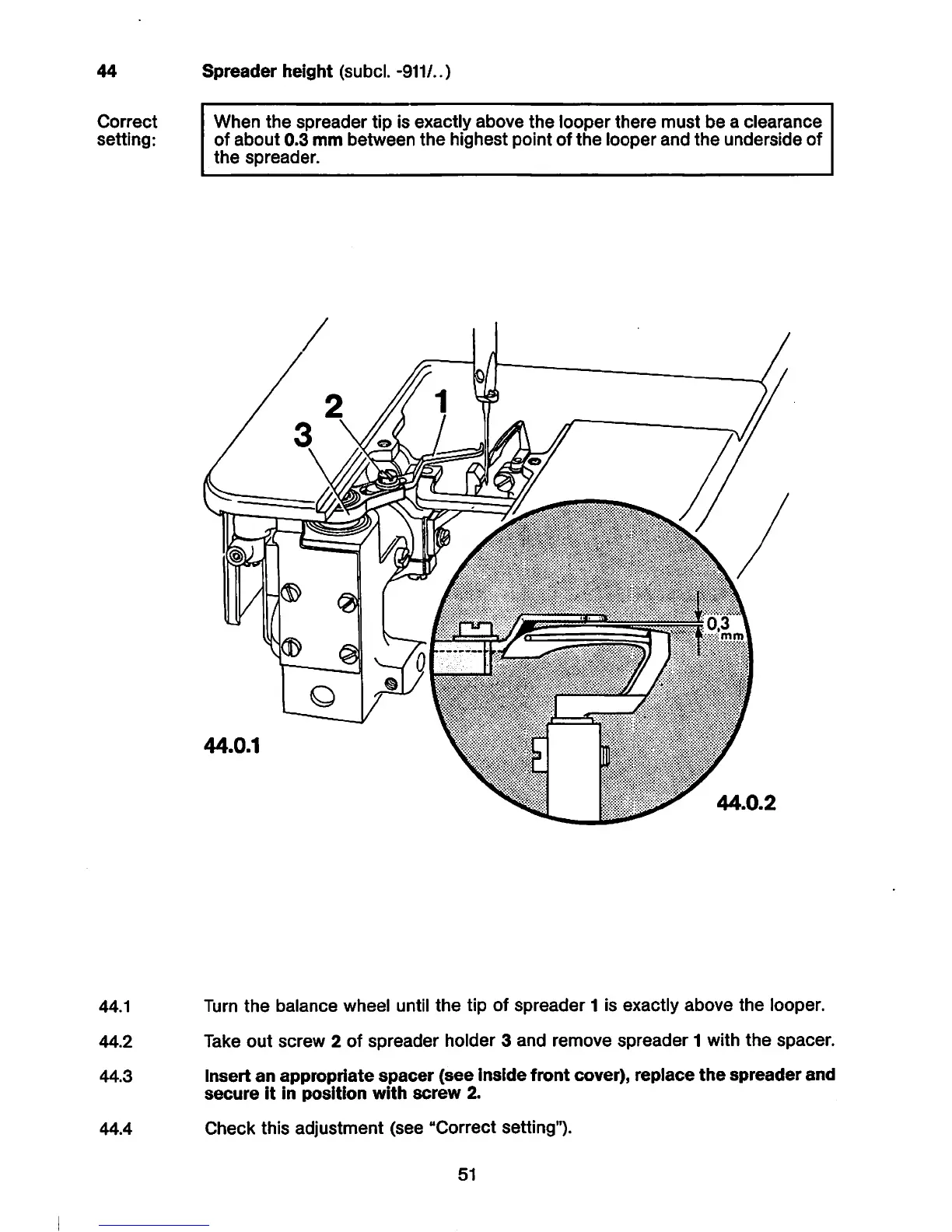

Spreader height (subci. -911/..)
When the spreader tip Is exactly above the looper there must be a clearance
of about 0.3 mm between the highest point of the looper and the underside of
the spreader.
2
44.0.1
44.0.2
Turn the balance wheel until the tip of spreader 11s exactly above the looper.
Take out screw 2 of spreader holder 3 and remove spreader 1 with the spacer.
Insert an appropriate spacer (see inside front cover), replace the spreader and
secure it in position with screw 2.
Check this adjustment (see "Correct setting").
