Pfaff 5483 - Take-Up Lever

18
Correct
setting:
18.1
18.2
18.3
18.4
18.5

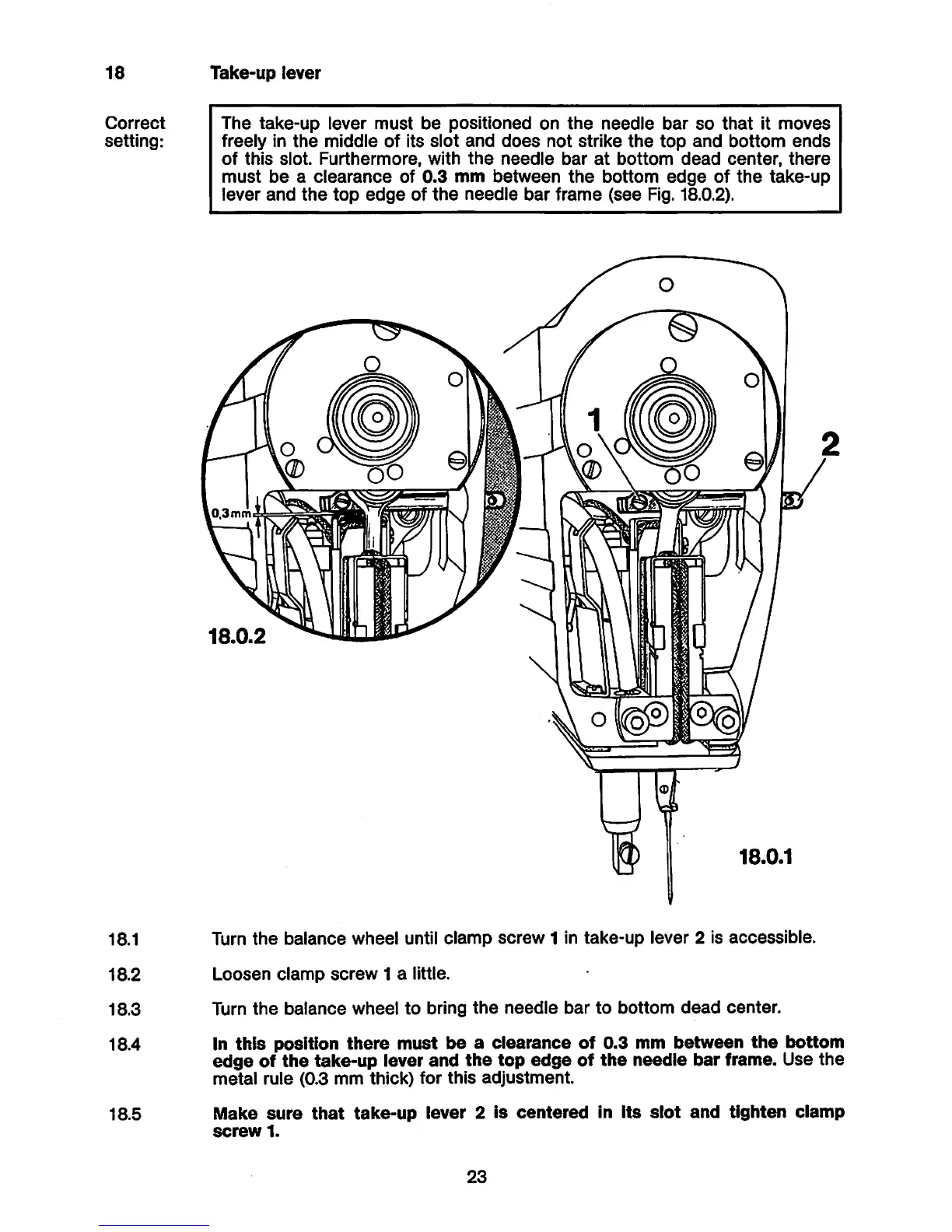

Take-up lever
The take-up lever must be positioned on the needle bar so that It moves
freely In the middle of its slot and does not strike the top and bottom ends
of this slot. Furthermore, with the needle bar at bottom dead center, there
must be a clearance of 0.3 mm between the bottom edge of the take-up
lever and the top edge of the needle bar frame (see Fig. 18.0.2).
18.0.2
18.0.1
Turn the balance wheel until clamp screw 1 in take-up lever 2 Is accessible.
Loosen clamp screw 1 a little.
Turn the balance wheel to bring the needle bar to bottom dead center.
In this position there must be a clearance of 0.3 mm between the bottom
edge of the take-up lever and the top edge of the needle bar frame. Use the
metal rule (0.3 mm thick) for this adjustment.
Make sure that take-up lever 2 is centered In Its slot and tighten clamp
screw 1.
23
