Pfaff 5483 Service Manual

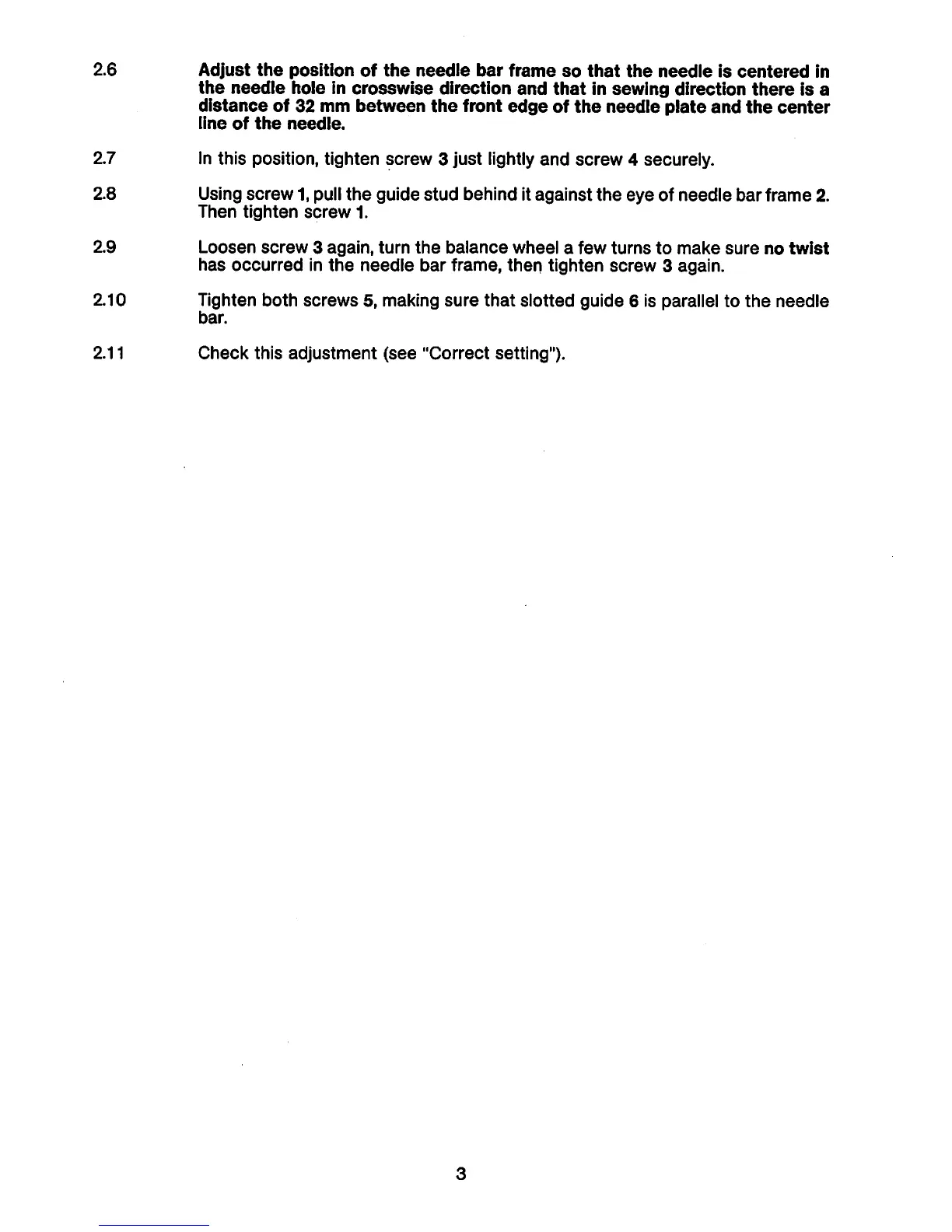

2.6 Adjust the position of the needle bar frame so that the needle Is centered In
the needle hole In crosswise direction and that In sewing direction there Is a
distance of 32 mm between the front edge of the needle plate and the center
line of the needle.
2.7 In this position, tighten screw 3 Just lightly and screw 4 securely.
2.8 Using
screw 1, pull the guide stud behind it against the eye of needle bar frame 2.
Then tighten screw 1.
2.9 Loosen screw 3 again, turn the balance wheel a few turns to make sure no twist
has occurred in the needle bar frame, then tighten screw 3 again.
2.10 Tighten
both screws 5, making sure that slotted guide 6 is parallel to the needle
bar.
2.11 Check this adjustment (see "Correct setting").
