Service functions
73

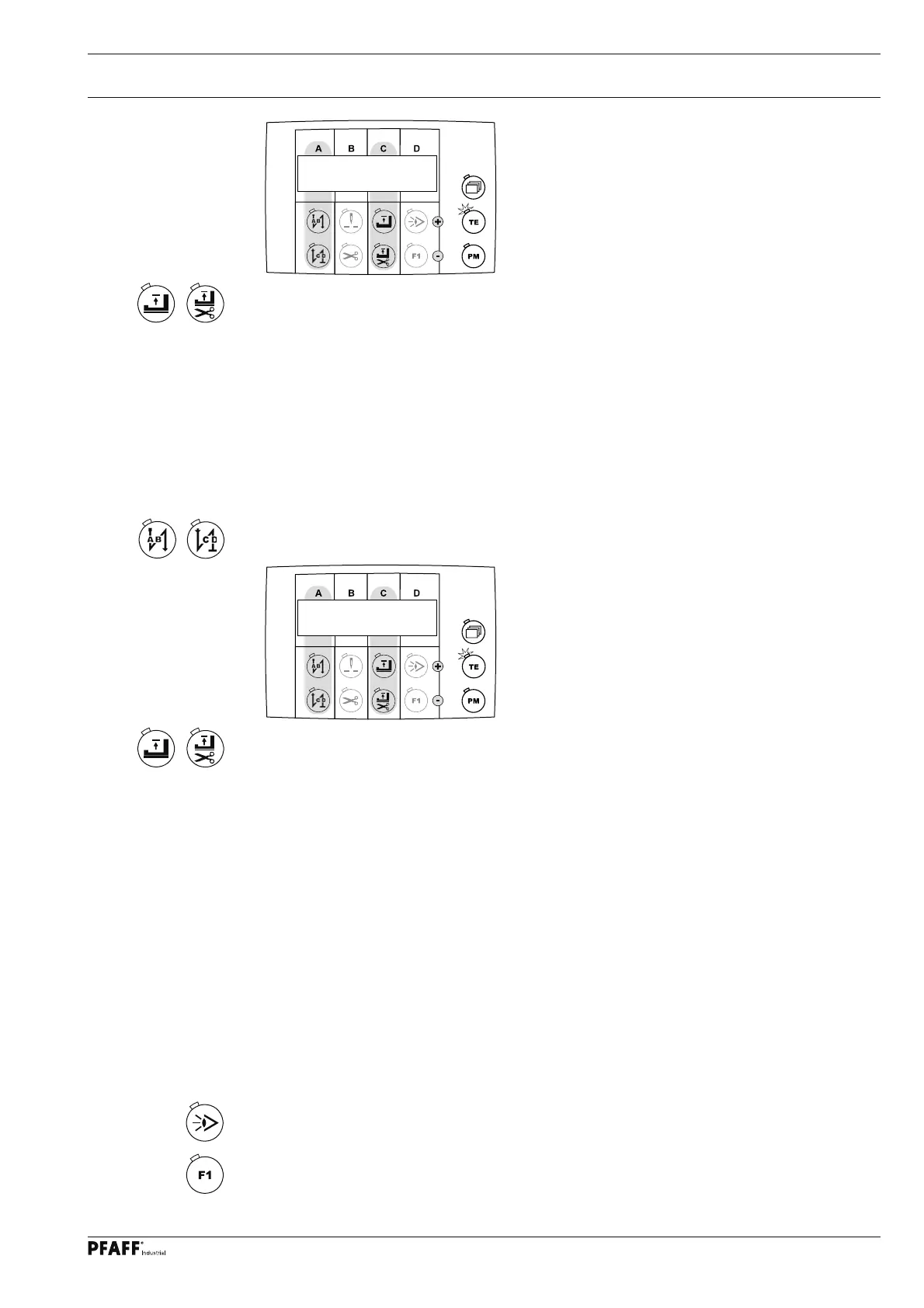

● Select the desired input with the corresponding function keys (setting range C).
The switch status of the current input is shown in setting range D.
Following inputs can be shown:
In 3: Slide sensor
In 6: Stop / start inhibitor
In 7: Stroke lift adjustment
In 8: Speed limiter
In 9: Knee switch for seam centre guide
In 11: Bobbin thread monitor
● Call up the display of the outputs with the corresponding function keys.
● Select the desired output with the corresponding function keys (setting range C).
Out 1: Motor operation
Out 3 Thread clamp
Out 4: Presser foot tacted
Out 5: Feed changeover tacted
Out 6: Stroke lift adjustment
Out 7: Edge cutter
Out 8: Thread tension release (tacted in hardware test with fi xed 50%)
Out 9: Pneumatic thread cutting
Out 11: Thread tension release (tacted in hardware test with fi xed 50%)
Out 12: Secured stitch (stitch length "0")
Out 13: Stitch length changeover
Out 14: Thread tension control
Out 15: Cleaning bobbin thread monitor
Out 16: Seam centre guide
● Switch on selected output.
● Switch off selected output.
In: 3 0
Out: 1
