Setting up and connecting the printer
103933_en_01 PHOENIX CONTACT 2-3
Inserting the
Fluid Cartridge
For safety reasons, the BLUEMARK LED is delivered with an empty fluid cartridge (“dummy
fluid cartridge”). Replace this with a BLUEMARK FLUID-CARTRIDGE (Order No.
5147421).

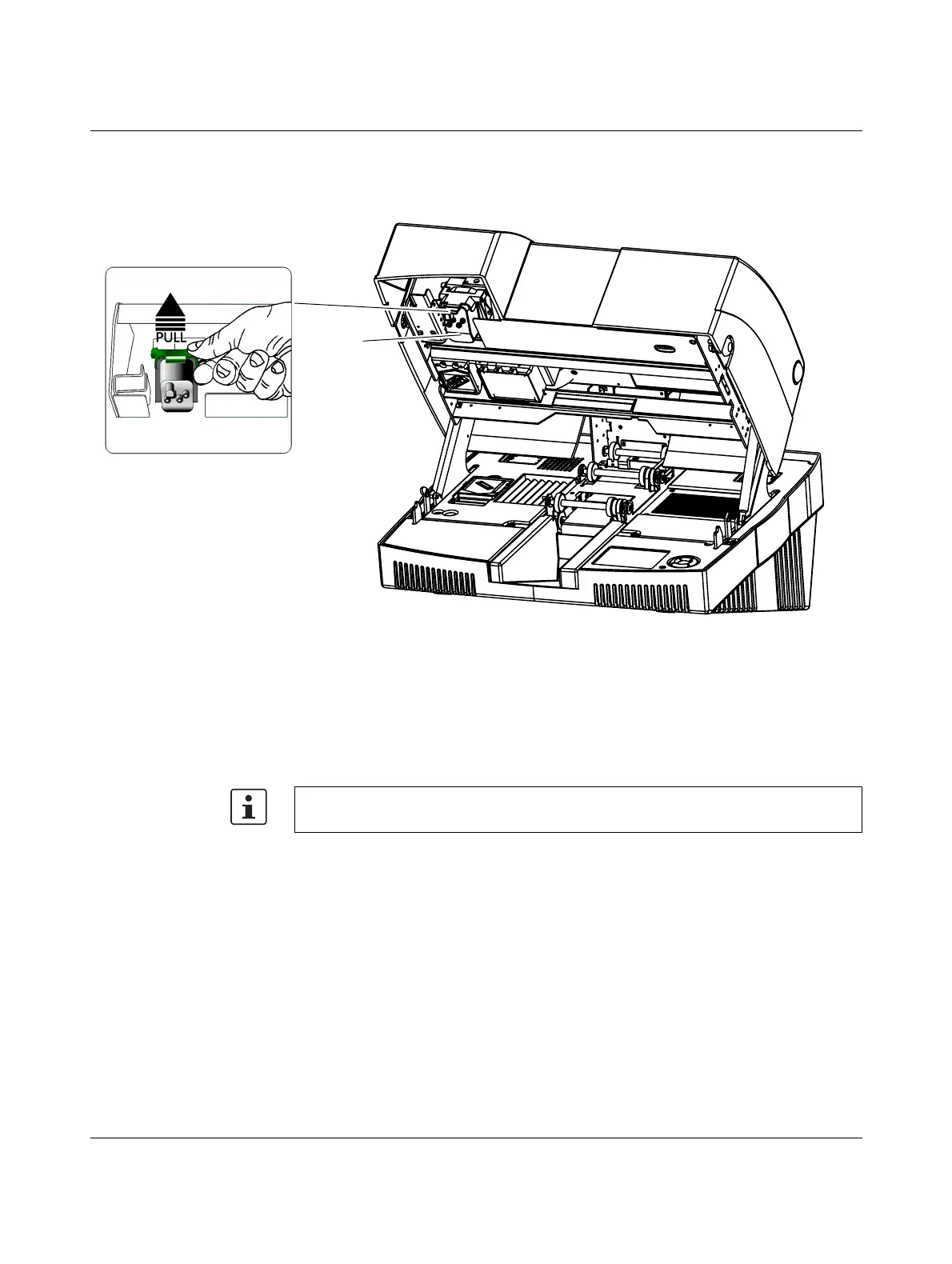

Figure 2-3 View of the Fluid Cartridge (1)
• Release the green locking latch and remove the empty Fluid Cartridge by pulling it
slightly away from and upwards out of the guide.
• Insert the new Fluid Cartridge as a reverse of the above, press it down firmly into the
diagonal guide rail until it engages with a click. Now press it upwards and lock the green
latch again until this engages with a click.
• Close the cover again.
The fluid system is filled automatically. This takes around 1 minute. The drivers must then
be installed (see "Connecting the printer" on page 2-6).
1
Retain the empty Fluid Cartridge. It is clearly marked "DUMMY". It should be inserted
before the device is shipped.
