 "Speaker Setup" settings during
Initial Setup ( p203)
Speaker Setup
Height 1 Speaker
Height 2 Speaker
1 ch
---
---
Speaker B
Zone 2 Preout Zone 2
Zone 2
7.1 ch
Zone Speaker
• Speaker Channels: 7.1 ch
• Subwoofer: 1ch
• Height 1 Speaker: ---
• Height 2 Speaker: ---
• Zone Speaker: Zone 2
• Speaker B: No
• Zone 2 Preout: Zone 2
• Bi-Amp: No
• Symmetry / All Channel Adjust / Front
Align ( p203)
Setup
To output the video and audio of
the HDMI input to ZONE 2, from
the Home screen, set "System
Setup" - "Input/Output Assign" -
"TV Out/OSD" - "Zone 2 HDMI" (
p153) to "Use".

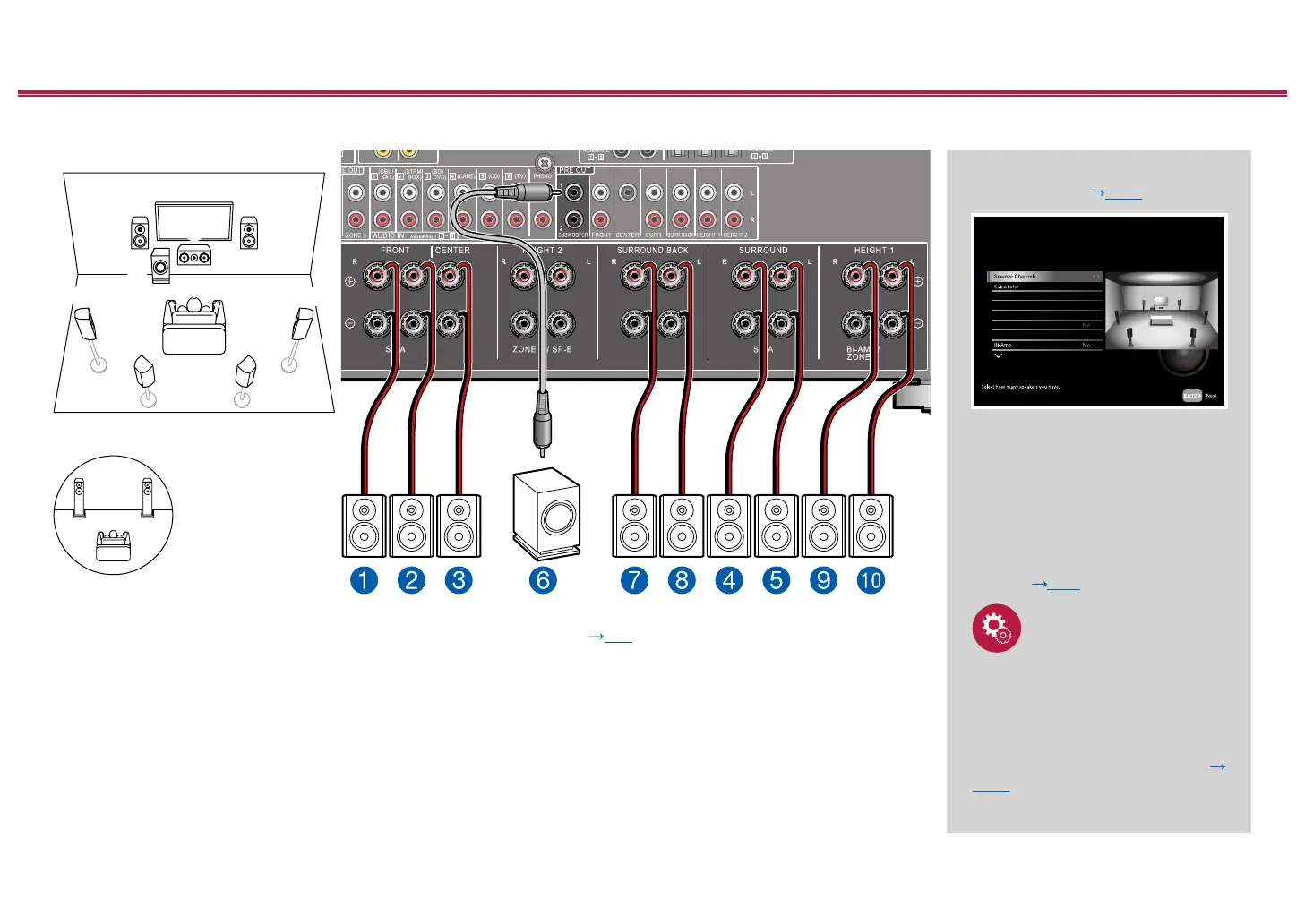

 7.1 Channel System + ZONE SPEAKER (ZONE 2)
ZONE 2

MAIN ROOM





ZONE B
(LINE OUT)
MAIN ROOM: This is a 7.1 Channel System that consists of the basic 5.1 Channel System and added surround back
speakers. For details of the speaker layout, refer to "Speaker Installation" ( p20).
ZONE 2: You can enjoy 2-ch audio in the separate room (ZONE 2) while performing playback in the main room (where
this unit is located). The same source can be played back in the main room and ZONE 2 simultaneously. Also, different
sources can be played back in both rooms.
• If you have not connected ZONE 3 speakers in another room but have only connected ZONE 2 speakers, connect the
ZONE 2 speakers to the HEIGHT 1 jacks.
