 "Speaker Setup" settings during
Initial Setup ( p203)
Speaker Setup
Height 1 Speaker
Height 2 Speaker
1 ch
---
Speaker B
Zone 2 Preout Zone 2
Zone 2/Zone 3
5.1.2 ch
Zone Speaker
Front High
• Speaker Channels: 5.1.2 ch
• Subwoofer: 1ch
• Height 1 Speaker: ---
• Height 2 Speaker: Select the type of
height speaker actually installed.
• Zone Speaker: Zone 2/Zone 3
• Speaker B: No
• Zone 2 Preout: Zone 2
• Bi-Amp: No
• Symmetry / All Channel Adjust / Front
Align ( p203)
Setup
To output the video and audio of the
HDMI input to ZONE 2, from the Home
screen, set "System Setup" - "Input/
Output Assign" - "TV Out/OSD" - "Zone
2 HDMI" (
p153) to "Use".

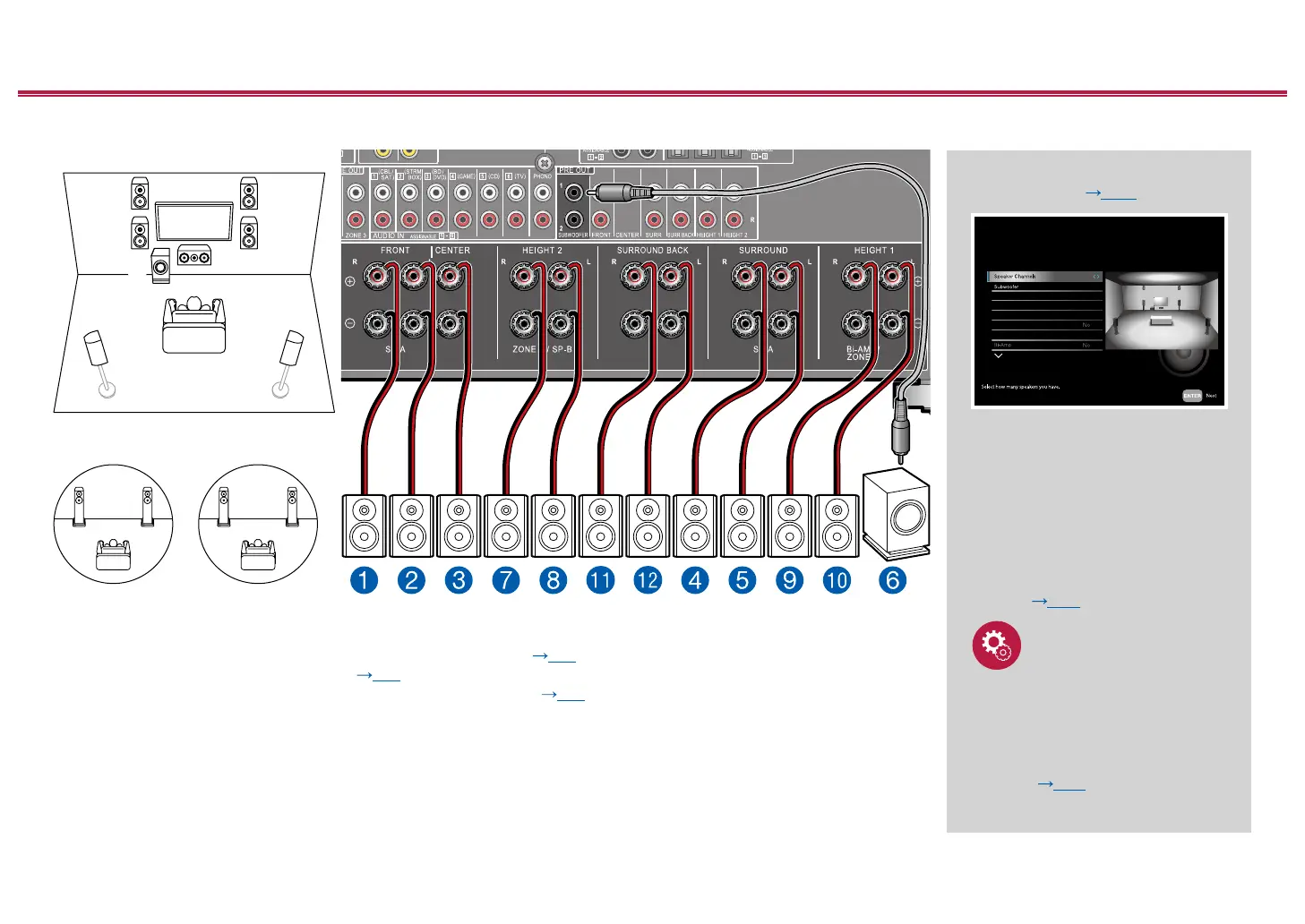

 5.1.2 Channel System + ZONE SPEAKER (ZONE 2/ZONE 3)





ZONE B
(LINE OUT)
MAIN ROOM
ZONE 2

ZONE 3

MAIN ROOM: This is a combination of the 5.1 Channel System and front high speakers. A front high speaker is a type of
height speaker. You can select only one set of height speakers from the following three types for connection.
 Front High Speakers/Rear High Speakers Installation Example ( p22)
 Ceiling Speakers Installation Example ( p23)
 Dolby Enabled Speakers (Dolby Speakers) Installation Example ( p24)
ZONE 2/ZONE 3: You can enjoy 2-ch audio in the separate room (ZONE 2/ZONE 3) while performing 5.1-ch playback in
the main room (where this unit is located). The same source can be played back in the main room and ZONE 2/ZONE 3
simultaneously. Also, different sources can be played back in both rooms.
To output audio from an externally connected AV component to ZONE 3, use an analog audio cable for connection. Note
that ZONE 3 output is not possible with the connection using a HDMI cable, digital coaxial cable, or digital optical cable.
